Lighthouse SOLAIR 3350, 5350 Gen E Operating Manual
4-12 248083387-1 Rev 10
4. Select Network Settings and choose the Use the following IP
configuration: radio button.
• Enter the IP Address: “XXX.XX.X.XX” and the Subnet Mask:
“255.255.255.0”.
• Leave the Default Gateway: blank unless the IT department
indicates one is needed. If a gateway is needed, the IT department
will provide one
• Press the OK button to save the settings. Network Settings will
display Done! See Figure 4-9.

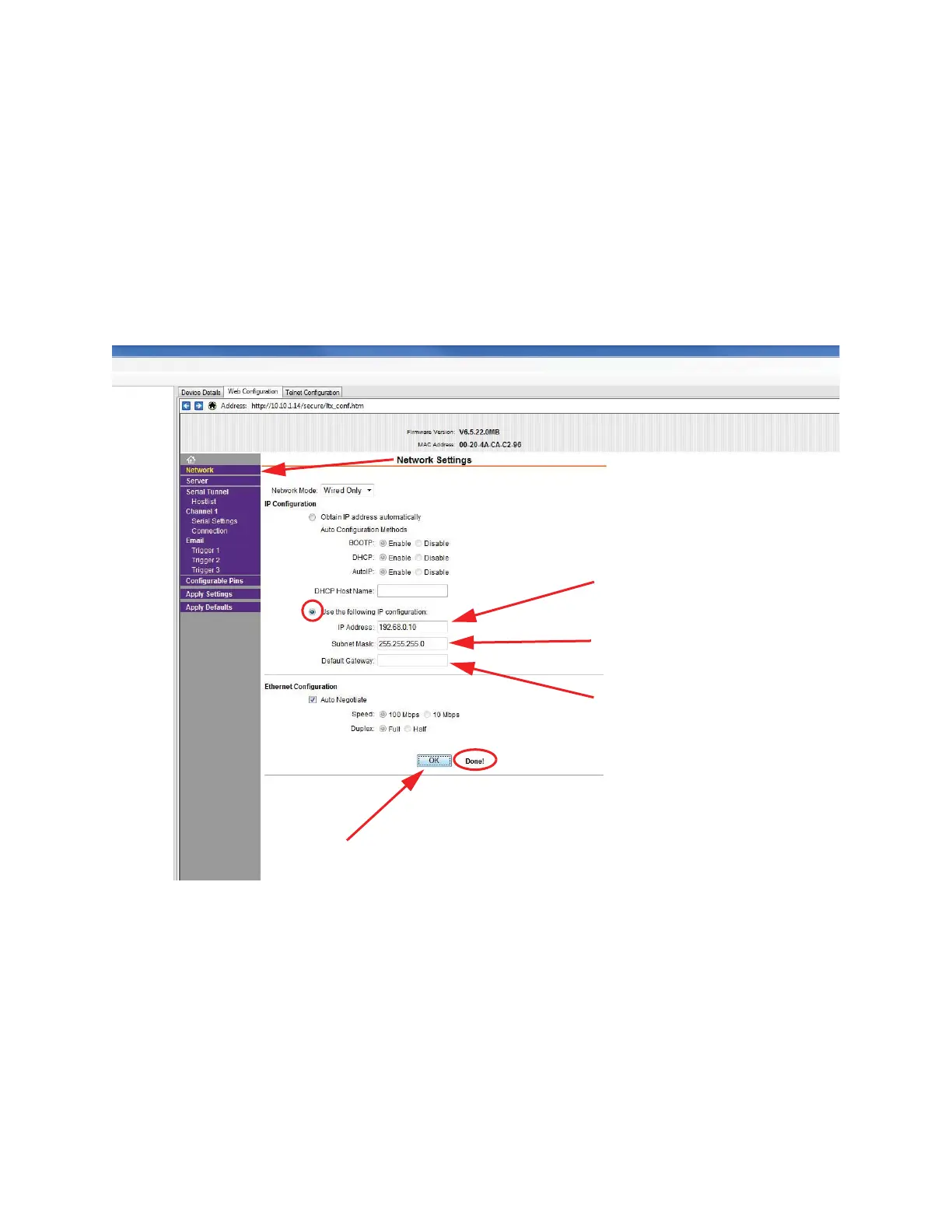

Figure 4-9 Network Settings
Note: These settings
should be the default
settings and may not need
to be changed.
5. Select Serial Settings under Channel 1.Verify that the Port
Settings are set to the following:
• Protocol: RS485 - 2 wire
• Flow Control: None
• BaudRate: 19200
• Data Bits: 8
