Operate Counter
248083387-1 Rev 10 6-33
WARNING: Be
careful to touch the
screen at the specified
locations only. If
touching the screen
elsewhere during this
process, the screen will
be incorrectly aligned.

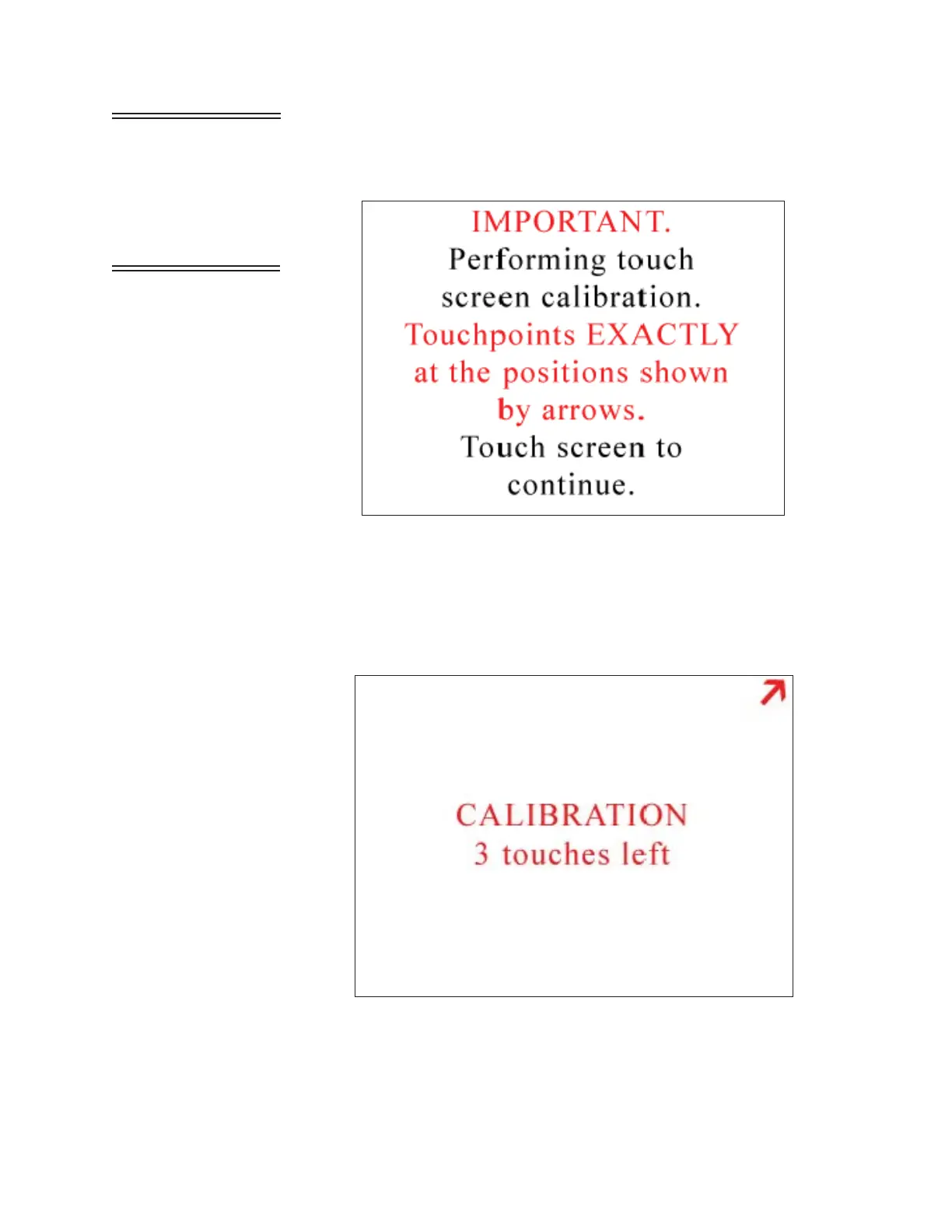

• The screen in Figure 6-42 appears. Touch anywhere on the screen
to continue calibration.
Figure 6-42 Alignment Screen 1
Note:
Using a PDA Stylus
provides higher accuracy to
the touch screen interface.
• At the next screen, touch the arrow displayed in the upper right
corner. This needs to be done a total of three times before
continuing to the next alignment. See Figure 6-43.
Figure 6-43 Alignment Screen 2
Note: If the front panel
does not respond to
stimuli, then with the unit
off, press and hold the
center of the screen.
Power unit on. Release
the screen when it beeps
and follow the instructions
on the screen.
To Next Page
