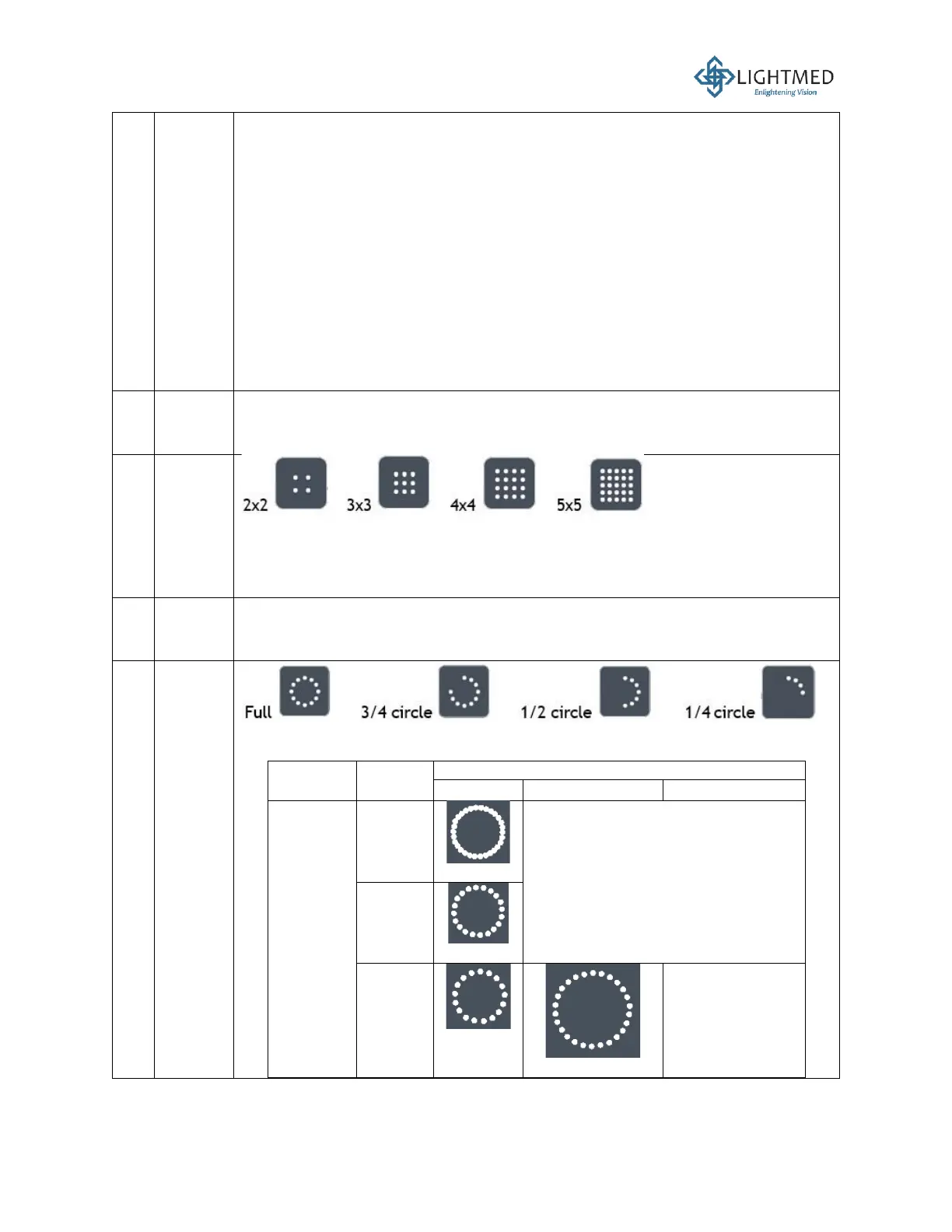

LIGHTMED TruScan Pro – Operator’s Manual Rev. No. 01 Page 43 of 109
▪ 532 and 577 nm maximum power = 2,000 mW
▪ 670 nm maximum power = 700 mW
▪ 810 nm maximum power = 3,000 mW
• Duration:
o 10, 20, 30, 40, 50, 60, 80, 100, and 150 ms
o 200 to 3,000 ms in 100 ms-increments
o 3,500 to 5,000 ms in 500 ms intervals and 10,000 ms (810nm only)
o 20,000 to 90,000 ms in 10,000 ms intervals (810nm port2 SP mode
only)
• Interval:
o “OFF”
o 10, 20, 30, 40, 50, 60, 80, 100, and 150 ms
o 200 to 3,000 ms in 100 ms-increments
o 3,500 to 5,000 ms in 500 ms intervals and 10,000 ms (810nm only)
7
Straight
line
pattern
• Spot size (µm): 100 to 500
• Spacing (Φ): 0, 0.5, 0.75, 1.0, 1.5, 1.75, 2.0
• Rotation: 0 to 355° in 5°-increments
8
Square
pattern
• Spot size (µm): 100 to 500
• Spacing (Φ): 0, 0.5, 0.75, 1.0, 1.5, 1.75, 2.0
• Rotation: 0 to 355° in 5°-increments
9
Triangle
pattern
• Spot size (µm): 100 to 500
• Spacing (Φ): 0, 0.5, 0.75, 1.0, 1.5, 1.75, 2.0
• Rotation: 0 to 355° in 5°-increments
10
Circle
pattern
• Full circle parameters (rotation not available):
Spot Size
(µm)
Spacing
(Φ)
Radius (µm)
1,000
1,500
2,000
200
0
30 dots
N/A
0.5
20 dots
0.75
17 dots
26 dots
N/A
