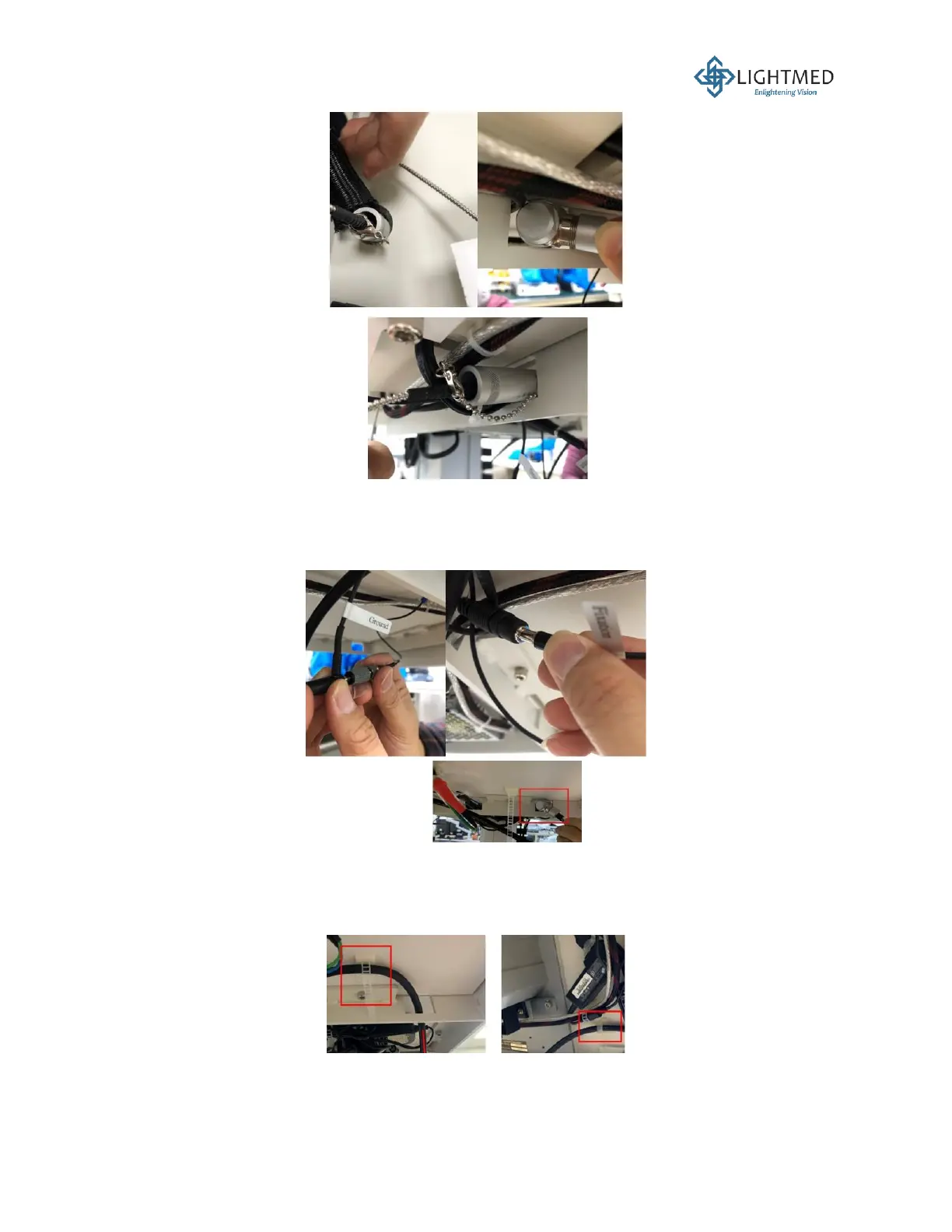

Figure 25: Slit lamp and chinrest cable management.
13. Connect the slit lamp ground and fixation lamp cables to their respective counterparts,
following the labels tagged on them. Route the slit lamp cable and fiber through the second
hole facing the table column (Figure 26).
Figure 26: Connecting the slit lamp ground and fixation lamp cables.
14. Secure the cables by using the white adjustable cable management ties that stick to the
tabletop (Figure 27).
Figure 27: Cable management ties.
