5. Software Control – Using Lightware Device Controller HDMI20-OPTC series – User's Manual 33
Importing an EDID
user memory:
Step 1. Select the User tab in the left panel and select a memory slot.
Step 2. Press the Import button below the Source panel.
Step 3. Open button. Browsed EDID is imported into the
selected User memory.
ATTENTION! The imported EDID overwrites the selected memory place even if it is not empty.
The EDID(s) from User memory can be deleted as follows:
Step 1. Select the User tab in the left panel.
Step 2. Select the desired memory slot(s); one or more can be selected (Select all and Select None buttons can
be used). The EDID(s) will be highlighted with yellow.
Step 3. Press the Deleted selected button to delete the EDID(s).

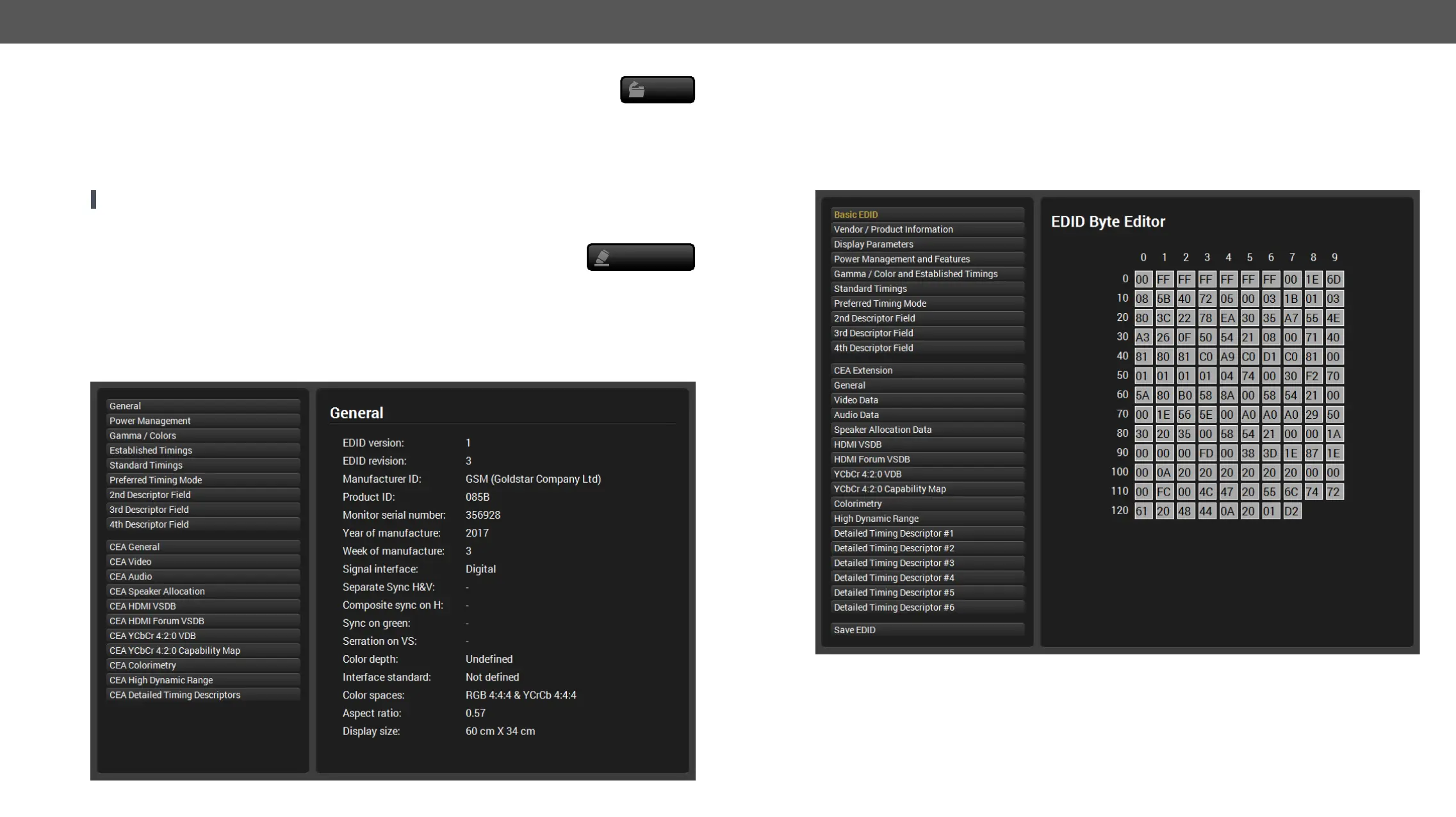

EDID Summary Window
Select an EDID from Source panel and press the Info button to display EDID summary.
Import
Delete selected
Editing an EDID
Select an EDID from the left panel and press the Edit button to display Advanced EDID Editor window. The
resolves the raw EDID and displays it as readable information to the user. All descriptors can be edited, and
EDID Editor Window
