5. Software Control – Using Lightware Device Controller HDMI20-OPTC series – User's Manual 41

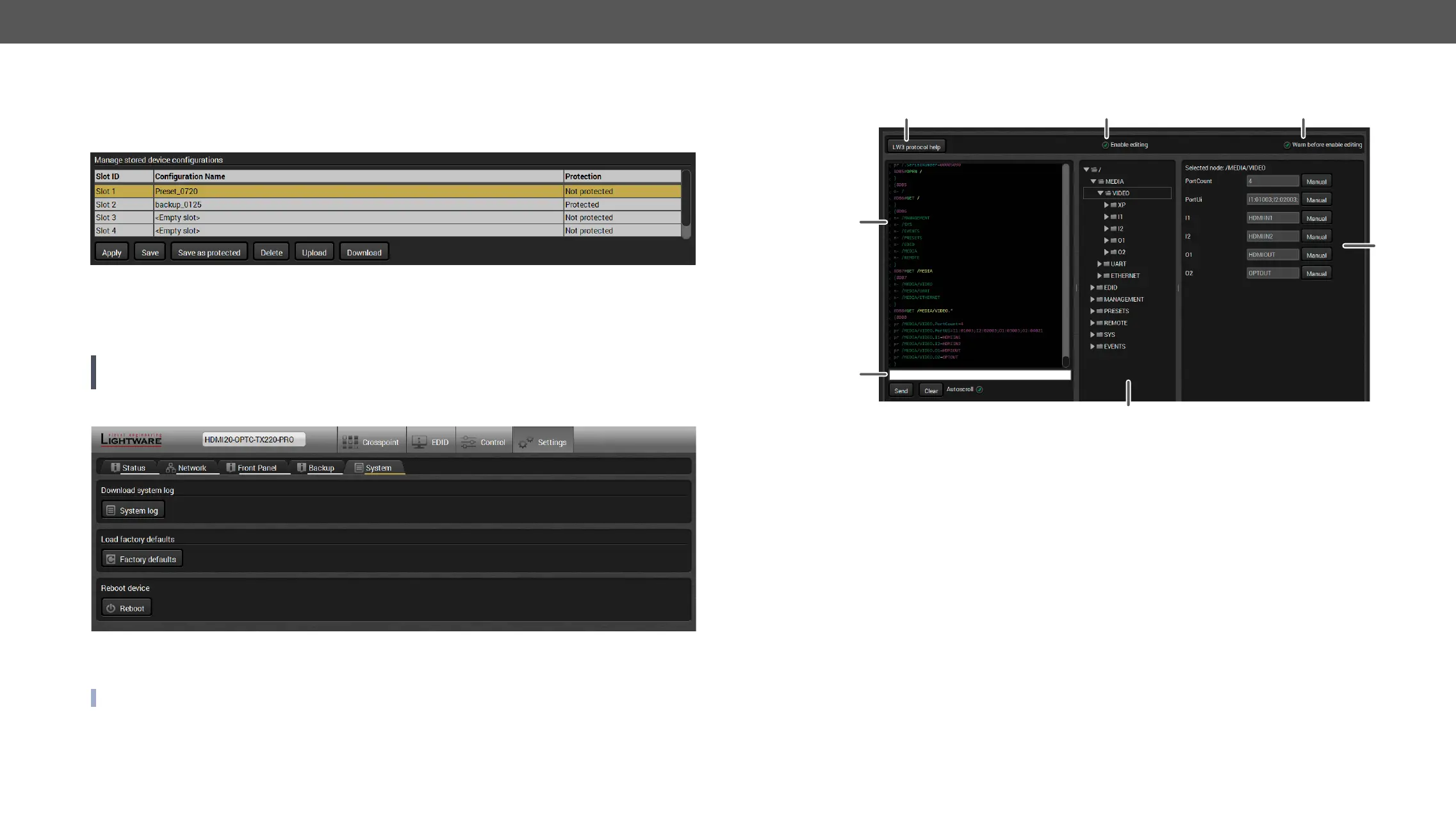

Create and Restore Backups from the Device Memory
HDMI20-OPTC series extenders are able to store backups in their own memory and these can be recalled
purpose.
You can save presets as not protected with using Save button and as protected with using the Save as protected
button. To restore a preset select the slot of the desired backup and click on the Apply button. You can save
Upload button and you can also save a preset
Download button. If you do not need a saved preset
any more, select it and click on the Delete button.
WARNING! Loading factory default settings will erase not protected presets which have been saved in
the device memory!
System
Three functions are available under System tab:
▪ Download system log
▪ Load factory defaults - recalling factory defaults settings and values. All factory default settings are
listed in the Factory Default Settings section.
▪ Reboot - rebooting the system.
Advanced View Window
1
LW3 protocol help Pushing the button results a help window opening which describes the most
2
Edit mode The default appearance is the read-only mode. If you want to modify the values or
3
Warning mode If this pipe checked in, a warning window pops up when you enable Edit mode.
4
Terminal window Commands and responses with time and date are listed in this window. Sent
The color of each item depends on the type of the command and response. The
content of the window can be emptied by the Clear button. If the Autoscroll option
is ticked, the list is scrolled automatically when a new line is added.
5
Command line Type the desired command and execute it by the Send button. .
6
Protocol tree
7
Node list Correspondent parameters and nodes are shown which are connected to the
selected item in the protocol tree.
Manual button: Manual (short description) of the node can be called and
displayed in the terminal window.
Set button:
Call button: Calls the method, e.g. reloads factory default settings.
1
2 3
4
5
6
