Receiver

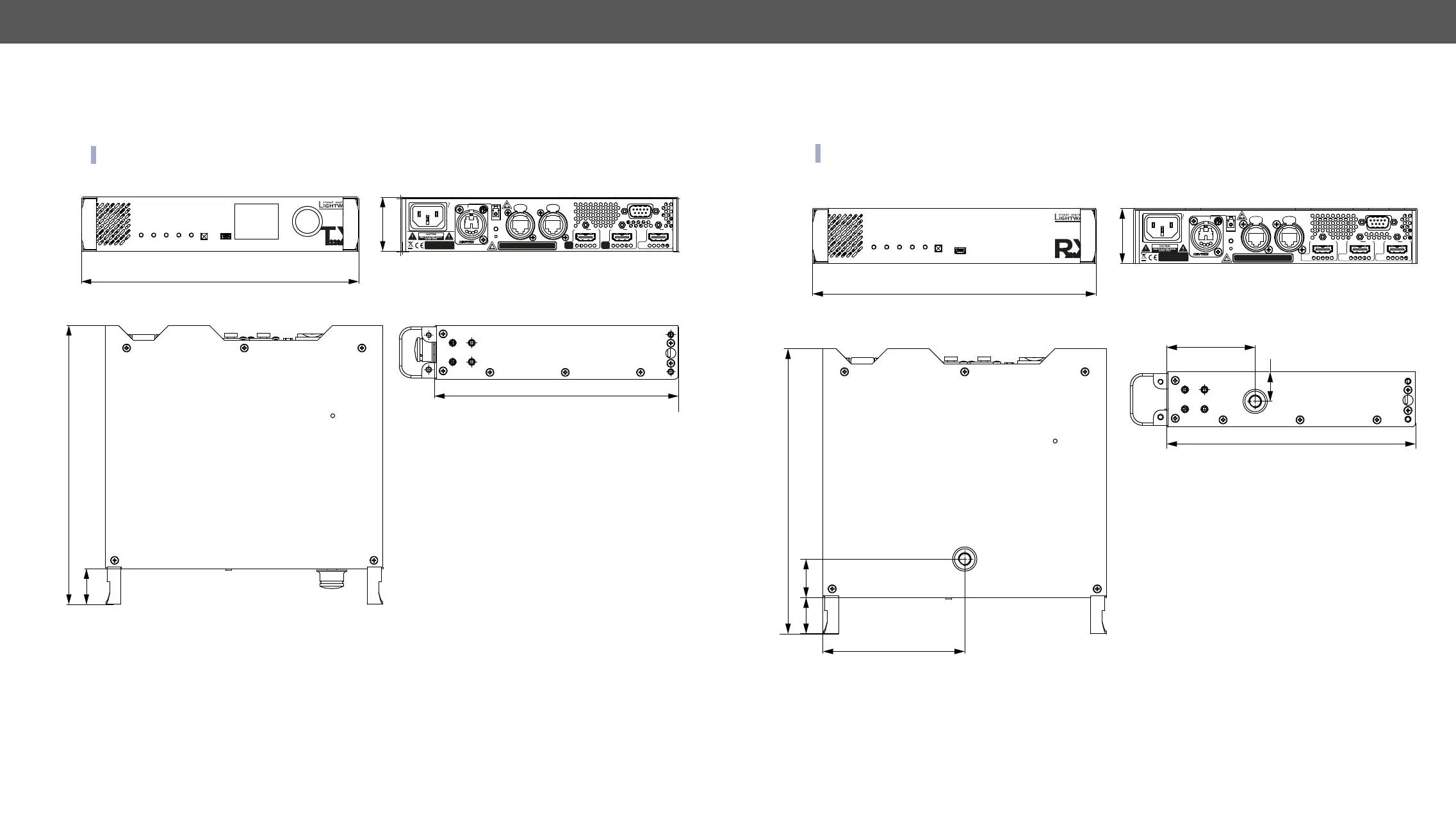

The following drawings present the physical dimensions of the receiver. Dimensions are in mm.
INFO: All models have the same dimensions, the difference is only the connector types.
Front View
Rear View
Side ViewTop View
POWER / LIVE
FIBER LINK
HDCP SIGNAL PRESENT OUTPUT CONVERSION
USB
CONTROL
FUNCTION
HDMI20-OPTC-RX220-Pro
HDMI 2.0 Multimode Fiber Receiver
HDMI20
OPTC
220-PRO
221
42,9
23
194
222,25
30
28,25
110,5
69
BOOT
B: FIBER INPUT
A
RS-232
GIGABIT
ETHERNET 1
GIGABIT
ETHERNET 2
Made in EU, Hungary
LASER
ACTIVE
HDMI 2.0 HDMI 2.0 HDMI 2.0
1A 1B 2
( )
( ) ( )
9G/18G 9G 18G
OUTPUT OUTPUT OUTPUT
50/60 Hz 0.3-0.1A
100-240 VAC
Sn:
CAUTION - CLASS 3R INVISIBLE RADIATION
WHEN OPEN AVOID DIRECT EYE EXPOSURE
Mechanical Drawings
Transmitter
The following drawings present the physical dimensions of the transmitter. Dimensions are in mm.
INFO: All models have the same dimensions, the difference is only the connector types.
HDMI20
OPTC
220-PRO
221
42,9
194
222,25
28,25
POWER / LIVE
FIBER LINK
HDCP INPUT 1
INPUT 2
USB
CONTROL
SELECT
HDMI20-OPTC-TX220-Pro
HDMI 2.0 Multimode Fiber Transmitter
BOOT
A: FIBER OUTPUT
B
RS-232
GIGABIT
ETHERNET 1
GIGABIT
ETHERNET 2
LASER
ACTIVE
HDMI 2.0 HDMI 2.0 HDMI 2.0
1 2
1
( )( )( )
18G18G18G
INPUT INPUT OUTPUT
50/60 Hz 0.3-0.1A
100-240 VAC
Sn:
Made in EU, Hungary
CAUTION - CLASS 3R INVISIBLE RADIATION
WHEN OPEN AVOID DIRECT EYE EXPOSURE




