5. Software Control – Using Lightware Device Controller HDMI20-OPTC series – User's Manual 37

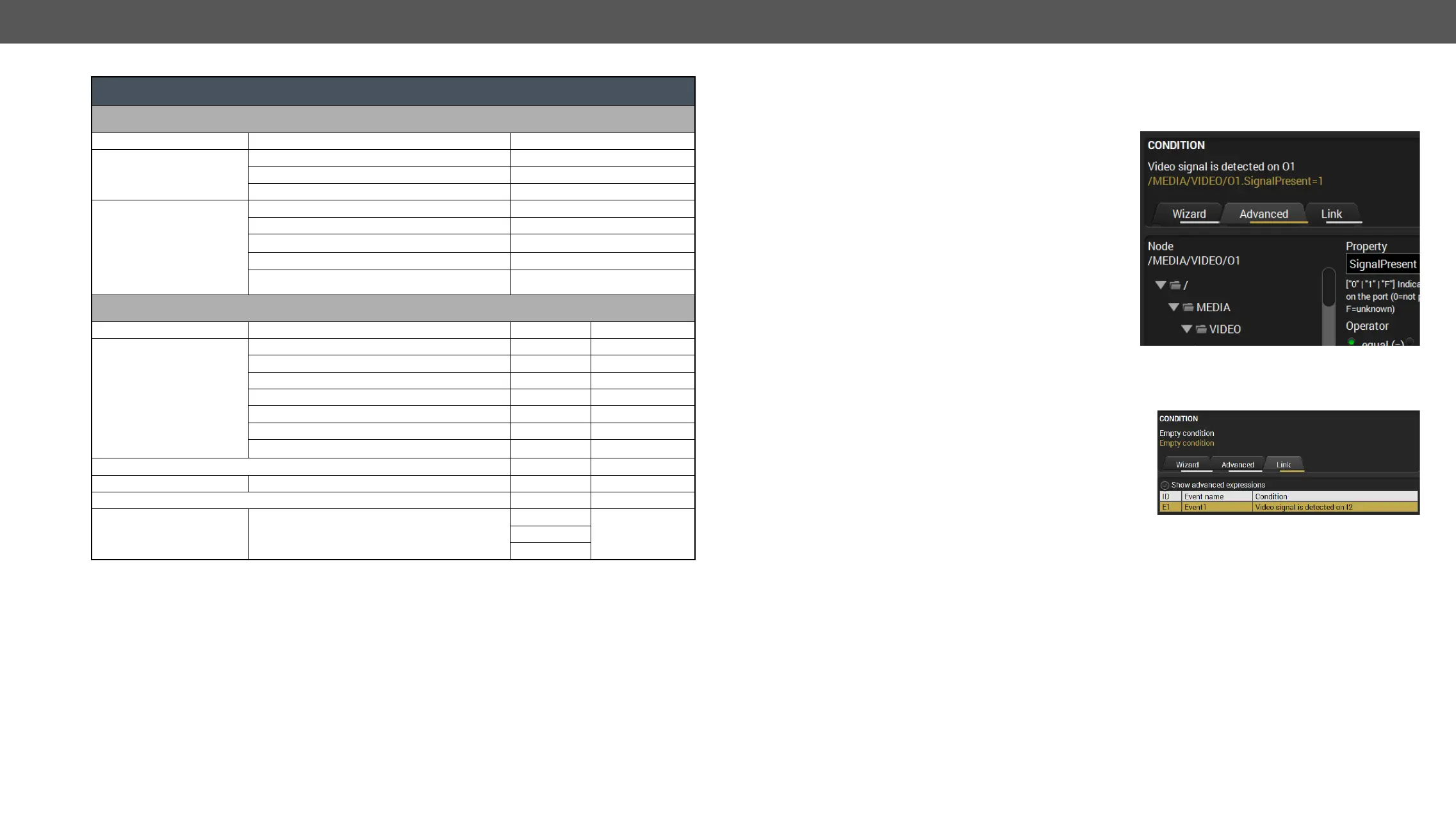

Conditions and actions in wizard mode in the receiver
Condition
Category Expression Ports
General
Function button is pressed
OPT link state changes to Connected
OPT link state changes to Disconnected
Video
Signal is detected on a port I1, O1, O2, O3
Signal is not detected on a port I1, O1, O2, O3
Signal type changes to DVI I1, O1, O2, O3
Signal type changes to HDMI I1, O1, O2, O3
I1, O1, O2, O3
Action
Category Expression Input Output
Video
Switch input to output I1 O1, O2, O3
Enable autoselect on output O1, O2, O3
Disable autoselect on output O1, O2, O3
Mute input I1
Mute output O1, O2, O3
Unmute input I1
Unmute output O1, O2, O3
Port Message
RS-232 Send RS-232 message P1
Source EDID Destination EDID
EDID Switch EDID
F1-146
E1D1-2
U1-14
Advanced Mode
The goal of this mode is the same as of the wizard: set the properties and methods for conditions and
protocol. Advanced mode allows almost all of it.
Step 1. Click on the Edit button of the desired Event; the
Event editor is displayed.
Step 2. The wizard mode is the default, press the
Advanced
displayed showing the list of the properties in the
drop-down menu. Navigate to the desired node.
Step 3. Select the desired Property from the menu. The
manual of the property is displayed below to help
to select the necessary property and to set the
value.
Step 4. Set the desired value and operator, then press the
Apply button to store settings.
The Link Tool
The interface allows creating more actions to the same condition. In that case, a condition can trigger more
actions. To set such an Event, the Link tool has been introduced.
Step 1. Click on the Edit button of the desired Event; the
Event editor is displayed.
Step 2. The wizard mode is displayed as default, press the
Link button.
Step 3. All the saved Events are analyzed and the conditions
Show advanced expressions option allows showing
the exact path and set the value of the given property.
Step 4. Select the desired Condition and press the Apply button to store the settings.
