Page 106 / 119 Section 9. Firmware upgrade
TIPS AND TRICKS
Files with “.lfp” extension are associated to LDU during installation. If you double click on
the “.lfp” file, the application is launched, the package is loaded automatically and above
screen is shown.

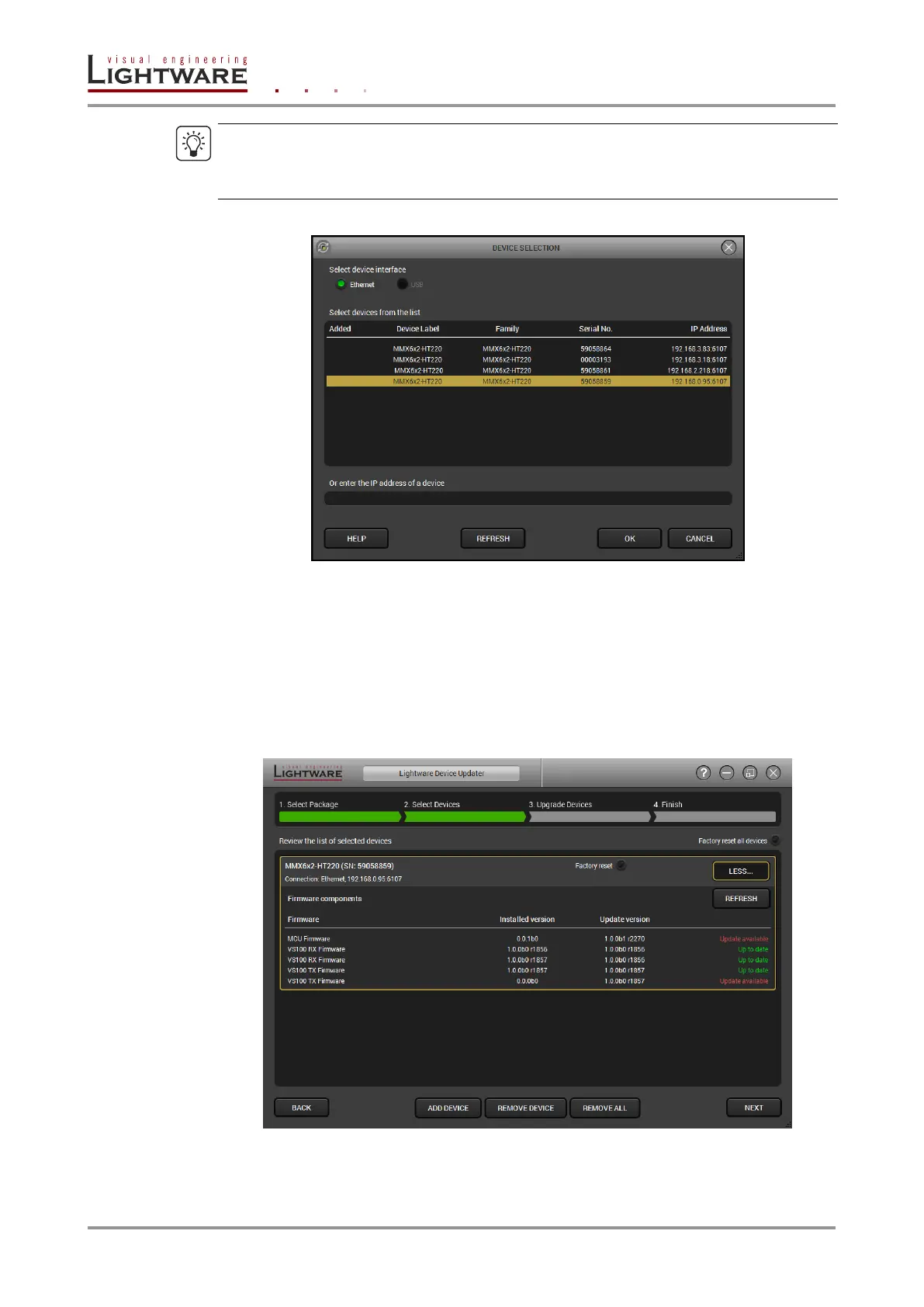

Step 2. Select devices.
The following step is to select the desired device(s). The available and supported devices
are searched and listed automatically. If the desired device is not listed, update the list by
clicking the Refresh button (devices with Ethernet connection: type the IP address in the
line). Select the desired devices: highlight them with a yellow cursor, then click OK.
A tick mark can be seen in the Added column if the device was added by the user previously.
Firmware components
The firmware components of the selected devices are listed on the following screen:
installed and update versions. (Update version will be uploaded to the device.)
To Next Page
