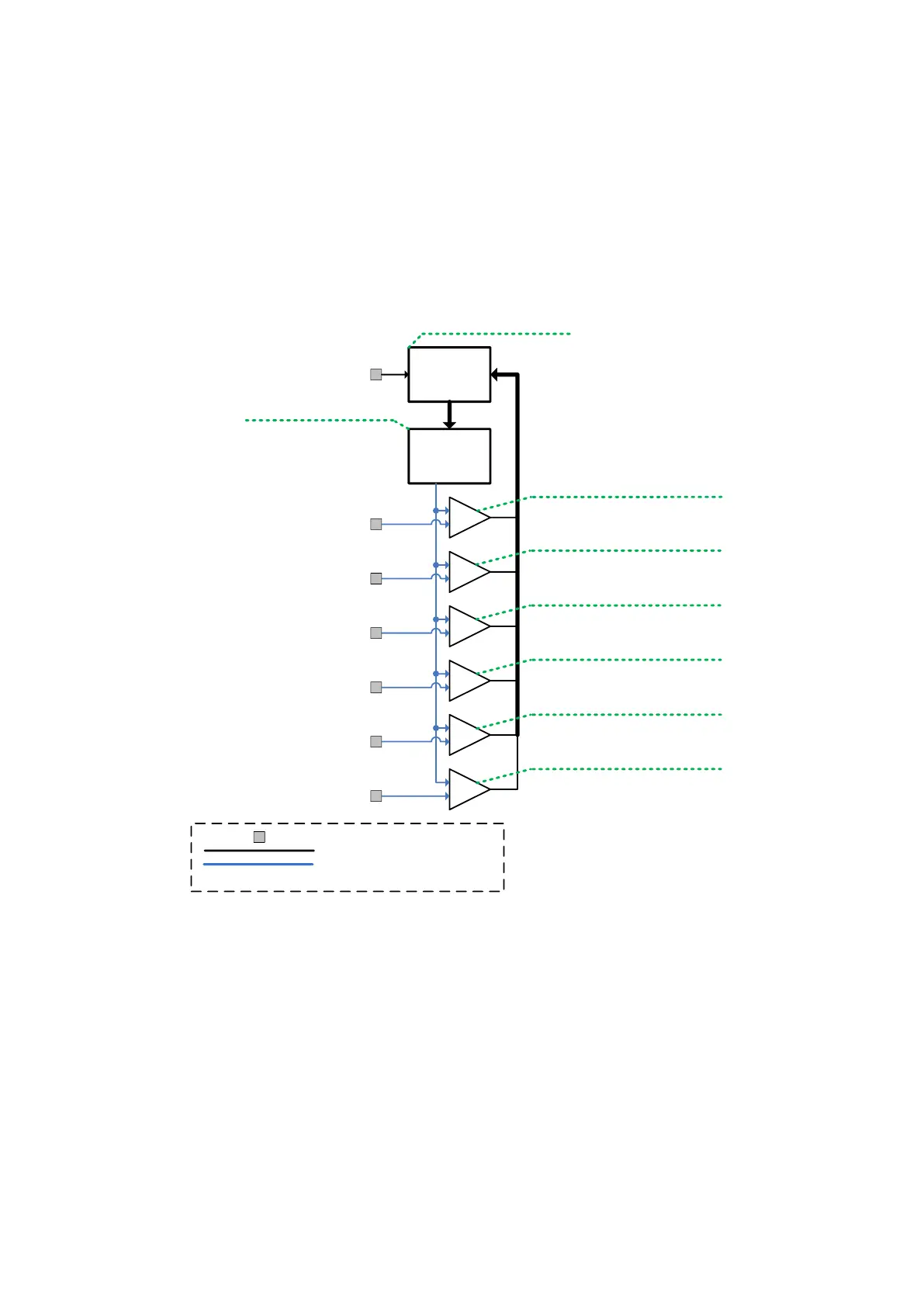

LMS7002M
Measurement
block
From: XCLK_RX (XBUF RX)
Logic and
SPI control
DAC
MEASR_CLKDIV<7:0> (0x0600[15:8])
MEASR_MODE (0x0600[1])
MEASR_PD (0x0600[0])
MEASR_CMPSTATUS_TREF (0x0601[5])
MEASR_CMPSTATUS_TPTAT (0x0601[4])
MEASR_CMPSTATUS_RSSI2 (0x0601[3])
MEASR_CMPSTATUS_RSSI1 (0x0601[2])
MEASR_CMPSTATUS_PDET2 (0x0601[1])
MEASR_CMPSTATUS_PDET1 (0x0601[0])
MEASR_BIAS<4:0> (0x0602[13:9])
MEASR_HYSCMP<2:0> (0x0602[8:6])
MEASR_CMPCFG_TREF (0x0602[5])
MEASR_CMPCFG_TPTAT (0x0602[4])
MEASR_CMPCFG_RSSI2 (0x0602[3])
MEASR_CMPCFG_RSSI1 (0x0602[2])
MEASR_CMPCFG_PDET2 (0x0602[1])
MEASR_CMPCFG_PDET1 (0x0602[0])
MEASR_DAC_VAL<7:0> (0x0603[7:0])
MEASR_PDET2_VAL<7:0> (0x0604[15:8])
MEASR_PDET1_VAL<7:0> (0x0604[7:0])
MEASR_RSSI1_VAL<7:0> (0x0605[7:0])
MEASR_RSSI2_VAL<7:0> (0x0605[15:8])
MEASR_TPTAT_VAL<7:0> (0x0606[7:0])
MEASR_TREF_VAL<7:0> (0x0606[15:8])
MEASR_HYSCMP<2:0> (0x0602[8:6])
MEASR_HYSCMP<2:0> (0x0602[8:6])
MEASR_HYSCMP<2:0> (0x0602[8:6])
MEASR_HYSCMP<2:0> (0x0602[8:6])
MEASR_HYSCMP<2:0> (0x0602[8:6])
From: pdeto(p/n)_2 (TX TRF 2)
From: pdeto(p/n)_1 (TX TRF 1)
From: out_rssi_rfe_1 (RX RFE 1)
From: out_rssi_rfe_1 (RX RFE 2)
From: bias_top_adcin<1> (BIAS TOP)
From: bias_top_adcin<0> (BIAS TOP)
Analog signal lines
Signal input/output
RESET_N (XXXX)
IO control name (register adress)
Control signal lines
