Linde H40D - Loading; Crane lifting

4 Operation
Loading / Transporting
Driving without the lift mast
CAUTION
When driving without the lift mast, the speed of the
truck must be reduced for safety reasons.
Therefore, before removing the lift mast, an addi-
tional stop screw must be fitted under the reverse
travel accelerator pedal (dual-pedal operation) or
accelerator pedal (single-pedal operation) to re-
strict the speed.
¾ Switch off the engine.
1
2
3

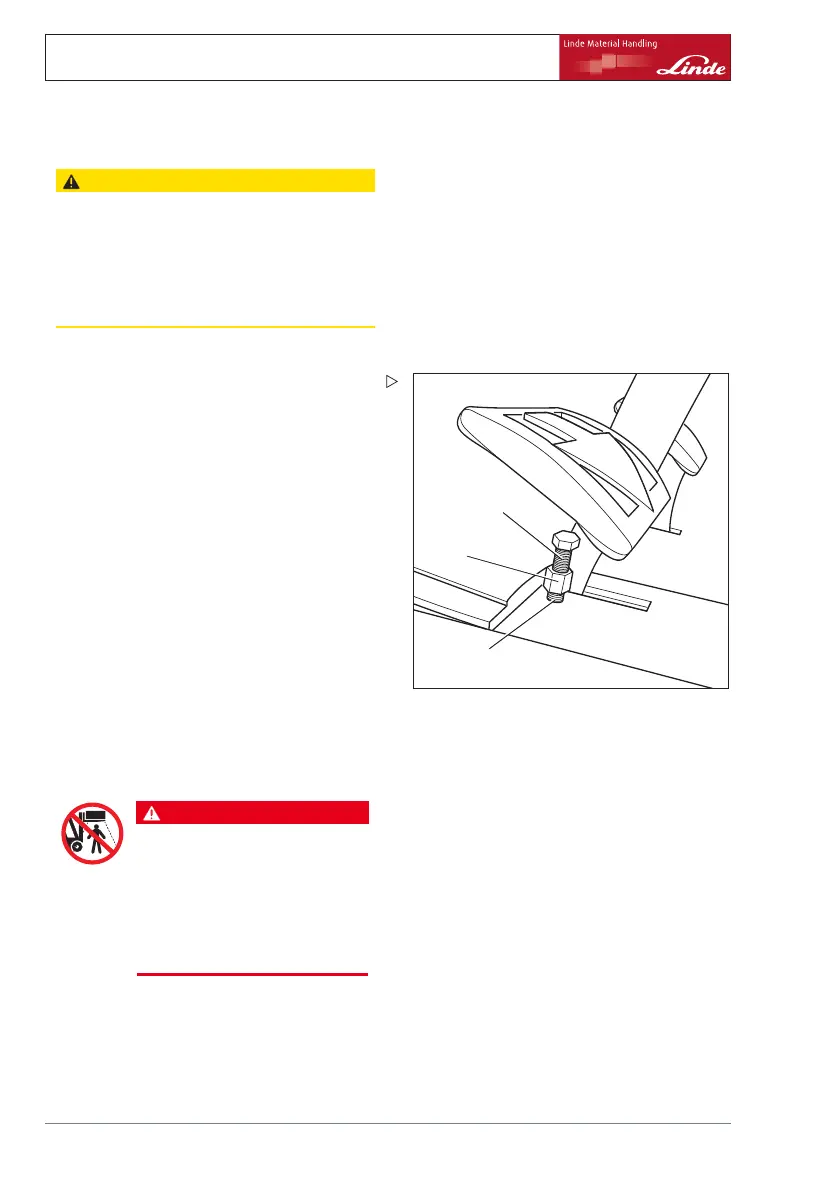

d3921520
¾ Screw the hexagon head screw M8 x 20 (3)
half-way into hexagon nut M8 (2) (DIN 6330,
6331, 6334).
¾ Screw the hexagon nut (2) onto the existing
hexagon head screw M8 (1) until one
hexagon head screw (3) hits the other
hexagon head screw (1).
¾ Lock them into the hexagonal nut (2).
¾ Remove the lift mast.
After reattaching the lift mast, the additional
stop must be removed.
Loading
Crane lifting
DANGER
When using a crane to load the truck,
be particularly careful to ensure
that no-one is in the working area
of the crane! Observe loading weight
according to nameplate.
Do not walk under suspended loads!
Only use round slings and a loading
crane with a sufficient load capacity.
