Operation 4
Special equipment

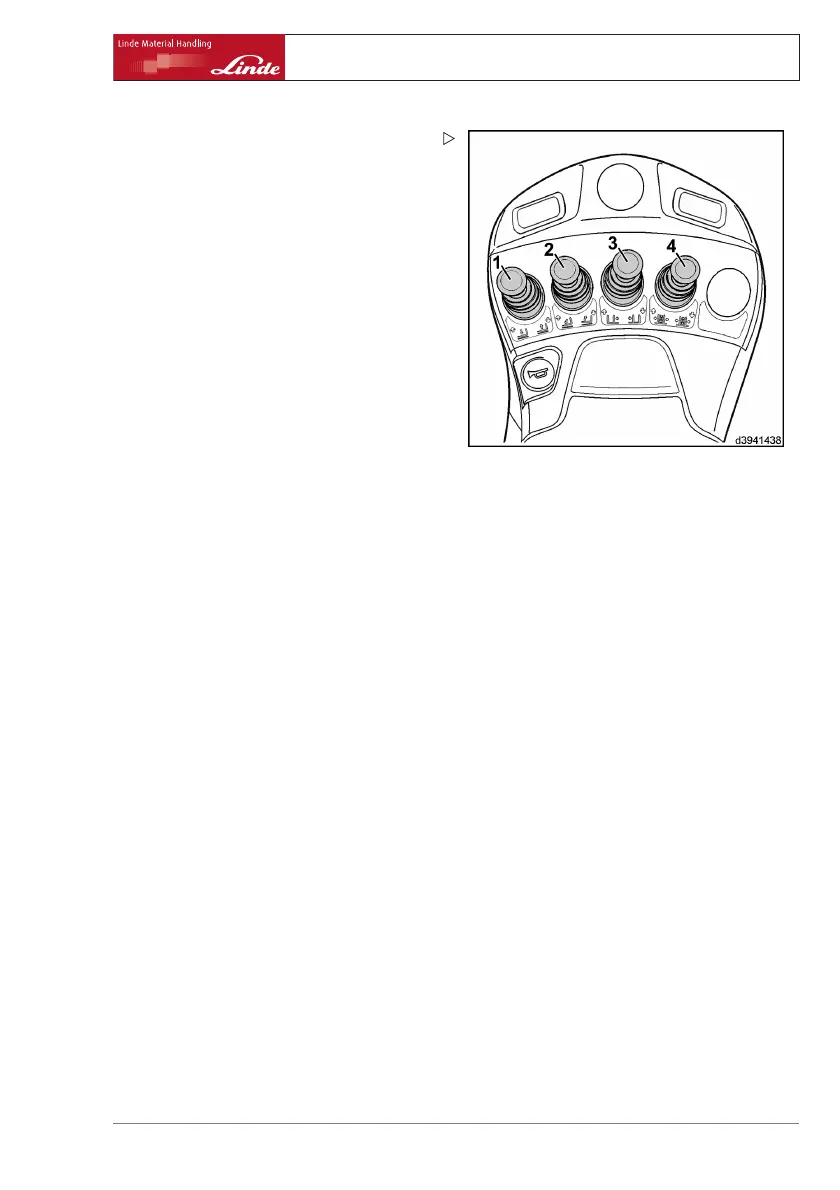

¾ Unlock the joystick (4) (depending on the
version) by pressing the knob downwards.
¾ Push the joystick (4) forwards.
Clamp opens.
¾ Pull the joystick (4) backwards.
Clamp closes.
Once the joystick has been r
eleased, it is
locked again.
Special equipmen
t
Depressurisati
on
When replacing
hydraulic components or
connecting ope
rating equipment to the quick-
release coupli
ngs of the working hydraulics,
the hydraulic s
ystem must be depressurised.
¾ Switch off the engine.
¾ Switch on the ignition.
¾ Actuate the jo
ystick of the corresponding
auxiliary hyd
raulics repeatedly.
¾ Unscrew the union nuts on the fork carriage.
¾ Screw on the lines from the attachment or
connect the plug connectors.
Operating Instructions – 394 807 10 01 EN – 07/2011 71
