5 Maintenance
Engine

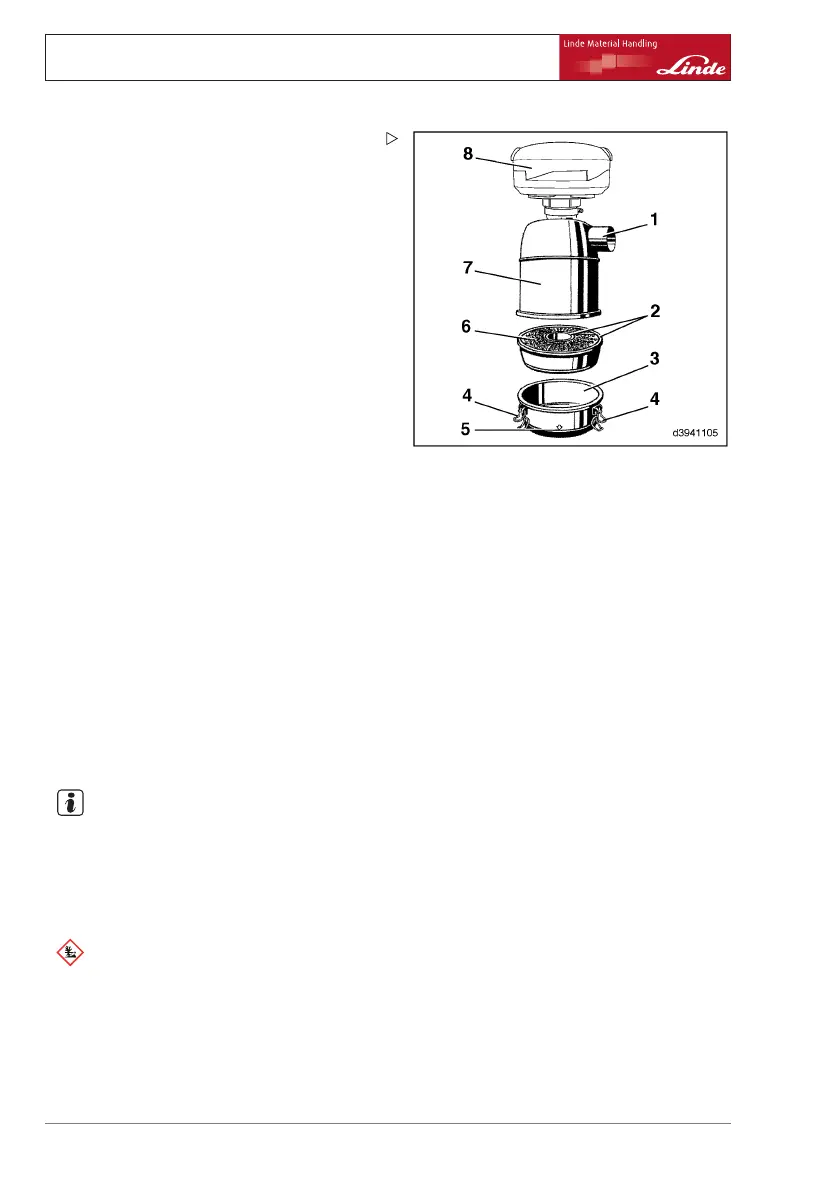

¾ Open fasteners (4) on oil tank (3).
¾ Remove oil tank (downwards), then empty
and clean.
¾ Clean and check seals (2) and ch
ange if
damaged.
¾ Loosen the air hose clip on the clean air
connection (1) and remove the hose.
¾ Detach and clean dust collecting tank (8).
¾ Detach upper part of filter (
7) on overhead
guard.
¾ Wash out upper part of filter and filter insert
with diesel fuel.
The filter and knotted steel inserts can be
cleaned with a steam jet.
¾ Thoroughly dry the clean
ed filter.
¾ Fit upper part of filter and secure air hose
with hose clip.
¾ Fit the dust collecting tank (8).
¾ Fill the oil tank (3) wi
th engine oil as far as
mark (5).
¾ Fit oil tank (3) to upper part of filter (7) ,
ensuring that it is correctly positioned, then
secure with fasteners (4).
Change the oil in the oil bath air
cleaner (Optional)
NOTE
An oil change is necessary when the dirt
sediments have reached half of the oil filling,
and at least whenever the filter element is
renewed. Do not add oil between the oil
change intervals.
ENVIRONMENT NOTE
Follow the precautions for handling fluids and
lubricants.
¾ Shut the engine off.
144 Operating Instructions – 394 807 10 01 EN – 07/2011
