Maintenance 5
Load lift system
d3941365
2
1

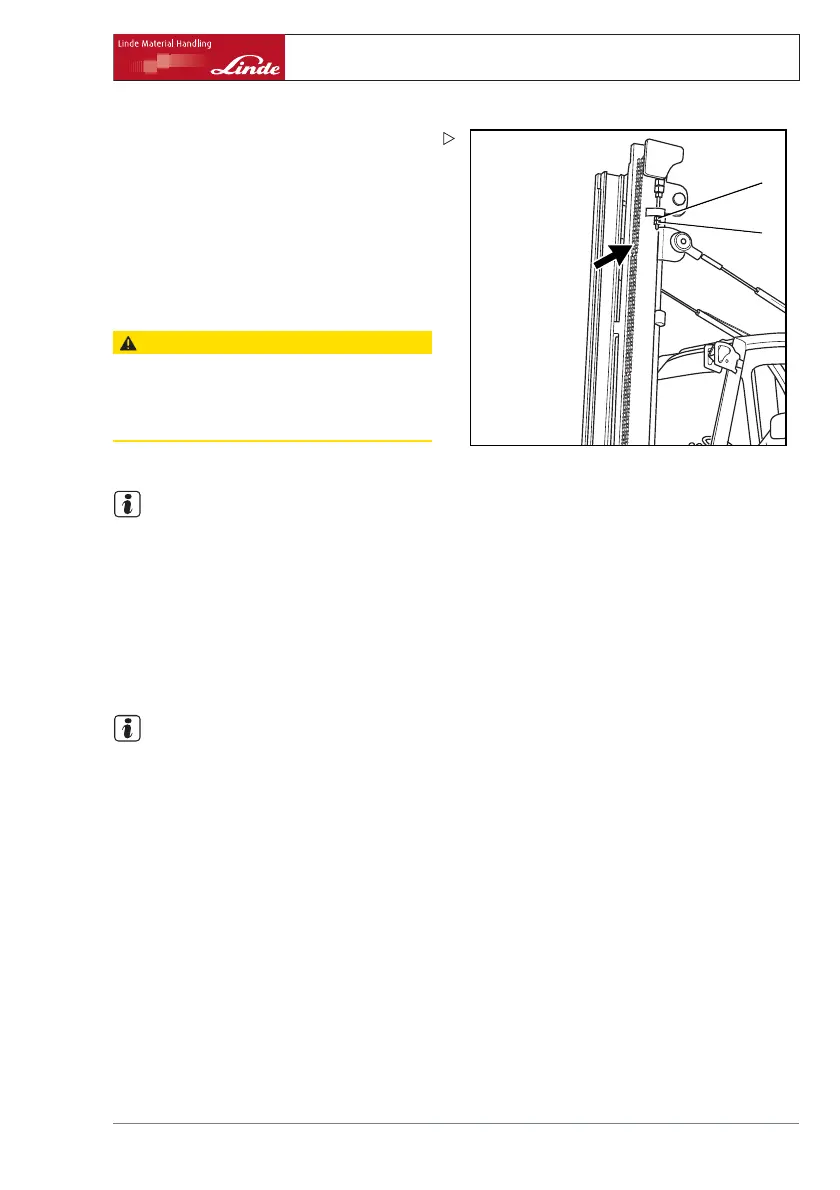

¾ Loosen locknut (1).
¾ Adjust chain at adjustment nut (2) of chain
anchor.
The lower guide roller on the fo
rk carriage may
only protrude max. 30 mm from th
e inner lift
mast guide rail.
¾ Tighten the locknut (1).
¾ Also adjust second chain.
CAUTION
When extending the lift mast, it must not touch the
end stops.
Fully extend the lift mast and check clearance to
end stops.
Apply chain spray.
NOTE
In the case of trucks that are used in the food
production sector, chain spray should not be
used. Instead, use a low-viscosity oil licensed
for use in the food industry.
¾ Apply Linde chain spray to guide surfaces
and chain.
Duplex lift mast or triplex lift mast
NOTE
The lift mast chain stretches over time during
operation and therefore has to be readjusted.
¾ Lower the lift mast and fork carriage com-
pletely.
Operating Instructions – 394 807 10 01 EN – 07/2011 187
