LineEye LE Series User Manual

-51-
■

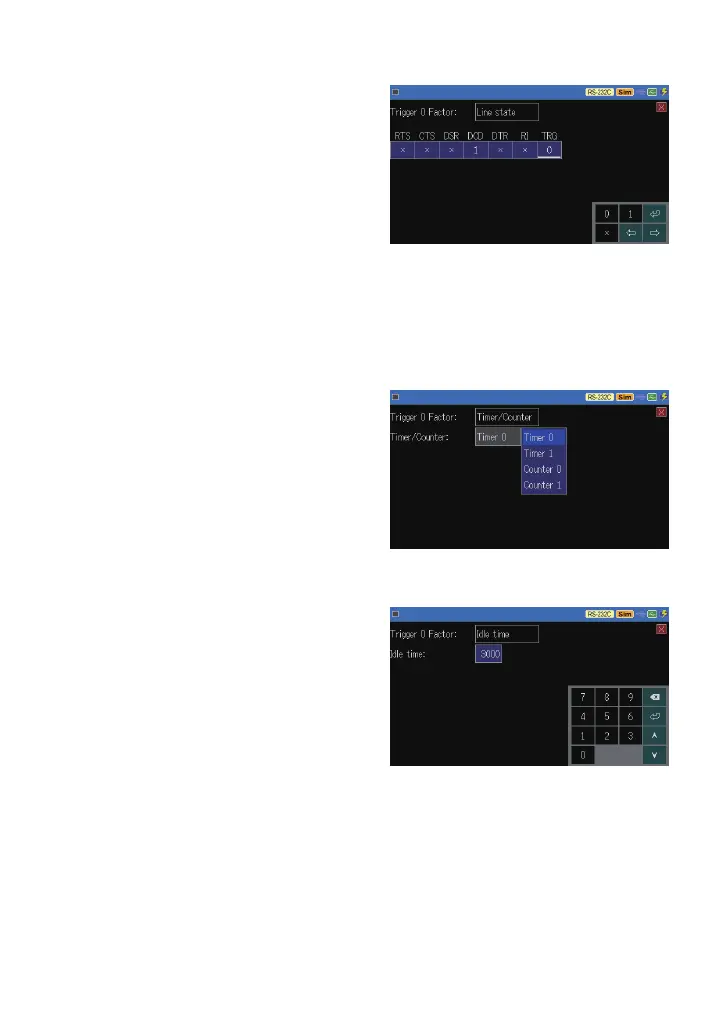

Line state
Specify the detection logic of a
control line and external trigger
input TRG by 1(H), 0(L), X(Don’t
Care). The status judgment of 1,0
is as same as that of the line state
display.

The condition meets when all the
signals are set to AND condition and the condition changes from mismatch to
match.

When the selected port does not have the control line, the signal on the RS-
232C side turns to be a condition to be meet. When you do not use it set X.
■
Timer/Counter
Specify the one which judges the
accordance of the value from the
timer or counter which is started
by another trigger.

The value to be judged needs to
be set on timer/counter setting
display in advance.
→
Trigger Setting
■
Idle time
It judges the idle time which
passes over the specified value.
When you want to detect a
communication time out set the
value 1 less its value.

The time resolution is as same as that of idle time setting.
→ 3.6 Idle Time and Time Stamp
