6.4 Sectional leg supports (GKB-205.X)
Sectional leg supports allow their removal and make it easier especially for
immobile patients to mount the chair.
Removal procedure:
1) Push the securing wire in the direction away from the chair (figure 1)
2) Lift the support by ca 30°and pull it out of the arm joint (figure 2)
Assembly procedure:
1) Fit the support when it is tilted by 30°C in relation to the support arm joint.
2) Push the support to the chair as far as possible, to keep the pivot of the
joint fully inserted.
3) Slowly release the support downwards until you hear the securing wire
lock into place with a snap.

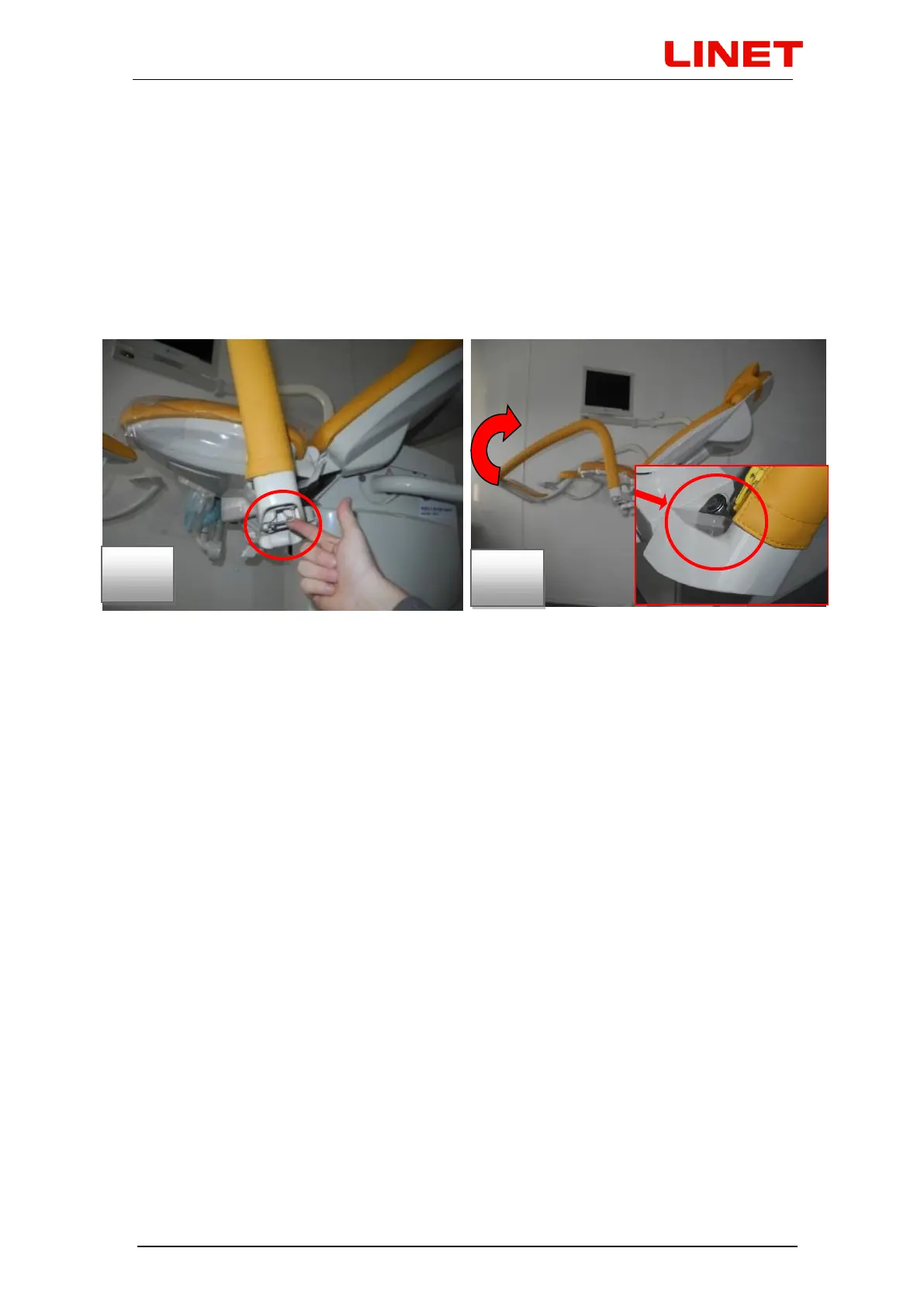

Fig. 1
Fig. 2
