130/150 D9U001GKB-0101

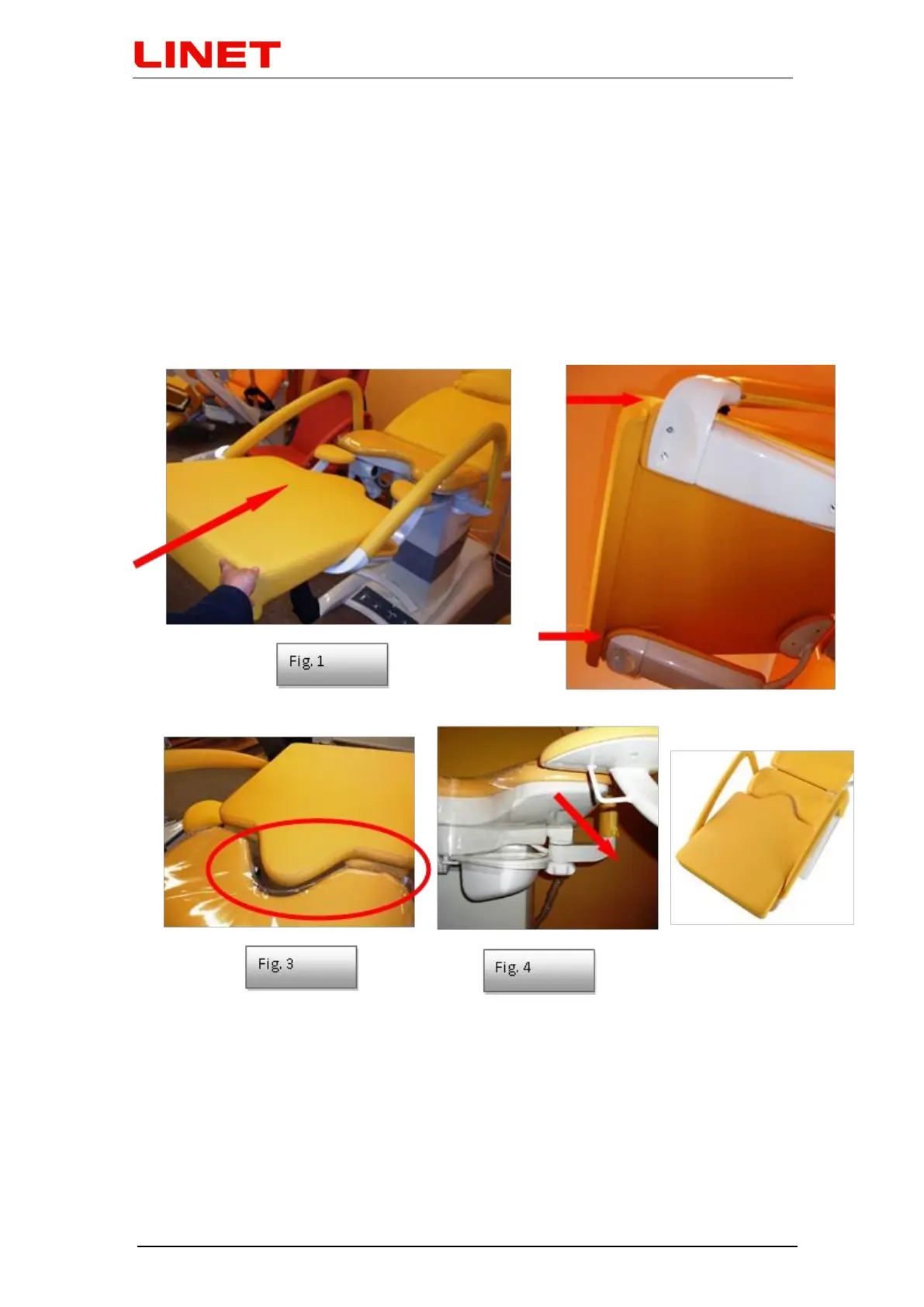

6.27 Laying board (GKB-115)
This equipment is used to create a flat laying surface, suitable for patients in
supine position during longer interventions. Installation procedure:
1) Set the board end to the stop toward footrests (according to Fig. 2) so
that a safety gap remains between the board and sitting part (according
to Fig. 3).
2) Tighten the screws to secure footrests (according to Fig. 4) so that the
board is safely fitted in place.
