40
Bed transport:

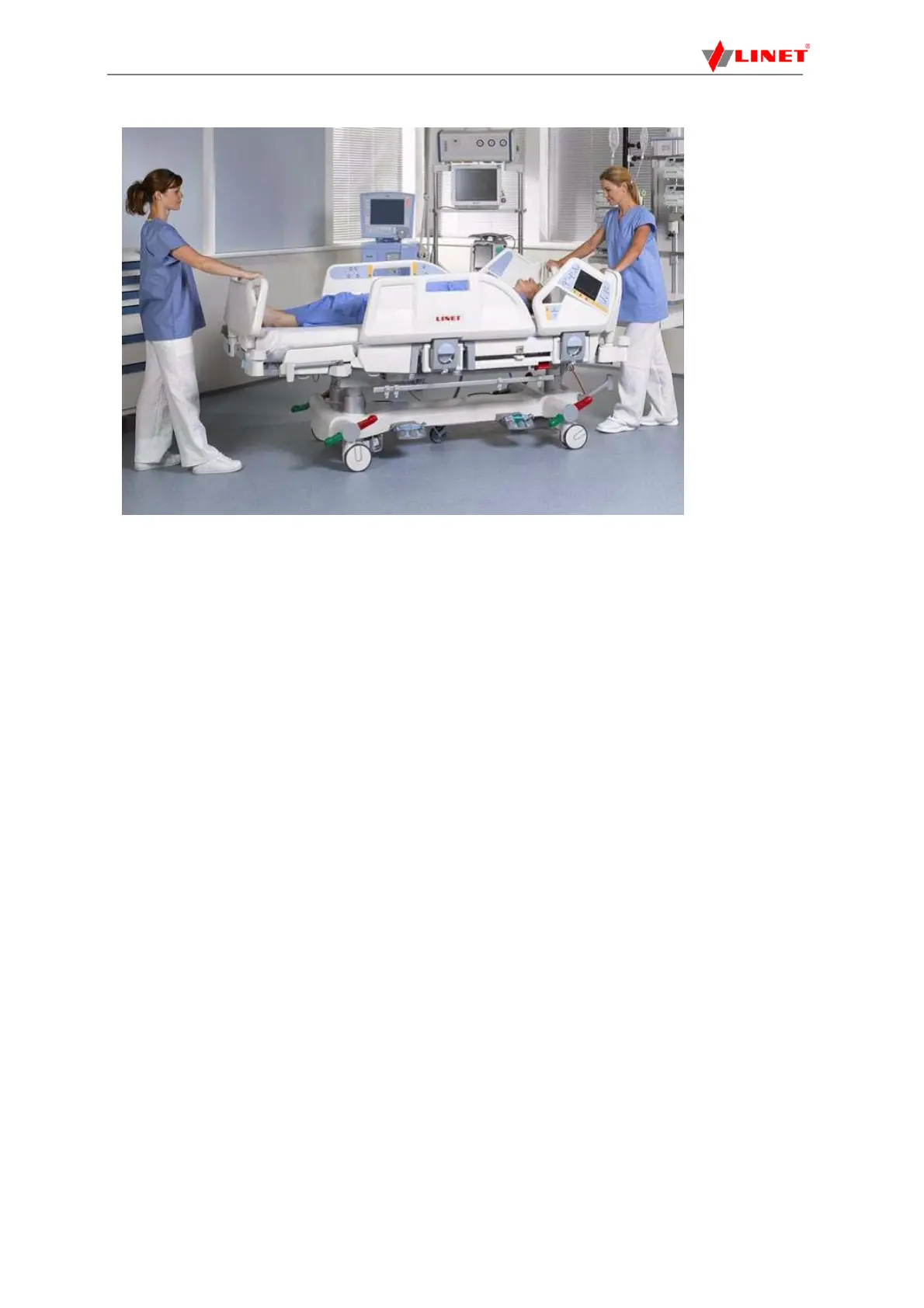

Fig. 21 Bed Transport
Transporting the bed:
Adjust bed height to at least 20 cm below maximum height.
Push bed by handles on head or foot end.
11.8.1 i-Brake® (optional)
It is possible to equip the bed with an automatic castor brake. The automatic castor brake prevents injuries of pati-
ents and staff due to an unbraked bed.
The brakes are activated automatically 60 seconds after the bed is plugged in, and 60 seconds after they have
been released if the bed is not being moved.
It is possible to activate the brakes manually as well.
11.8.2 Retractable 5th wheel i-Drive® (optional)
It is possible to equip the bed with a 5
th
wheel in the chassis centre. The 5
th
wheel helps to steer and manoeuvre
the bed in long corridors and small rooms.
If the bed is plugged in, the 5
th
wheel automatically retracts. In this position, the 5
th
wheel does not obstruct
access to any devices under the chassis.
To activate the 5th wheel i-Drive®:
Disconnect the bed from the mains.
Adjust the castor control so that the green lever points down
