11.2 Supervisor Panel
The additional supervisor panel is an optional control element. The additional supervisor panel can be hung from
the foot board if required. It is possible to hold the additional supervisor in the hand while operating.

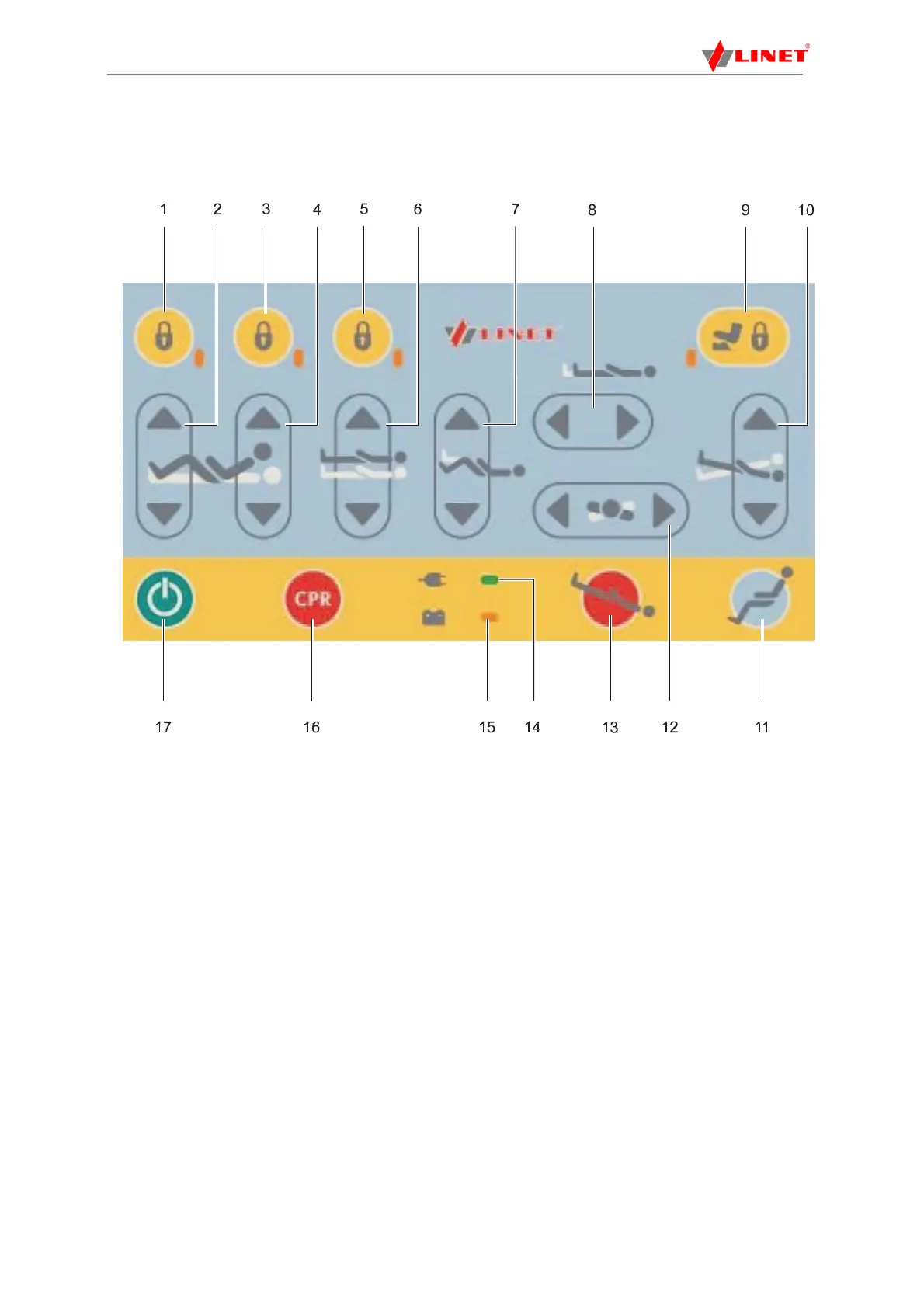

Fig. 13 Additional Supervisor Panel
1. Button and LED Thigh Rest, Calf Rest and Extension Lock
2. Button Thigh Rest Adjustment
3. Button and LED Backrest Lock
4. Button Backrest Adjustment
5. Button and LED Height/Tilt Lock
6. Buttons Height Adjustment
7. Buttons Calf Rest Position
8. Buttons Mattress Platform Extension
9. Button and LED Foot Control Lock
10. Buttons Longitudinal Tilt
11. Button Cardiac Chair Position
12. Buttons Lateral Tilt
13. Button Trendelenburg Position
14. LED Mains Power
15. LED Battery Charge Status
16. Button CPR (Resuscitation) Position
17. GO Button
To set position:
Activate the keypad by pressing the GO button.
Press and hold corresponding button until desired position is reached.
