SCPC System • Replacing components
CP_SEM_60-03-00.002 69
6.9.3 Backplane circuit board (ZBP 2004)
Replacing fuses

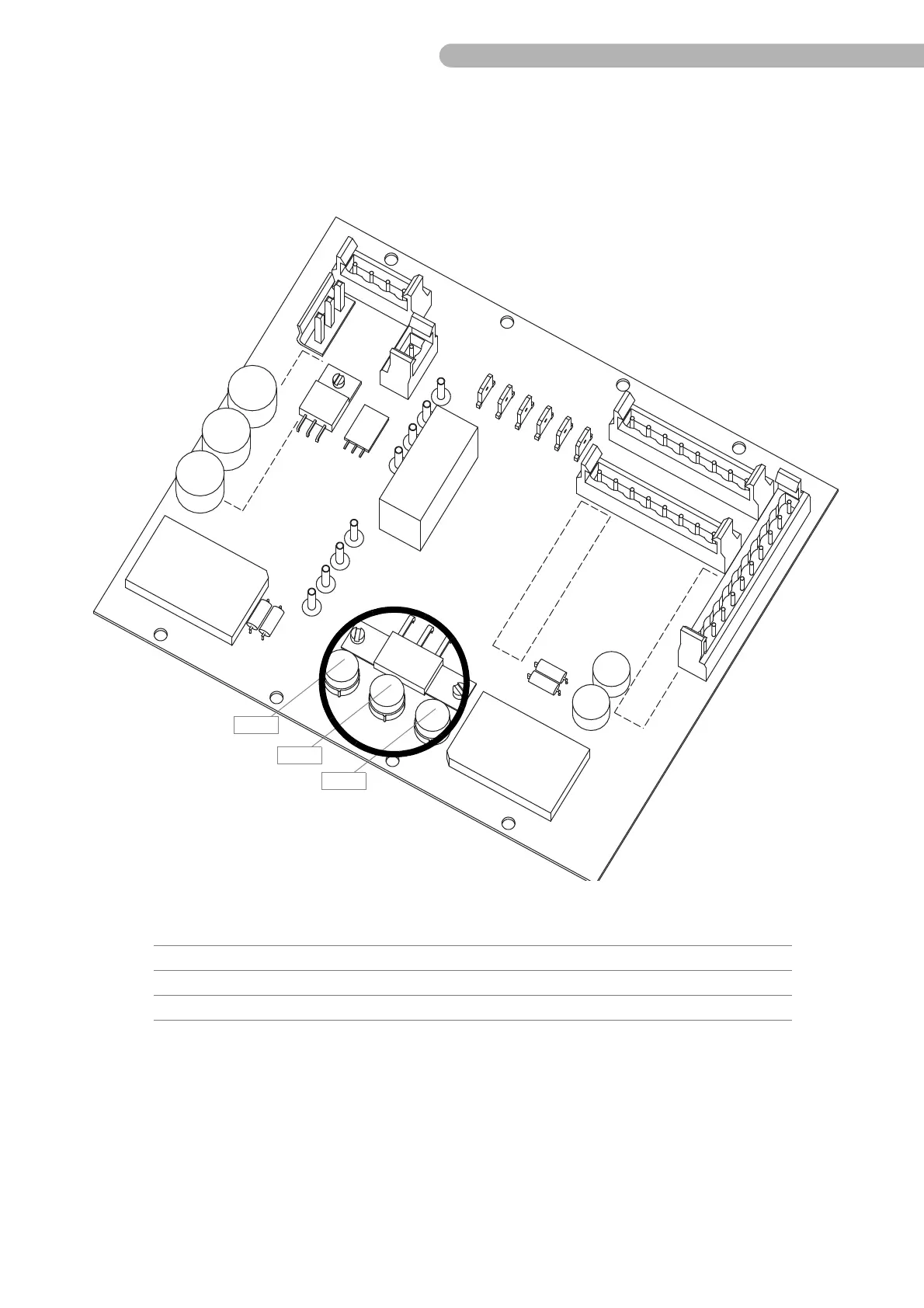

fig. 40: Backplane circuit board fuses
!
Only replace the fuses with the fuses of the same type and specifications! Otherwise damage may be
caused to the SCPC System.
Description Number SP number
C 22 Miniature fuse 1 A, slow-blow (+ 12 V DC supply) F 1 93-510-039
C 23 Miniature fuse 1 A, slow-blow (± 12 V DC supply) F 2 93-510-039
C 24 Miniature fuse 1 A, slow-blow (5 V DC supply) F 3 93-510-039
