CHAPTER 1: BASIC NOTIONS 9
QUICK LOAD SERVO 80 S2

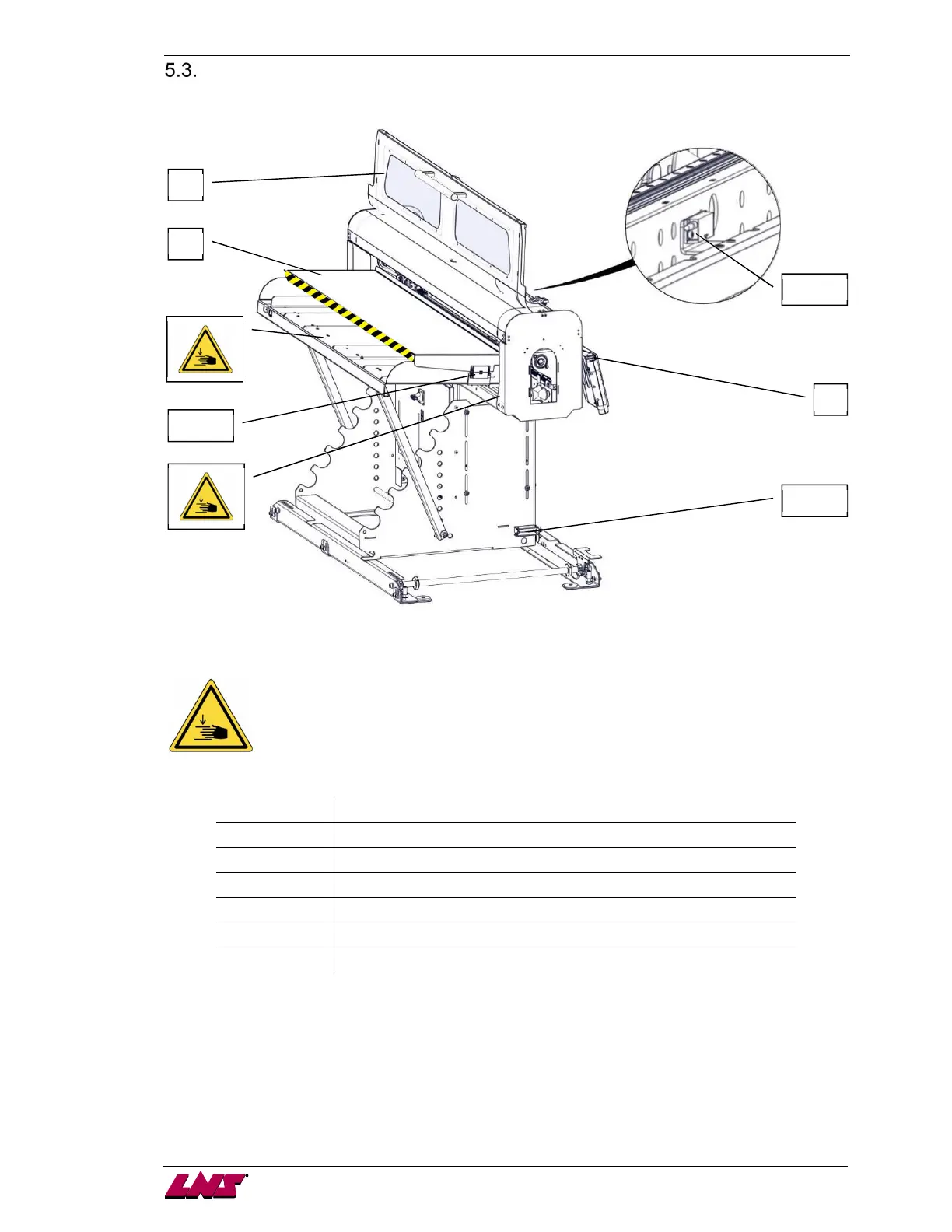

Layout of the safety elements on the bar feeder
This sign indicates that safety measures must be taken to avoid possible fingers/hands
crushing.
Designation Description
A Main access cover
B Protection cover for magazine table
C Emergency stop push button
SQ10 Safety switch of the main access cover
SQ11 Safety switch of the protection cover for magazine table
SQ12 Safety switch of the retraction system
SQ10
SQ11
B
SQ12
C
A
