60 CHAPTER 5: GENERAL DESCRIPTION
QUICK LOAD SERVO 80 S2
7. ADDITIONAL SHAFT LOADING PUSHER (OPTION)
Please read the safety precautions described at the beginning of this manual before handling
the following devices.
Description
In combination with the shaft loading kit, an additional shaft loading pusher allows loading shafts of different
length.

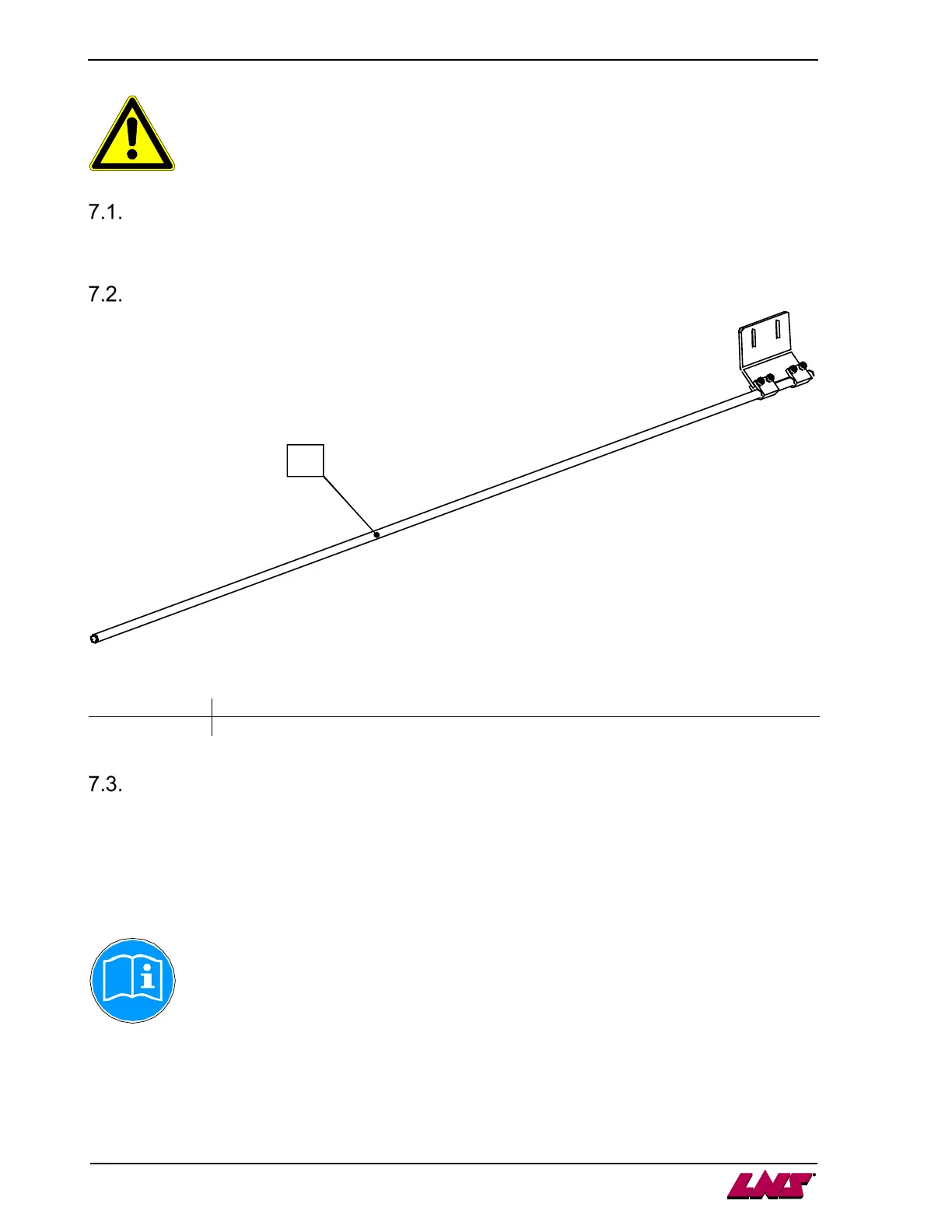

Layout of the elements
Designation
Description
A Shaft loading pusher
“One shot” shaft loading
In this work mode, the feeding pusher is not used. An extended loading pusher controls the loading.
When the loading table is in low position, the manual functions are disabled. For this type of work, the End of
bar position does not require a particular setting.
Lmin=100mm
The extended loading pusher is delivered as an option. The assembly and setting directions are
enclosed with the product.
A
