CHAPTER 5: GENERAL DESCRIPTION 53
QUICK LOAD SERVO 80 S2
4. FEEDING PUSHER
Description
Three feeding pushers are necessary to cover the entire range of the QUICK LOAD SERVO 80 S2 barfeed
system. Each pusher has a defined range of operation :
Pusher diameter Diameter Range
**6 mm (1/4") 6 mm - 15 mm (1/4" - 1/2")
12 mm (1/2") 16 mm - 27 mm (>2/3" - 1")
20 mm (3/4") 28 mm - 80 mm (>1" - 3")
* This ordering number corresponds to the complete pusher, with all of the elements indicated below.
When a feeding pusher is ordered for the first time, use this number.
** 2 extra roller supports, intended to bolster the support of bars of small diameter, are furnished with the
6 mm diameter pushers. Their placement on the loading table will be determined by the length of the bars to
be loaded.

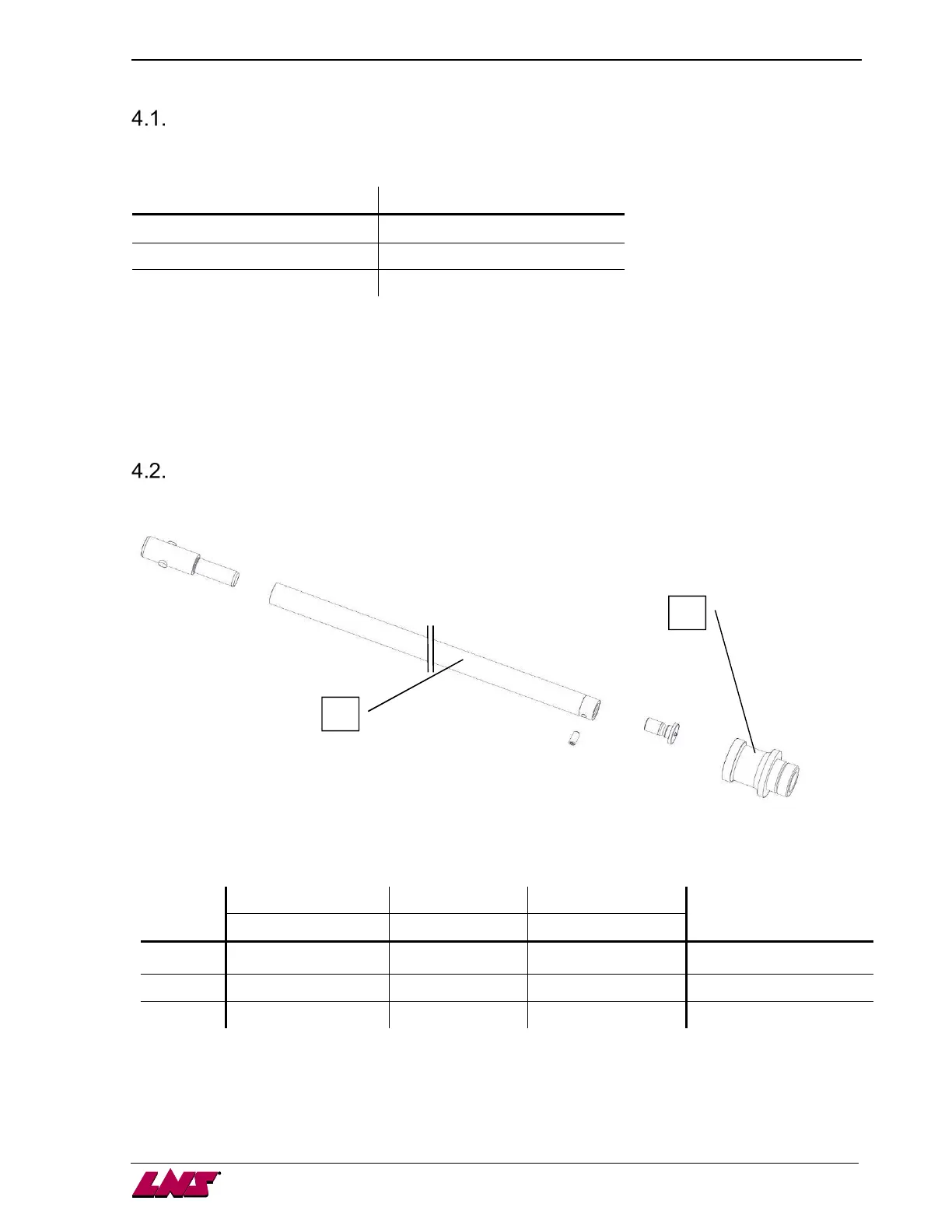

Layout of the elements
Des.
6 (1/4") 12 (1/2”) 20 (3/4”)
Desc.
Ordering Nr Ordering Nr Ordering Nr
A
020.011.044 020.011.054 020.011.064
Pusher rod
E 020.11.094D/6 020.11.094D/12 020.11.094D/20 Guide bushing
A
E
