54 CHAPTER 5: GENERAL DESCRIPTION
QUICK LOAD SERVO 80 S2

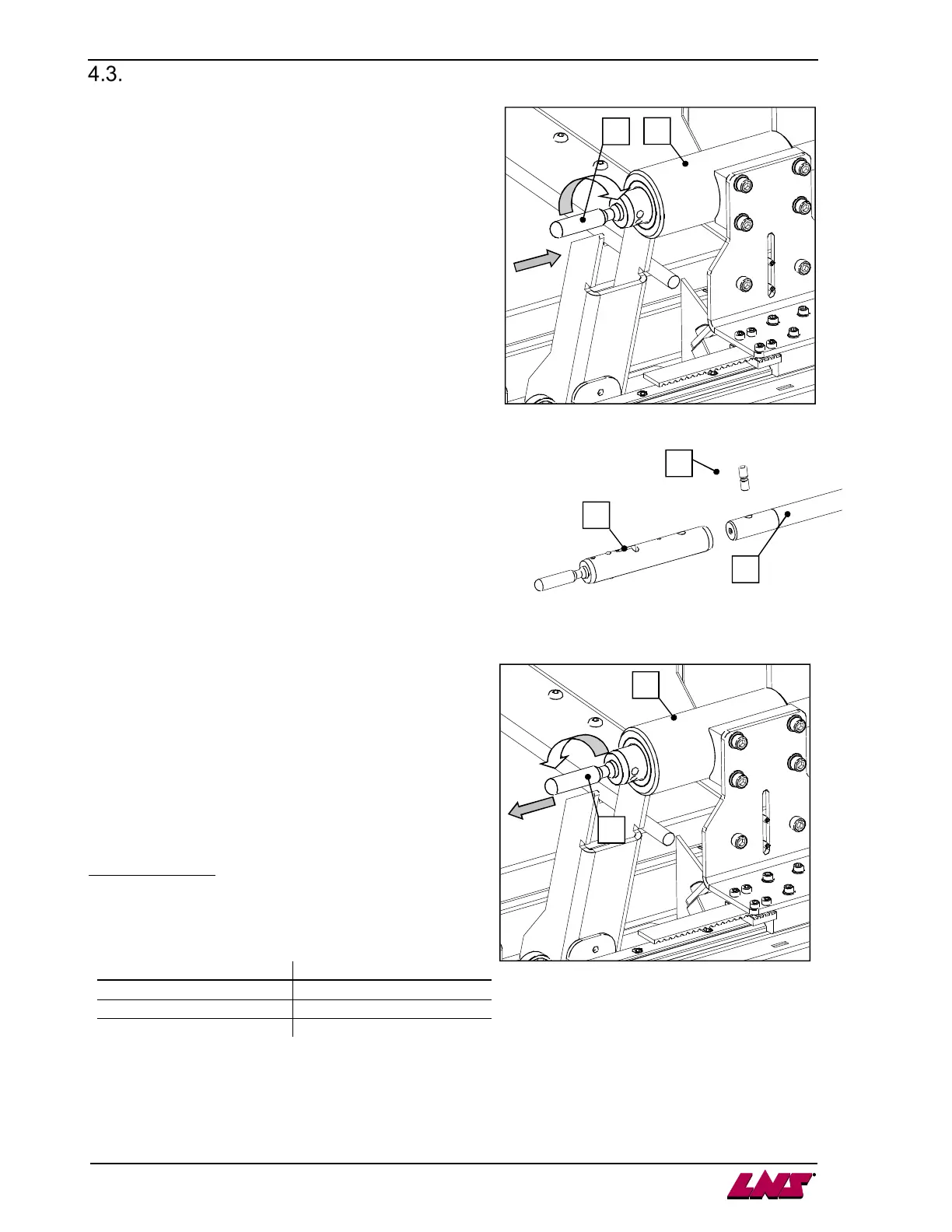

Pusher Replacement
Bring the loading channel into working mode position
(down position), then place the bar feed system into the
STOP mode (remote station).
Advance the carrier (A) so that the bayonet system (B) of
the pusher (C) is visible.
Press the bayonet's finger (B) toward the front of the bar
feeder, then turn the finger a ¼ of a turn clockwise. The
finger (B) must stay locked in forward position.
Pull the pusher (C) towards the bar feeder front to extract
it form the carrier (A).
Pull the white bush on the front guiding towards the bar
feeder rear to extract it and take the pusher (C) out of the
bar feed.
Disassemble the bayonet system (B) of the pusher by pushing
out the crossing shaft (D).
Assemble the bayonet system (B) on the new pusher (C) with
the corresponding shaft (D). Put the corresponding white bush
on the pusher (C).
Insert the pusher front into the bar feed pusher exit and
the bayonet system (B) into the carrier.
When the bayonet system (B) is in place in the carrier, turn
the finger ¼ of a turn back (counter-clockwise). The finger
(B) must stay locked in rear position and the pusher must
be totally locked into the carrier (A).
Slide the white bush towards the bar feed front (C) to fix it
into the bearing.
Available pushers:
Bar ø [mm]
Pusher ø [mm]
6…15 Ø 6
16…27 Ø 12
28…80 Ø 20
A
B
D
C
A
B
B
