20 CHAPTER 3: SETTING INTO OPERATION
QUICK LOAD SERVO 80 S2
1. TRANSPORTATION
Please read the safety precautions described at the beginning of this manual before handling
the following devices.
Description
Depending on its destination, the QUICK LOAD SERVO 80 S2 bar feed system may be delivered either on
a pallet, or packed in a wooden crate. When sea or air transports it, the second solution is recommended.
Weight 620 Kg 440 Kg
Length 2750mm 2250 mm
According to the centerline height
Unpacking
For practical and safety reasons, the bar feed system must be unpacked in a spacious, well-lit location.
Check to see that the lifting capacity of the hoisting crane, or lift truck, is adequate before
proceeding with the handling of the merchandise. No one should be near the hanging load,
or within the operating range of the overhead hoist/crane, forklift, or any other means used
for lifting and transportation.

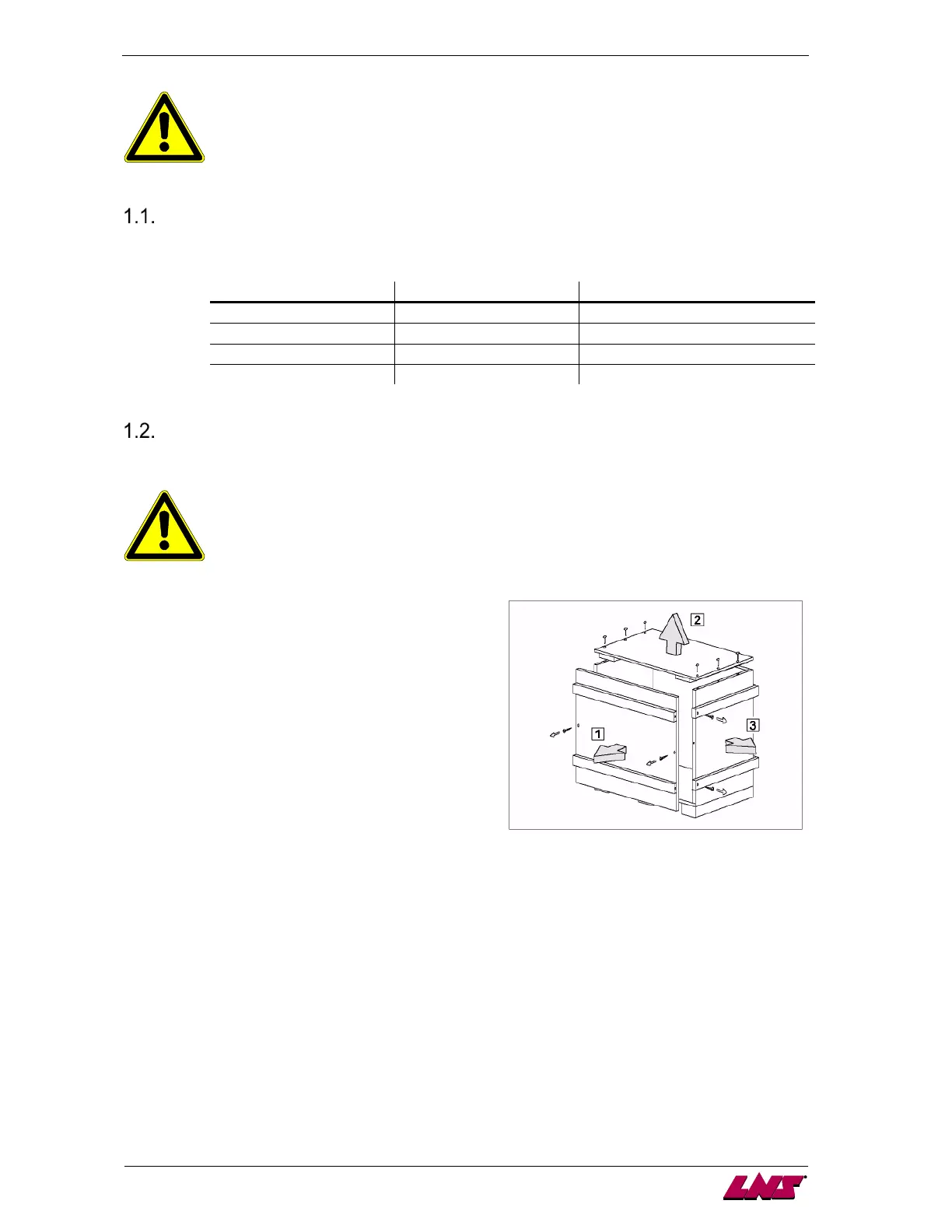

1) If the bar feed system is received in a crate, start
by unscrewing the front panel.
2) Remove the top.
3) Remove the side-walls.
From this point on, the bar feed system is unpacked in the
same way as when delivered on a pallet.
