CHAPTER 5: GENERAL DESCRIPTION 45
QUICK LOAD SERVO 80 S2
1. LOADING MAGAZINE
Please read the safety precautions described at the beginning of this manual before handling
the following devices.
Description
Placed to the side of the QUICK LOAD SERVO 80 S2 bar feed system, the loading magazine, 650 mm deep,
can receive bars of various lengths, between 350 mm and 1600 mm.
To facilitate the moving of the bars on the magazine table, the latter is equipped with a grate on which the bars
are placed. If, however, certain bars (i.e. profiled bars) cannot slide, the slope can be increased via an axle
located under the table. If, on the other hand, bars with small diameters overlap, then the slope can or must be
reduced.
A protection grid impedes access to the loading table during the automatic cycle. In manual mode, the grid,
mounted onto hinges, can be lifted, and thus allows the operator to conduct the necessary maintenance
operations.

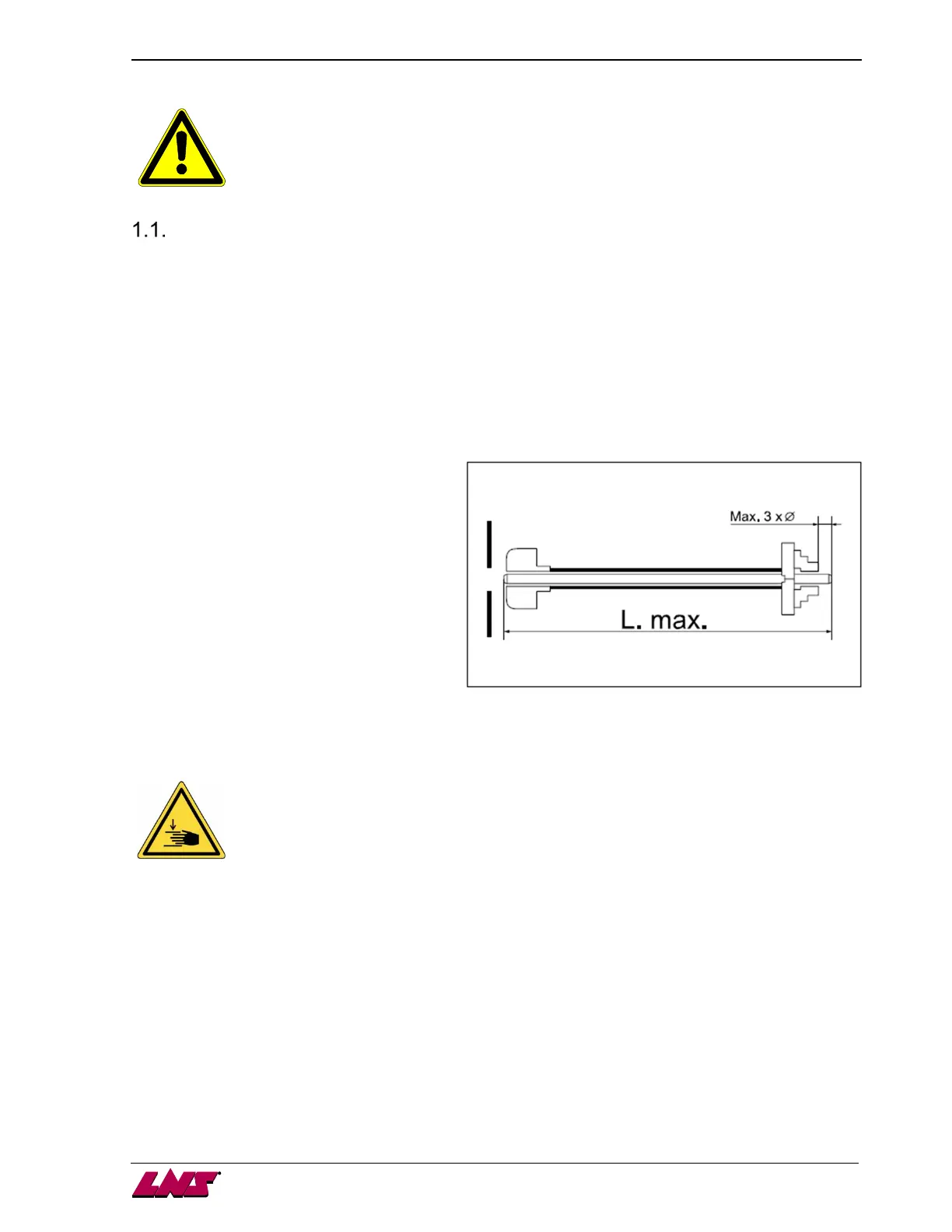

In no case should a rotating bar extend past
the rear of the lathe spindle. The lathe spindle
gives the maximum length the bar feed system
can load. The bar may not extend more than
three times its diameter beyond the front of the
lathe clamping device without support. A
limiter makes it possible to set the maximum
bar length on the table.
When they are on the loading table, stopping fingers laid out on an axle holds the bars. The position of the
fingers is set automatically when the loading diameter is entered into the bar feed system parameters.
Don not introduce finger/hand into loading zone of the stock bars or under the loading magazine
to avoid crushing risk for fingers/hands.
