28 CHAPTER 3: SETTING INTO OPERATION
QUICK LOAD SERVO 80 S2
3. ANCHORING TO THE GROUND

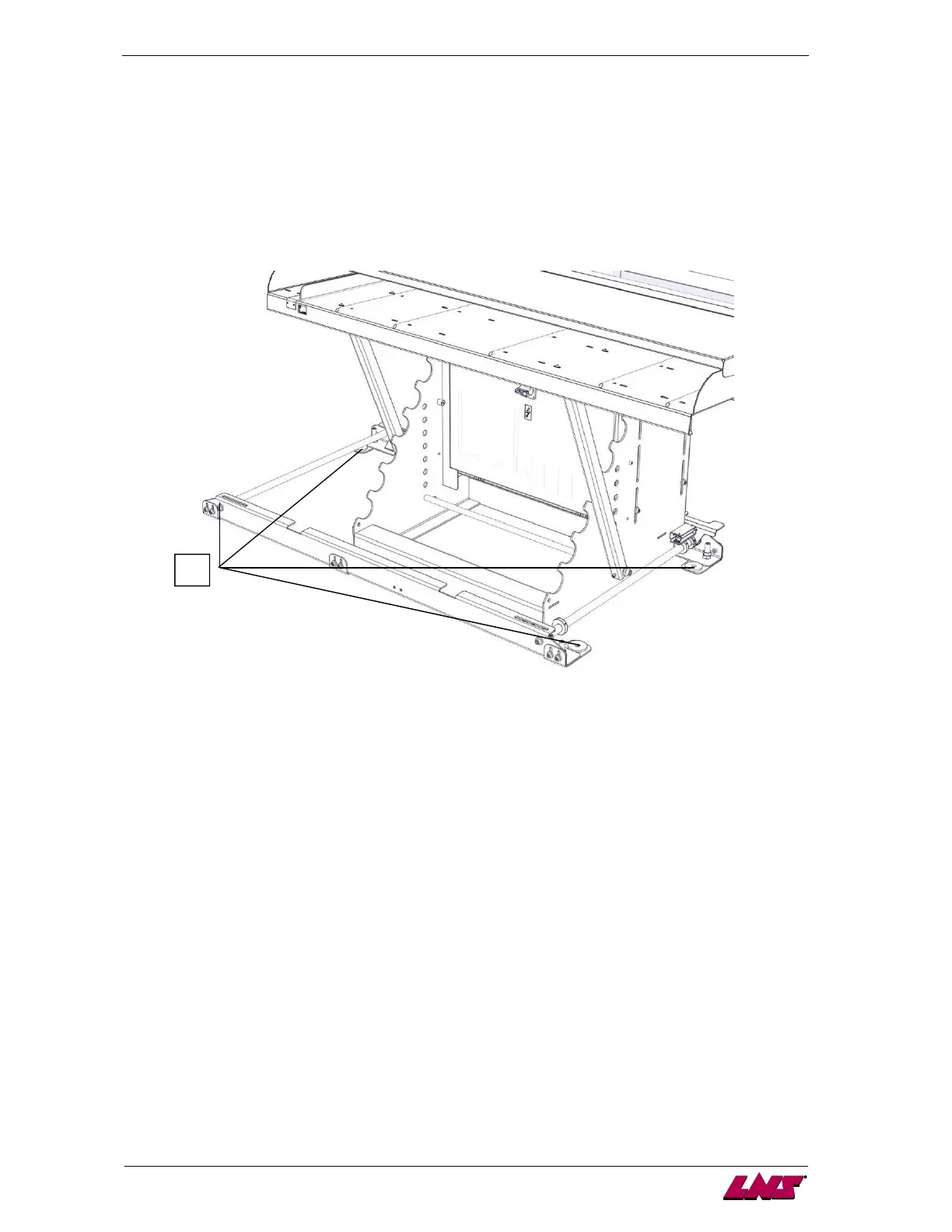

Once the bar feed system is in place, and perfectly aligned, it should be anchored to the ground to make it
stable. To accomplish this, 2 x 2 anchorage points (A) have been provided.
4 anchorage bolts (B) must be furnished by the client (Minimum M 10 x 100 mm (1/2" x 4")).
1/2" 13-5 anchor bolts come with a new barfeed from LNS.
Once the anchoring bolts are tightened, check the alignment again, and correct it if necessary.
4. CONNECTING
Once the bar feed system has been aligned and anchored to the ground, the bar feeder must be connected
to the interface of the lathe.
· For the electrical connection, please see Chapter 4 : electrics.
A
