CHAPTER 5: GENERAL DESCRIPTION 51
QUICK LOAD SERVO 80 S2
2. PUSHER CARRIER
Please read the safety precautions described at the beginning of this manual before handling the
following devices.
Description
An AC Mitsubishi motor drives the carrier for the feeding pusher and the loading pusher, with a built-in absolute
encoder.
By means of a timing belt, the SERVO motor starts drives the carrier. While the loading pusher is advancing
towards the spindle, the feeding pusher remains stationary. When the carrier returns to its home position, the
feeding pusher is locked, which, at that point, is attached to the carrier.
The locking/unlocking mechanism of the feeding pusher depends on the loading table position :
1. Loading channel in loading position (upper position)
The loading pusher faces the spindle, the feeding pusher is not locked.
2. Loading channel in working position (lower position)
The feeding pusher faces the spindle, the feeding pusher is locked onto the carrier.
The length of the feeding pushers is unvarying and does not depend on the length of the spindle.
To load tubes, profiled bars or short bars, optional accessories may be installed. Please contact your local LNS
representative.

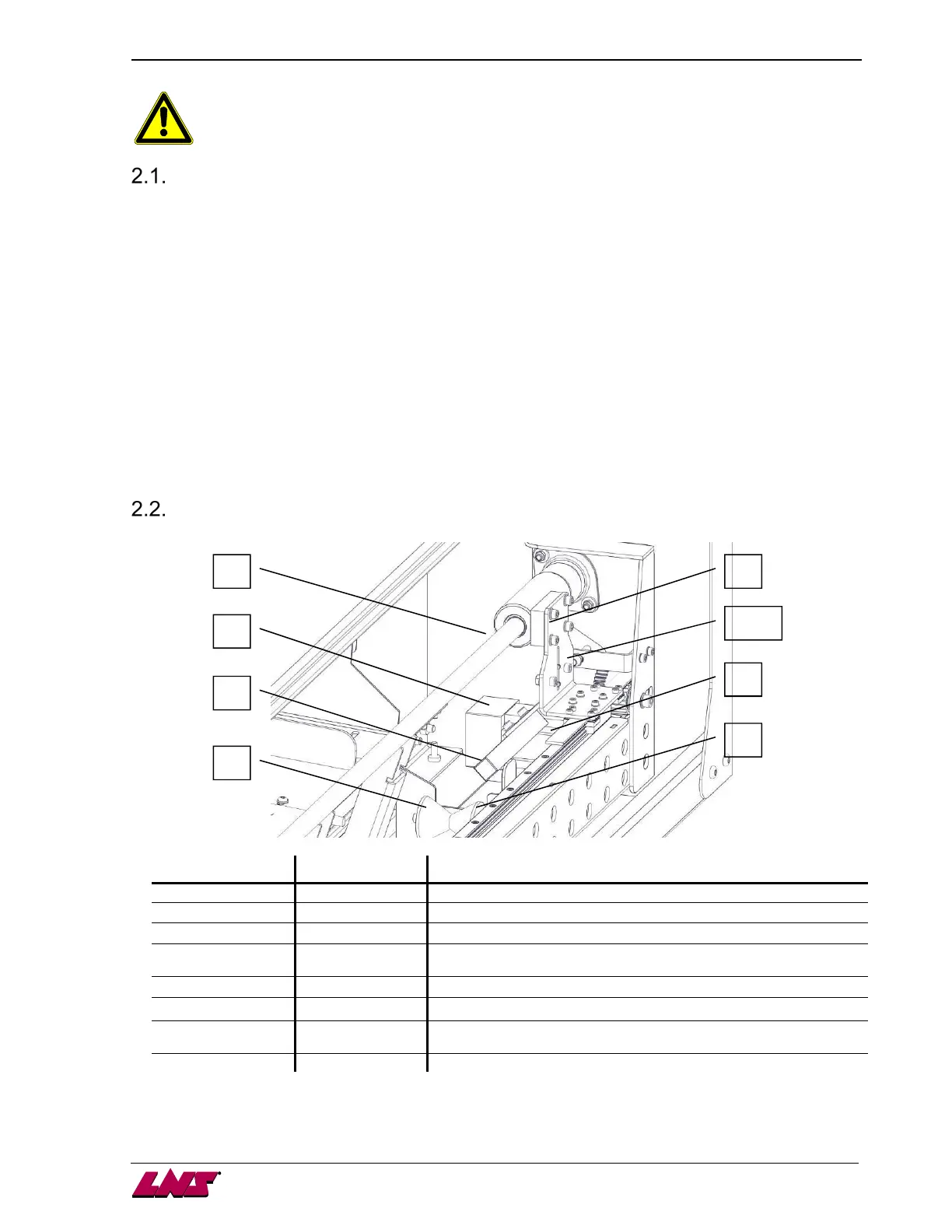

Layout of the elements
Designation Article Nr Description
A 020.05.404D Carrier
B 020.05.424B Loading pusher
C Feeding pusher
D
020.005.433
Linear unit
E 11.1550 Notched belt
F 020.02.314D Rolling bearing
M1
44.0106
Servo motor
SQ5 4.391 Carrier home position switch
C
M1
B
F
A
SQ5
D
E
