56 CHAPTER 5: GENERAL DESCRIPTION
QUICK LOAD SERVO 80 S2
5. RETRACTION
Please read the safety precautions described at the beginning of this manual before handling
the following devices.
Before handling the retraction mechanism, check to see that the interface cables between the
spindle and the bar feed system are long enough
Description
When a lathe is equipped with a bar feed system, certain elements (motors, spindle reduction tubes, etc.)
become inaccessible, and sometimes it is difficult, or even impossible, to proceed with their maintenance.
To facilitate these tasks, the QUICK LOAD SERVO 80 S2 is equipped with a retraction system, which allows
the operator to move the bar feeder.

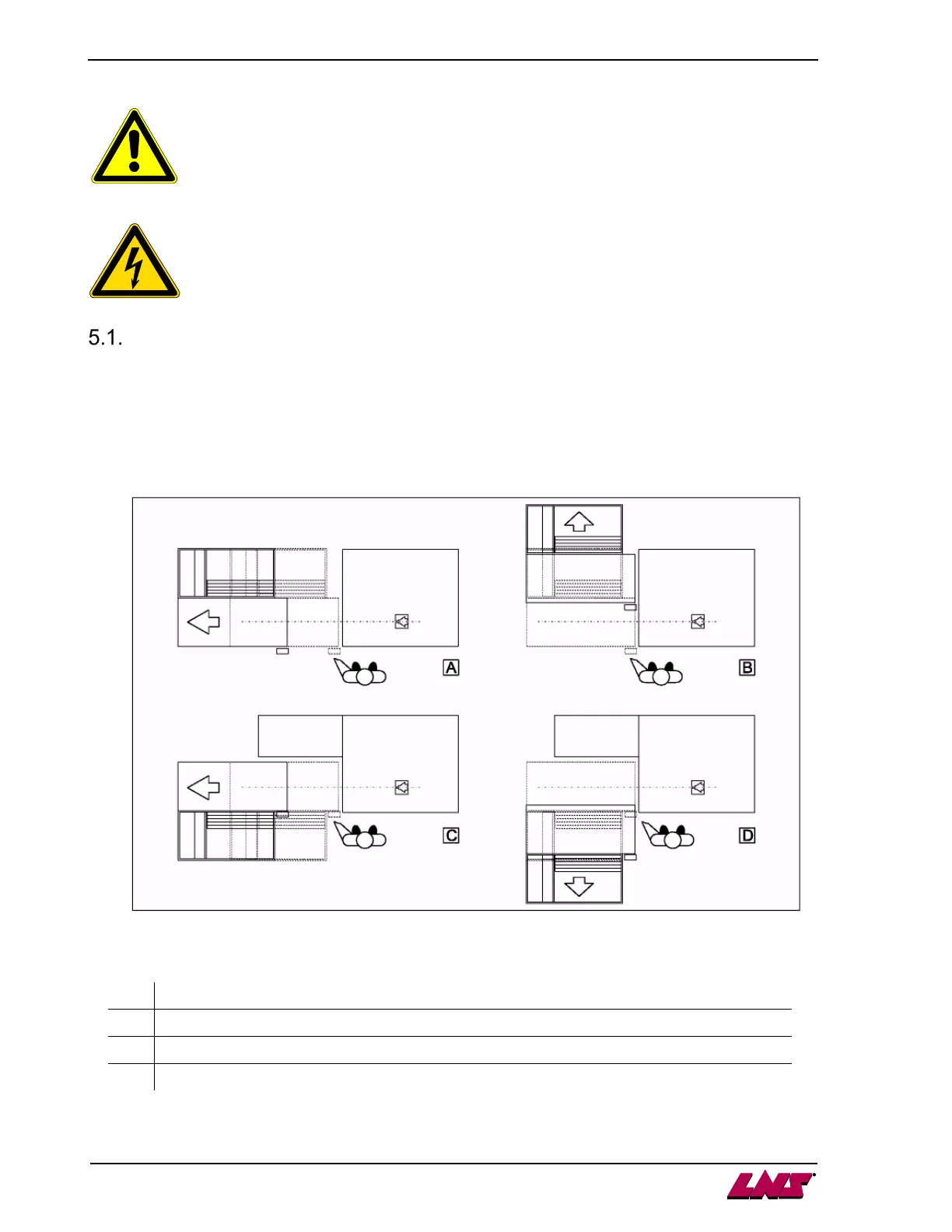

The retraction mechanism may be assembled as necessary, to ensure longitudinal or lateral movement.
The retraction mechanism may be assembled as necessary, to ensure longitudinal or lateral movement.
A Longitudinal retraction for Left/Rear Load
B Lateral retraction for Left/Rear Load
C Longitudinal retraction for Left/Front Load
D Lateral retraction for Left/Front Load
