CHAPTER 5: GENERAL DESCRIPTION 57
QUICK LOAD SERVO 80 S2

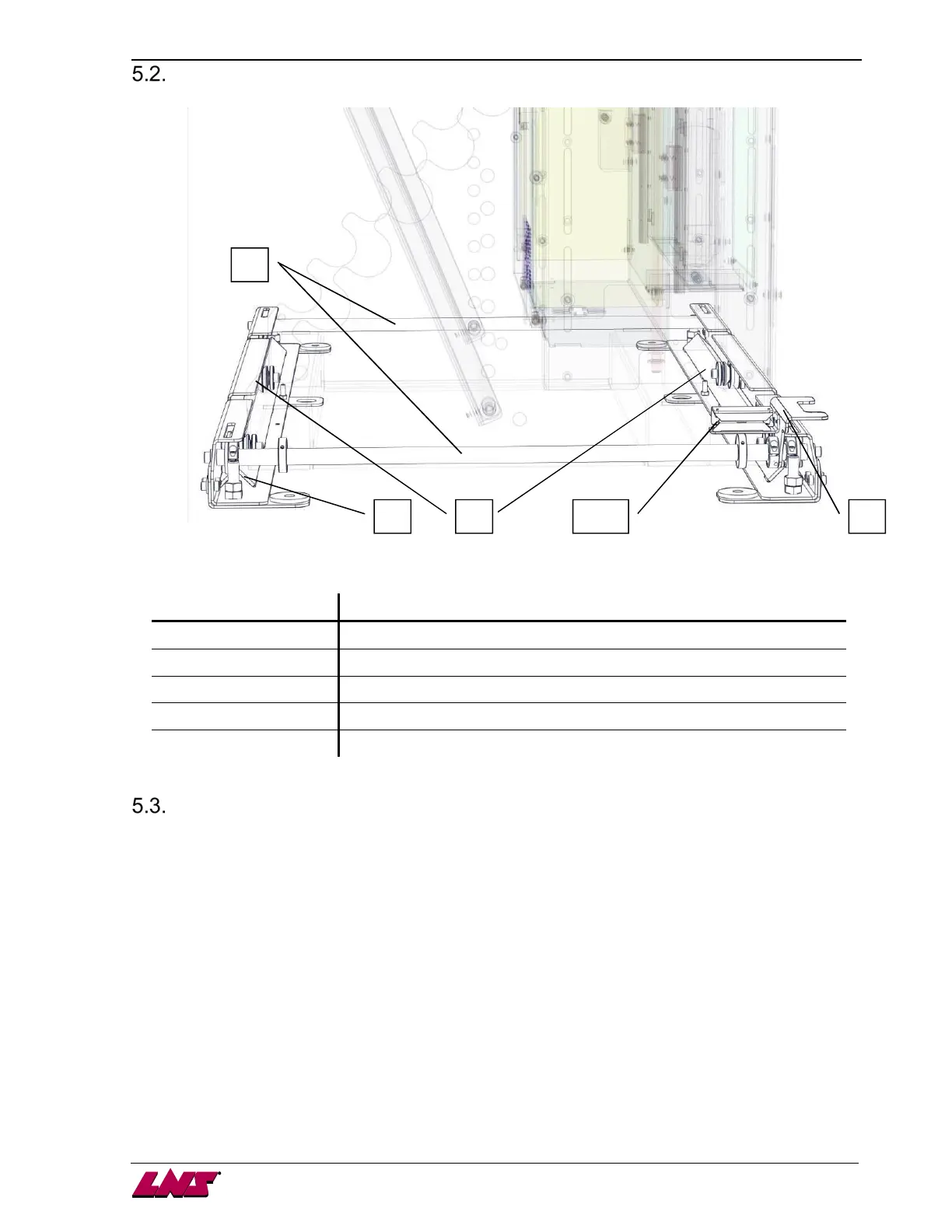

Layout of the elements
Designation Description
A Guiding rails
B Sliding wheels
C Latch handle
D Bracket (for lateral or longitudinal retraction)
SQ12 Retraction system in position switch
Use of the retraction
Mounted onto four sliding wheels (B), the bar feed system slides on two cylindrical rails (A) that keep it aligned
when it is in operational position. In this position, the bar feed system is fastened by two solid hooks (C).
A safety switch (SQ12) impedes any handling as long as the bar feed system is not in operational position.
A B C
D
SQ12
