CHAPTER 5: GENERAL DESCRIPTION 63
QUICK LOAD SERVO 80 S2
10. ORIENTATION KIT FOR SQUARE STOCKS (OPTION)
Please read the safety precautions described at the beginning of this manual before handling
the following devices.
Description
A system mounted at the front exit of the bar feed allows an accurate orientation of square bar stocks to 90°,
making the positioning of the bar stock easier into the clamping device of the lathe.
The limiter prevents the bars from falling directly onto the orientation kit, and allows the bars to rotate and be
correctly oriented when pushed forward.

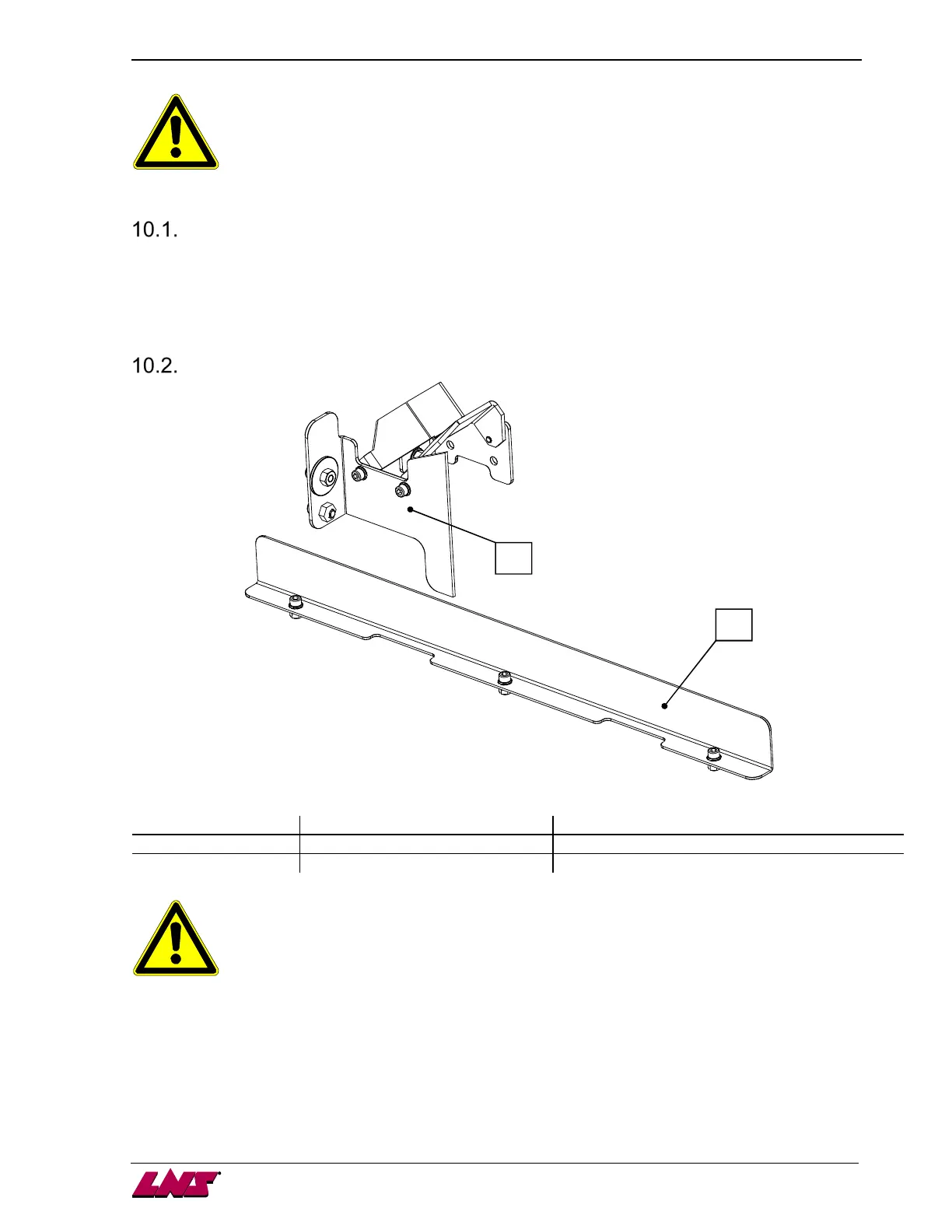

Layout of the elements
A Orientation part 020.13.112
B Limiter 020.13.123B
This option limits the maximum bar stock length to 1555 mm.
B
A
