32 CHAPTER 4: ELECTRICS
QUICK LOAD SERVO 80 S2

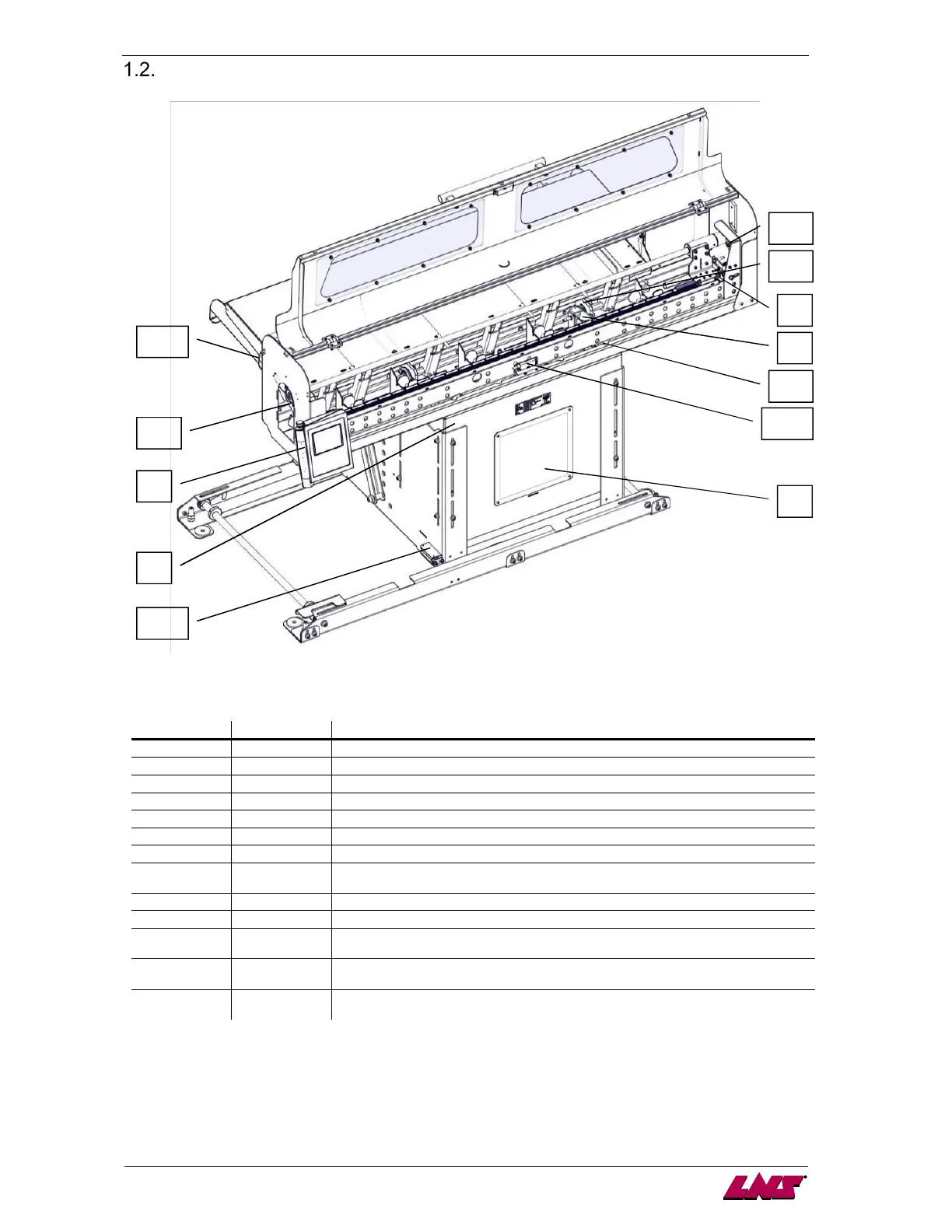

Layout of the electrical elements on the bar feed system
Designation
Article No
Description
A 4.869 Remote control station
B - Control cabinet
M1 44.0106 Servo motor
M2 44.0239 Loading table motor (not visible)
M3 44.0238 Diameter adjustment motor
QS1 4.242 Main power switch (not visible)
SQ1 4.391 Loading table lower position switch
SQ3
4.772
Measuring cell
SQ
4
4.391
Diameter adjustment motor origin (M3) switch
SQ
5
4.391
Servo motor origin switch
SQ10
4.894
Protection cover safety switch
SQ11
4.894
Loading magazine cover safety switch
SQ12
4.894
Retraction system in position switch
A
B
M1
M3
M2
SQ1
SQ3
SQ4
SQ5
SQ10
SQ11
SQ12
