CHAPTER 5: GENERAL DESCRIPTION 47
QUICK LOAD SERVO 80 S2
Slope of the magazine table
When profiled bar stock is loaded, and the bars
do not slide easily, the slope of the table may be
increased.

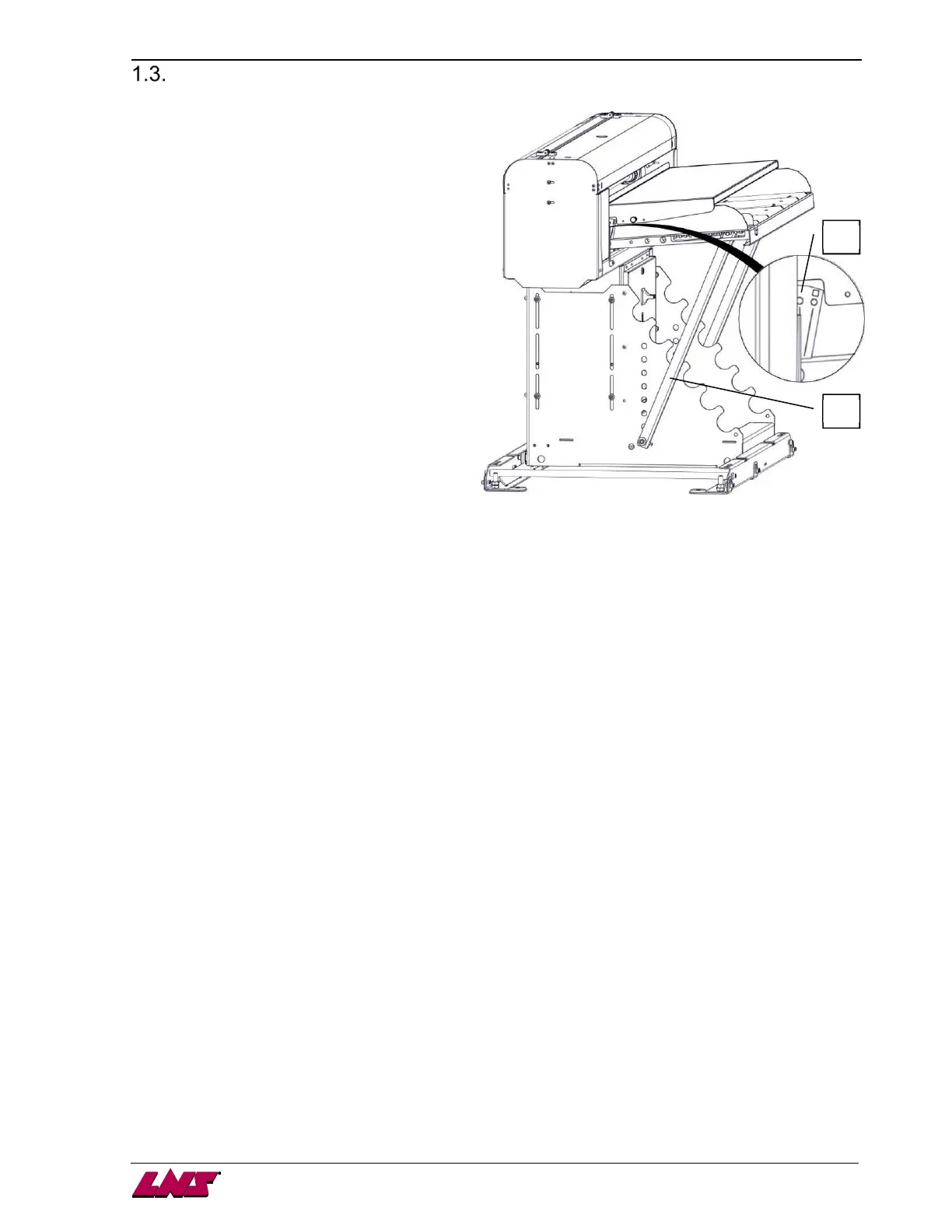

A reference mark (A) indicates two positions:
one position for round bars and another of
greater slope, for profiled bars.
Lifting the loading magazine and moving the
locking leg (B) on the notches of the loading
magazine will vary the slope.
A
B
