CHAPTER 5: GENERAL DESCRIPTION 49
QUICK LOAD SERVO 80 S2
1.4.2. Loading variable bars

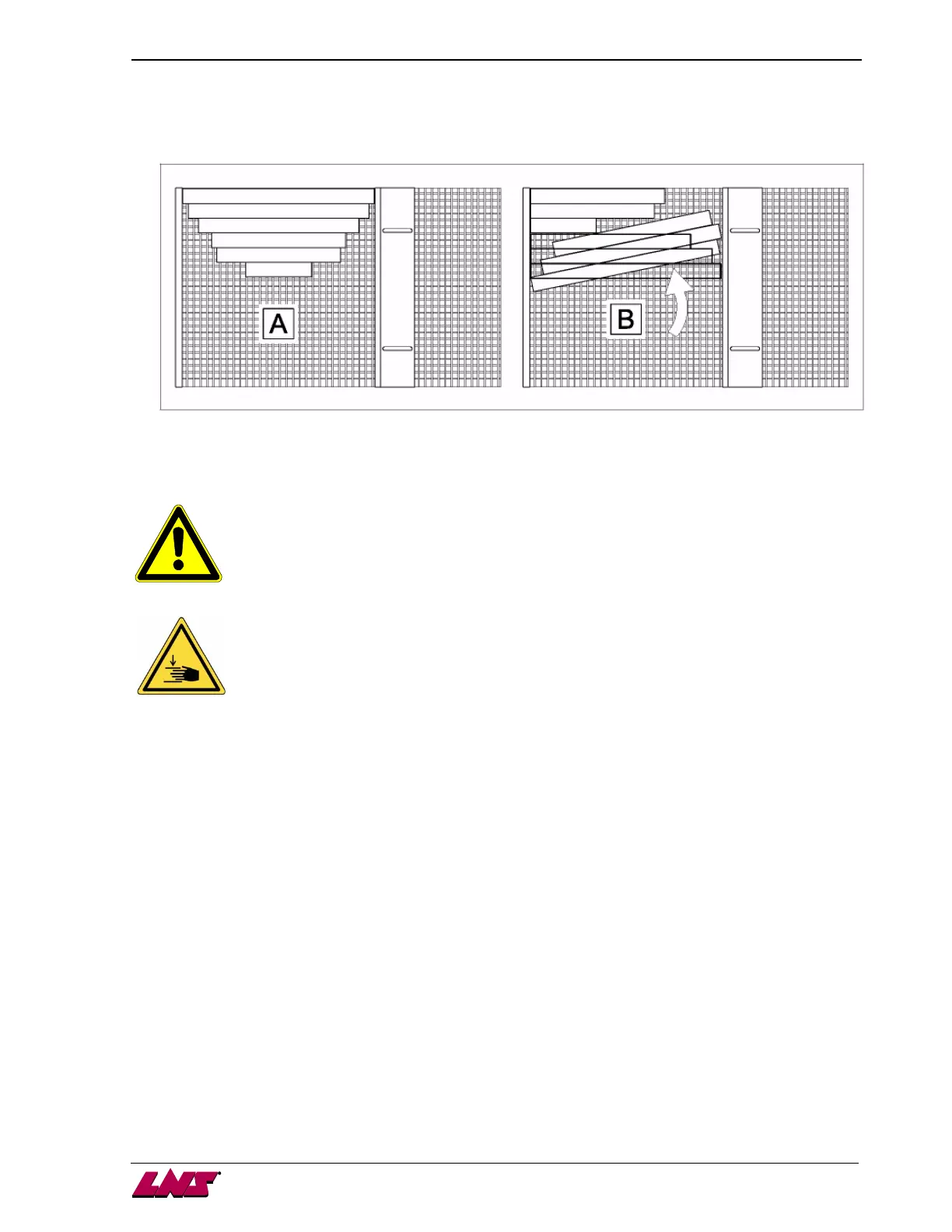

Although the QUICK LOAD SERVO 80 S2 bar feed system can load bars of various lengths it is advisable to
place them on the loading table in order of decreasing length, and to center them (A) between the limiters so
that they do not go side-ways (B).
1.4.3. Loading constant bars
QUICK LOAD SERVO 80 S2 may also be used as a loading magazine for piston rods, axles, or forged parts.
A corresponding interface, however, is required if one wishes to attain minimum loading times.
These possibilities should be studied beforehand and discussed with the manufacturer of the
lathe or the Distribution Company.
Manipulate with precaution the bars to be loaded to avoid crushing risk for fingers/hands.
When the parts are of the same length, it is possible to move the rear limiter to decrease the loading time.
1. Lift the protection cover.
2. Place a bar on the loading table, leaning against the front limiter.
3. Move the rear limiter to 1 mm behind the bar.
Check that the limiter is parallel by rolling the bar on the table.
4. Tighten the lock screws.
5. Close the protection cover.
6. A parameter must be changed, see chapter 7
To facilitate the moving of the bars on the magazine table, the latter is equipped with a grate on which the bars
are placed. If, however, certain bars (i.e. profiled bars) cannot slide, the slope can be increased via an axle
located under the table. If, on the other hand, bars with small diameters overlap, then the slope can or must be
reduced.
