The packaging consists of
• A wooden pallet with specially shaped foam parts
• The cardboard box for accessories
• A packaging strap, edge protection, buckle and brackets to fix the cardboard box to
the X-bay
• The outside wooden box with a lid, packaging straps
• Transport lock devices
• Cardboard strips to block the axes
• Cardboard strips to protect the worktable

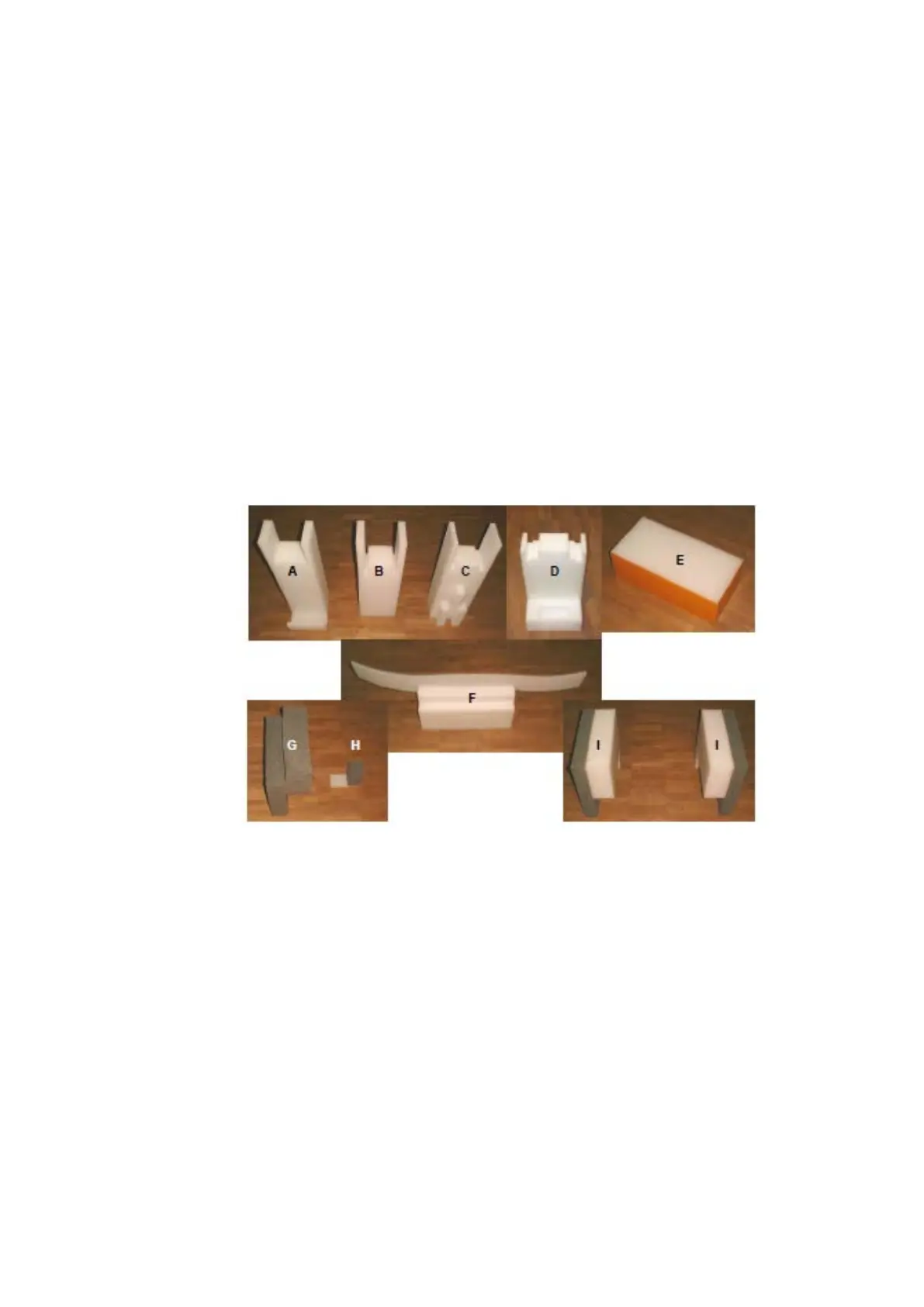

• Foam blocks as shown in the figure:
A – Foam block for RoMa arm (example
shows block for RoMa long)
B – Foam block for LiHa arm
C – Foam block for PnP arm
D – Foam block for MCA
E – Foam block with adhesive tape to be
placed instead of arm
F – Diluter support block
G – Foam block for Front Loading Id
H – Support below Front Loading Id
