PyroTec™ PRO Hardw are User’s Manual, V1.2 58
RT-MN024-1.2 02/21
the PyroTec™
PRO
To pack the PyroTec™ PRO, proceed as follows:

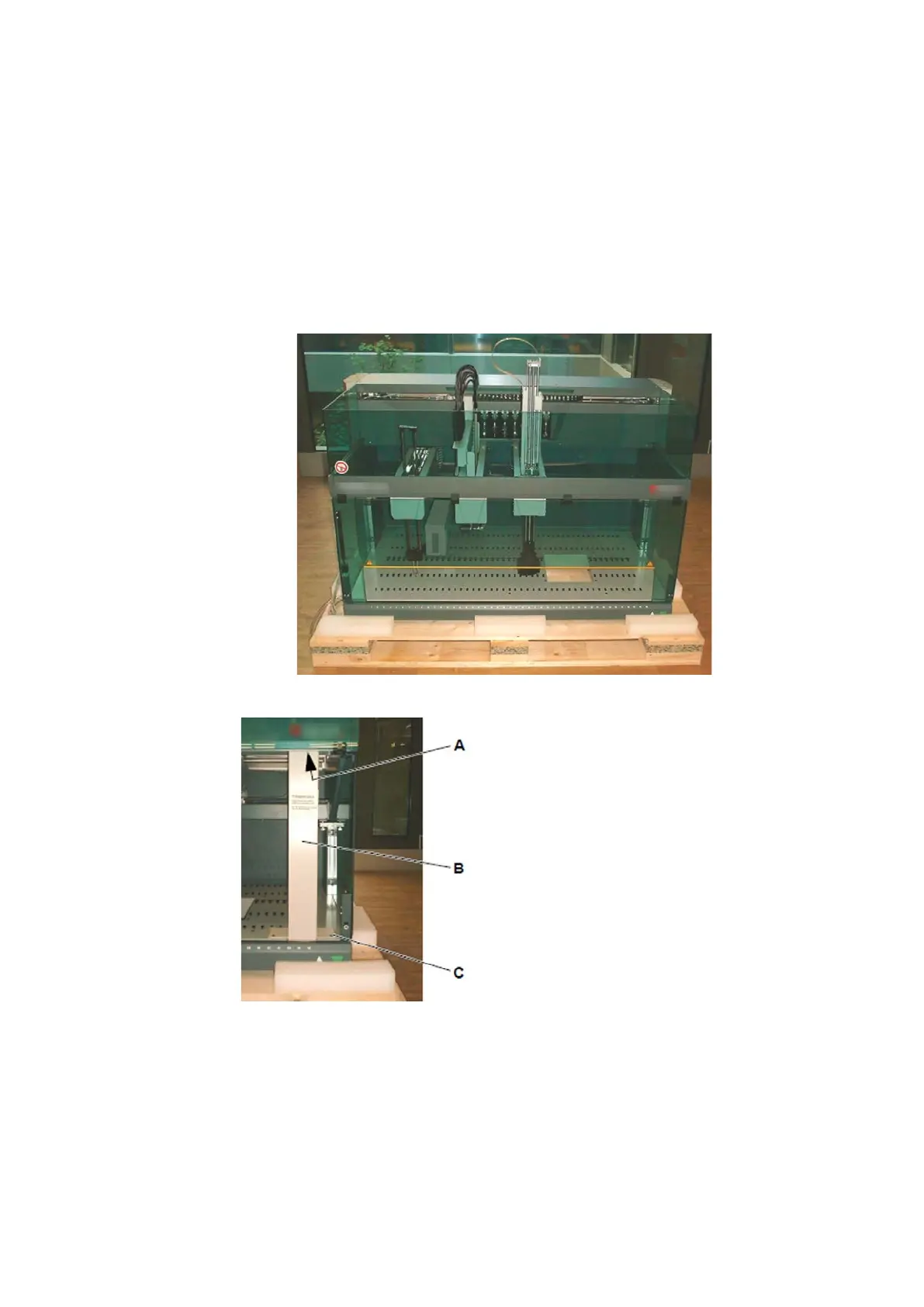

• Put the PyroTec™ PRO on the pallet as shown in the figure:
Locks
• Mount the transport locks (B) on either
side of the PyroTec™ PRO.
o Lower part: Fix the transport
lock with the screw (C).
o Upper part (A): Engage the nut
for T-slots in the arm guide and
tighten the screw of the
transport lock.
