Connecting BNC Cameras
14
Connecting BNC Cameras

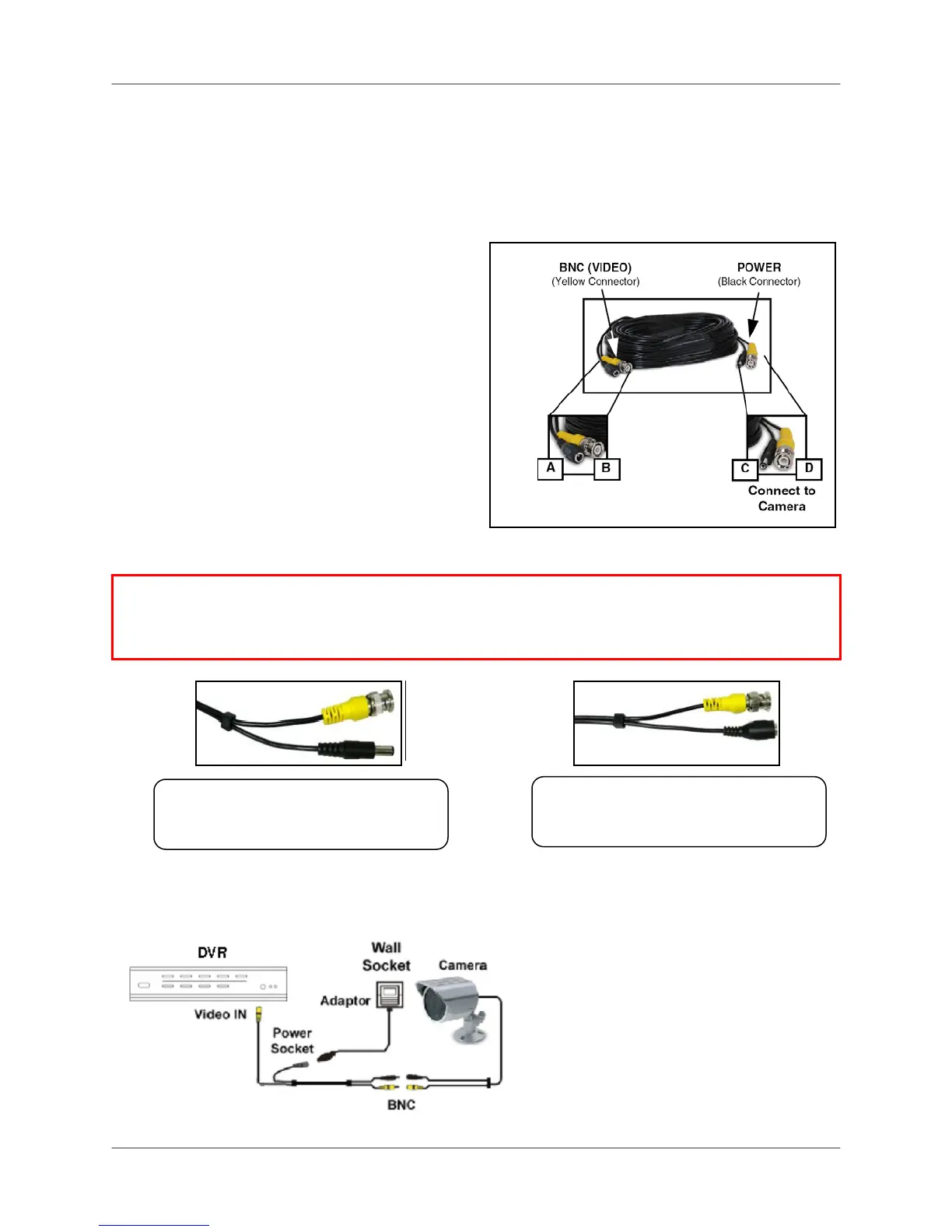

1. Connect the extension cable to the Camera and system:
Camera Connection Diagram
A. Connect the Barrel Power connector to
a power adaptor.
B. Connect the BNC connector to an
available BNC Port on the DVR.
C. Connect the Male Power connector to
the Camera.
D. Connect the BNC connector to the
Camera.
2. Connect the Power Ada
tor to a wall outlet.
Male Power Port - The male power
port end of the Extension cable
connects to the Camera.
Female Power Port - The female
power port end of the Extension cable
connects to the Power Adaptor.
Connect to DVR and
Power Adaptor
ATTENTION: The ends of the extension cable are NOT the same - one end has a Male power port,
and the other has a Female power port. Before permanently running the Camera Extension Cable,
make sure that the cable has been oriented between the Camera and the unit correctly.
