Lorex L19WD800 Series - Connecting DIN Cameras

L19WD Series
15

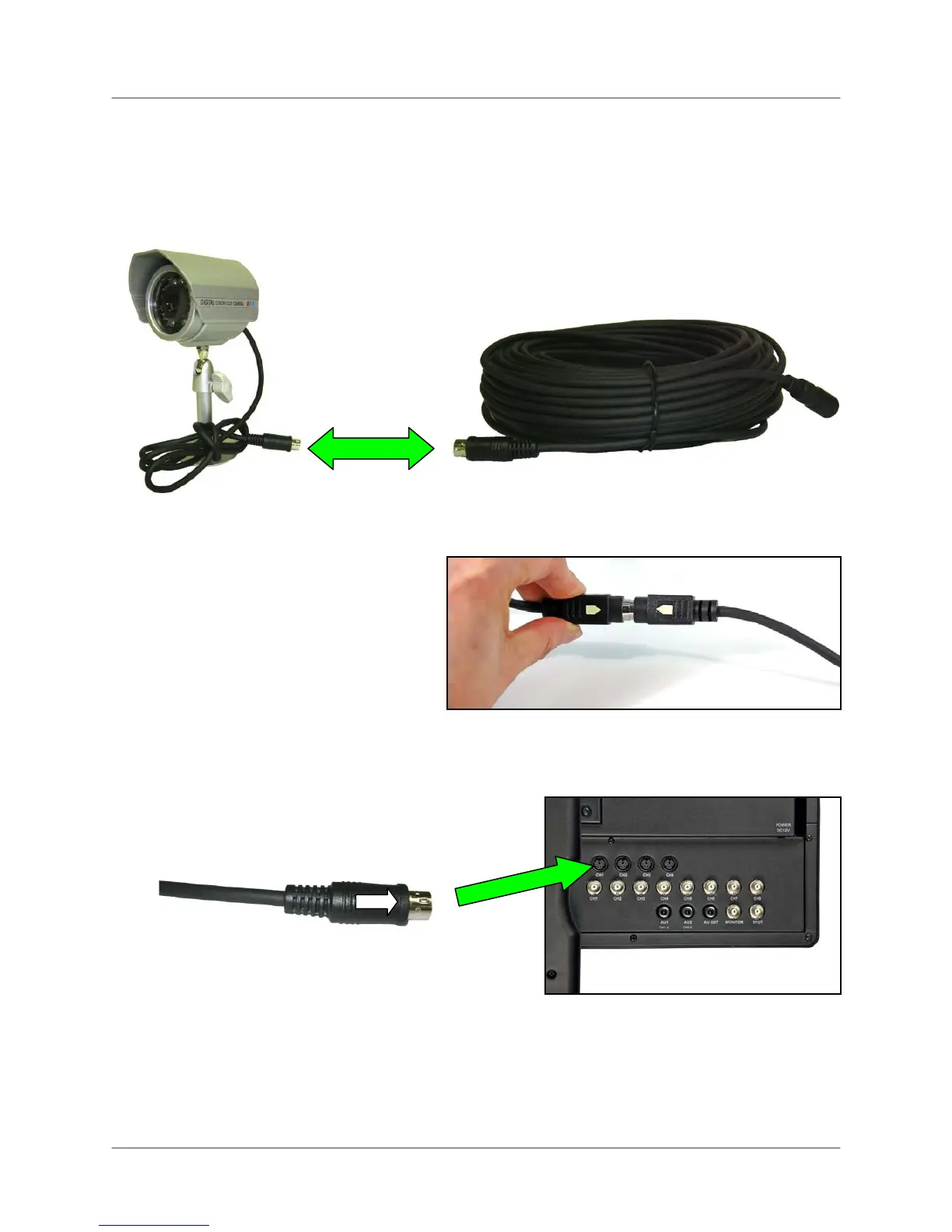

Connecting DIN Cameras*
1. Connect the female end of the extension cable (not included) to the camera.
Note: Ensure that the arrows on the DIN
Camera Cable and the DIN Extension
Cable point together when connecting the
cable. If the pins in the DIN Cable are
bent, the camera will not function.
2. Connect the male end of the extension cable to an open DIN camera input on the rear panel
of the system.
Note: The arrow on the DIN camera should be facing up when connecting the DIN
Extension Cable to the system.
*DIN cameras are not
included with this s
y
stem
