L19WD Series
73

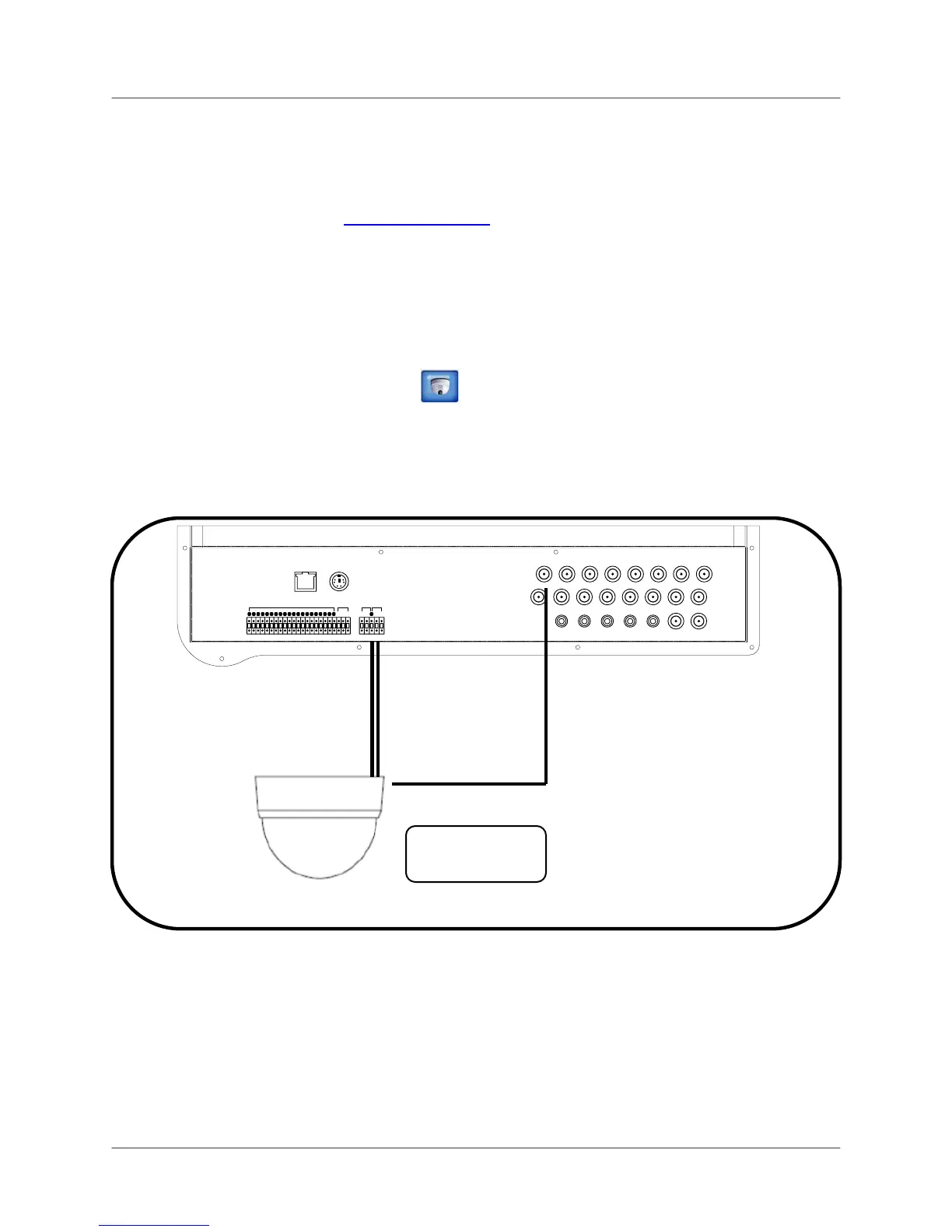

Appendix 10: Connecting PTZ Cameras
You can connect PTZ cameras (not included) to the PTZ Control Block on the rear panel of the
system. You can configure the PTZ Cameras in the Camera Menu of the system. Additional
PTZ Cameras are available at www.lorexcctv.com
Installing a PTZ Camera:
1. Connect the Transmit Cable to the TX port of the PTZ block on the rear panel.
2. Connect the Receive Cable to the RX port of the PTZ block on the rear panel.
3. Connect the PTZ camera to a BNC Channel.
4. From the System Main Menu, click
and then click PTZ to configure the camera.
Note: The PTZ camera settings depend on the Type of Camera - refer to the specific
Camera Manual for your brand and model of PTZ Camera.
PTZ CAMERA
(Not Included)
ETHERNET
ALARM IN RELAY PTZ RS-232
PS/2
POWER
DC12V
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12 CH13 CH14 CH15 CH16
AU1 AU2 AU3 AU4
CH1-4 CH5-8 CH9-12 CH13-16
AU OUT MONITOR SPOT
1 2 3 4 G 5 6 7 8 G 9 101112 G 13141516 G
NO NC
D+ D- G TX RX
COM
