Chapter 8 Built-in High-speed Counter Function
8-15

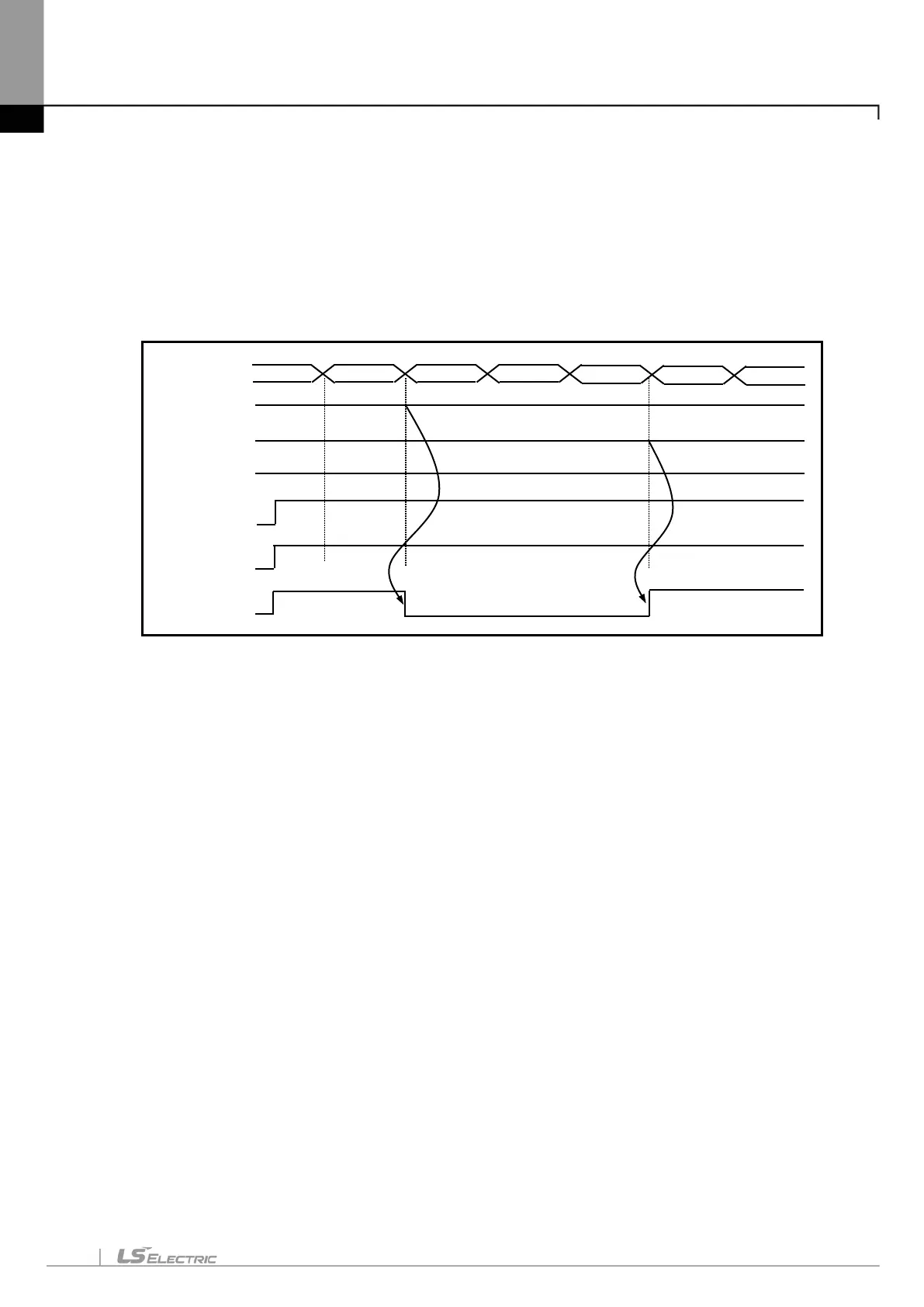

7) Mode 6 (Count value ≤ Min. set value of Compared Output 0 or Count value ≥ Max. set value
of Compared Output 0)
■ If present count value is less than or equal to the minimum set value of compared 0 and greater
than or equal to the maximum set value of compared 0, output is sent out, and if count value
increases/decreases to exceed compared value’s range, output is not sent out.
123456
123457
123458
123459
123460
123461
123462
123457
Count value
Compared Output
0
M
in. set value
Compared Output 0
Max. set value
External output
(in case of designated
123461
Compared O
utput 0
output signal
Compared O
utput 0
output Enable
