Chapter 8 Built-in High-speed Counter Function
8-14

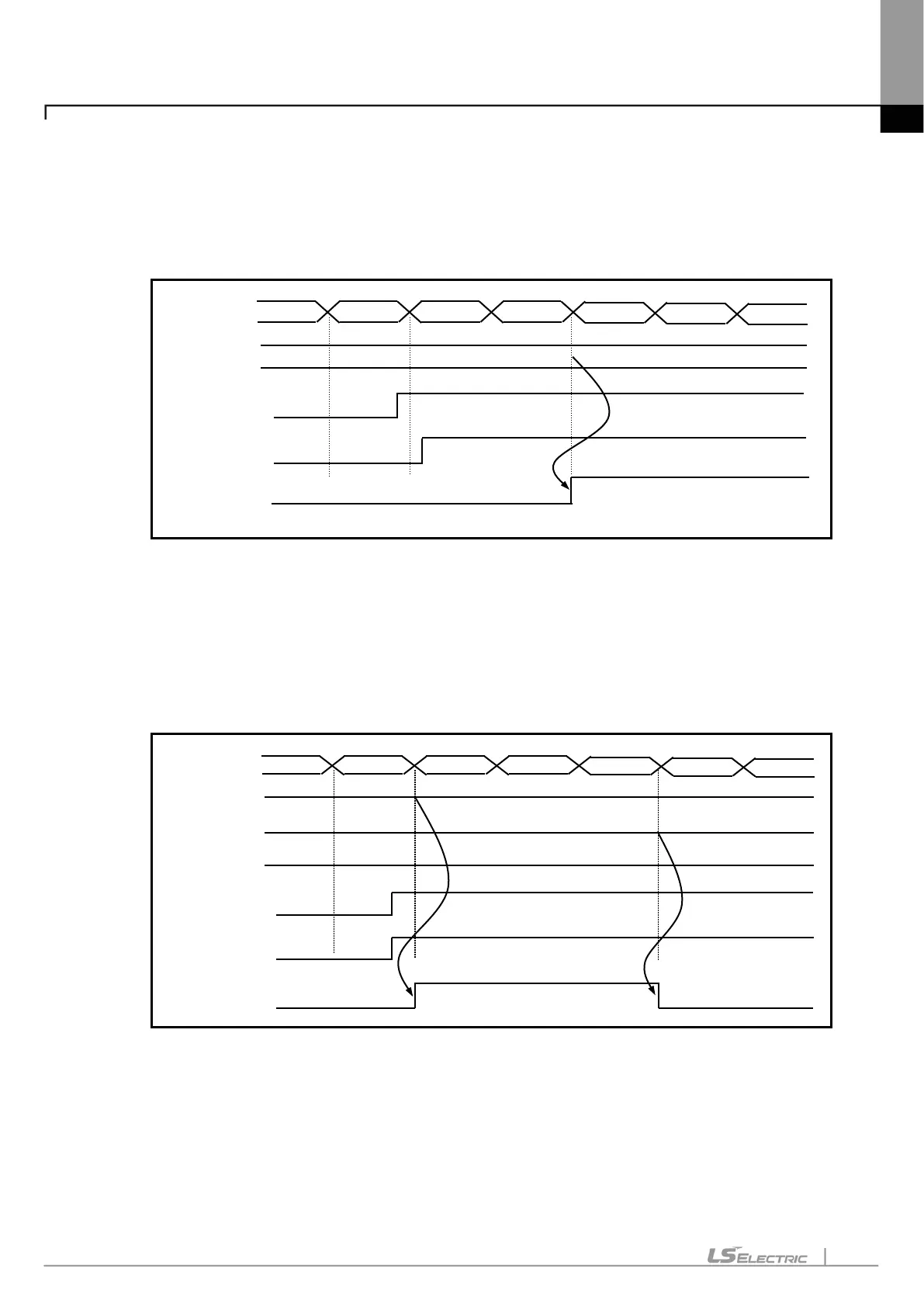

5) Mode 4 (Count value > Compared Output value)
■ If present count value is greater than the minimum set value of compared output 0, output is sent
out, and if count value decreases to be less than or equal to the minimum set value of compared
output 0, output is not sent out.
6)
Mode 5
(Section comparison: Min. set value of Compared Output 0 ≤ Count value ≤ Max. set value of
Compared Output 0)
■ If present count value is greater than or equal to the minimum set value of compared output 0
and less than or equal to the maximum set value of compared output 0, output is sent out, and if
count value increases/decreases to exceed compared value’s range, output is not sent out.
123456
123457
123458
123459
123460
123461
123462
123459
Count value
Compared
Output 0
Min. set value
External outp
ut
(
in case of designated output)
Compared O
utput 0
output signal
Compared O
utput 0
output
Enable
123456
123457
123458
123459
123460
123461
123462
123458
123460
Count value
Compared Output
0
M
in. set value
Compared Output 0
Max. set value
External output
(
in case of designated output)
Compared O
utput 0
output signal
Compared O
utput 0
output Enable
