Chapter 8 Built-in High-speed Counter Function
8-13

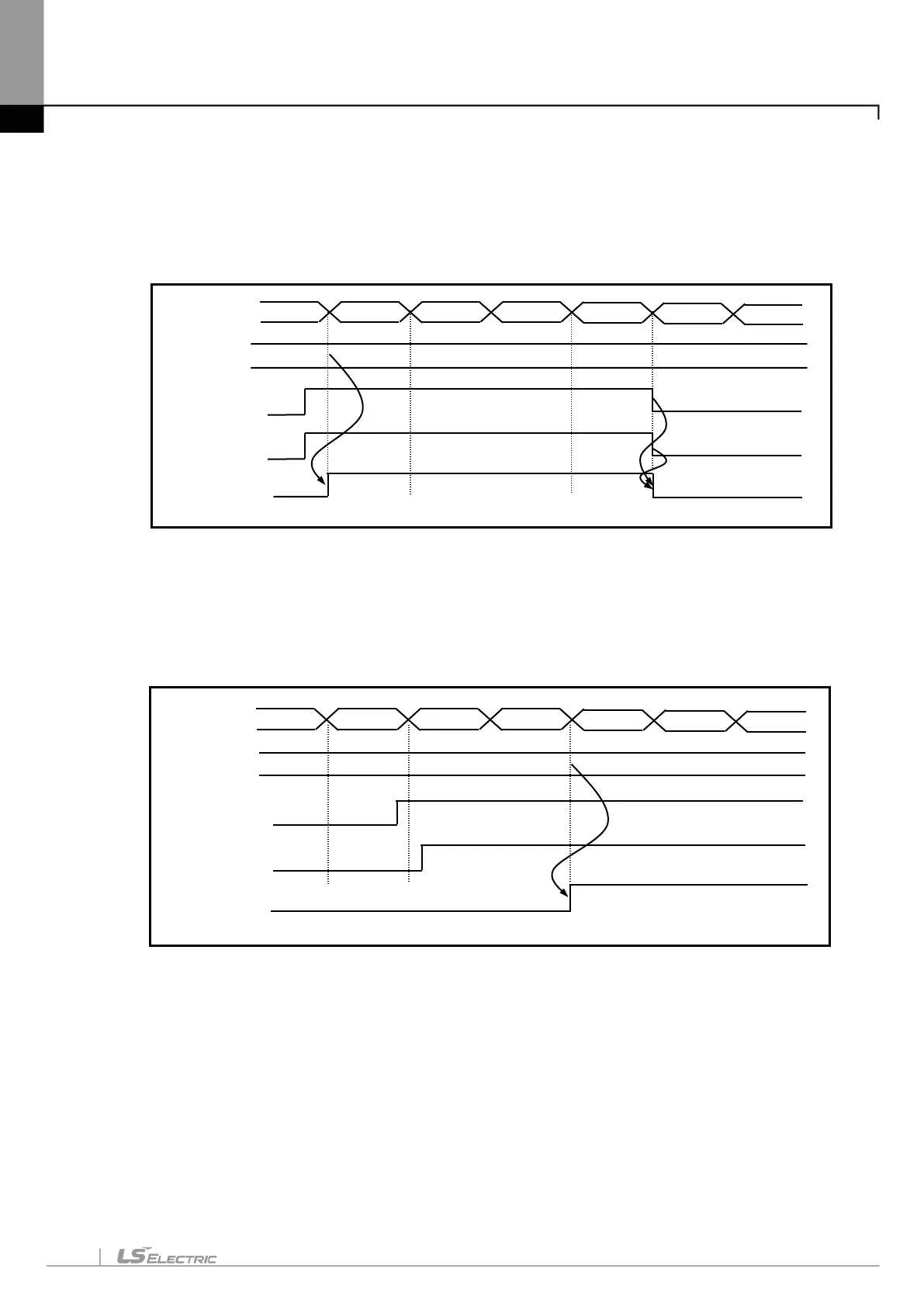

3) Mode 2 (Count value = Compared value)
If present count value is equal to the minimum set value of compared output 0, output is sent out. In
order to turn the output Off, Compared output Enable signal 0 or Compared Coincidence Output
Enable signal 0 is to be Off.
4)
Mode 3 (Count value ≥ Compared value)
If present count value is greater than or equal to the minimum set value of compared output 0,
output is sent out, and if count value decreases to be less than the minimum set value of
compared output 0, output is not sent out.
123456
123457
123458
123459
123460
123461
123462
123457
Count value
Compared
output
0
Min. set value
External output
(
in case of designated output)
Compared O
utput 0
output signal
Compared O
utput 0
Enable
123456
123457
123458
123459
123460
123461
123462
123460
Count value
Compared
output
0
Min. set value
External output
(
in case of designated output)
Compared O
utput 0
output
signal
Compared O
utput 0
Enable
