3.7. LIGHT (1 or 2, depending of models)
XLR-3 connector for working lights with 12V-15V/5W. The working lights can be regulated using
a menu option in setup. Connection:
Pin 1: 0 VREF
Pin 2: 12 VDC
Pin 3: 0 VREF
Note: Working light level is controlled from the menu 32: SYSTEM, option LIGHT.

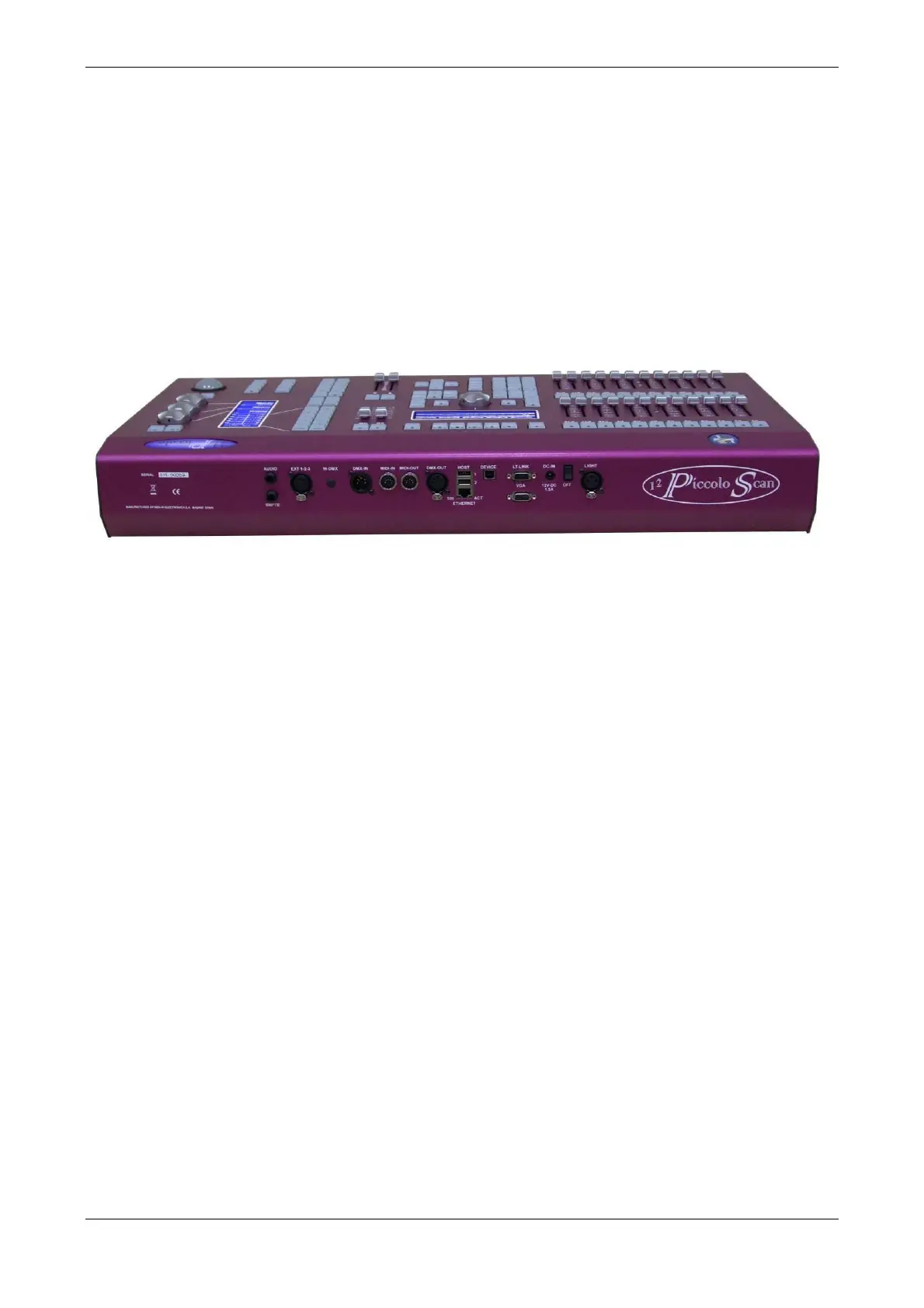

4. EXTRA CONECTIONS FOR PICCOLO SCAN MODELS
4.1. EXTERNAL TRIGGER
Input for 3 external triggers. Connector: XLR-4 female. Code:
1 – Ext-1
2 – Ext-2
3 – Ext-3
4 – Common
 Notes:
Ext: Only is necessary to connect the external signal (ext-1, ext-2 or ext-3) with the common
signal, using, in example, a press button.
These inputs are configured from MENU 22: Ext & Sound (See page 63, MULTIMEDIA)
4.2. SMPTE
Stereo jack for 1Vpp SMPTE signals. The SMPTE input responds to the formats: 24, 25, 30 & 30
drop frame without adjusts. Code:
1 – 0 V ref. or SMPTE - {jack body}
2 – NC
3 – SMPTE + {jack live point}
4.3. AUDIO
Stereo jack for 1Vpp audio signals. The signal is computed like mono signal. Code:
1 – 0 V ref. {jack body}
2 – N.C.
3 – Signal (1Vpp) {jack live point}
