Piccolo 16 from 82
www.lt-light.com

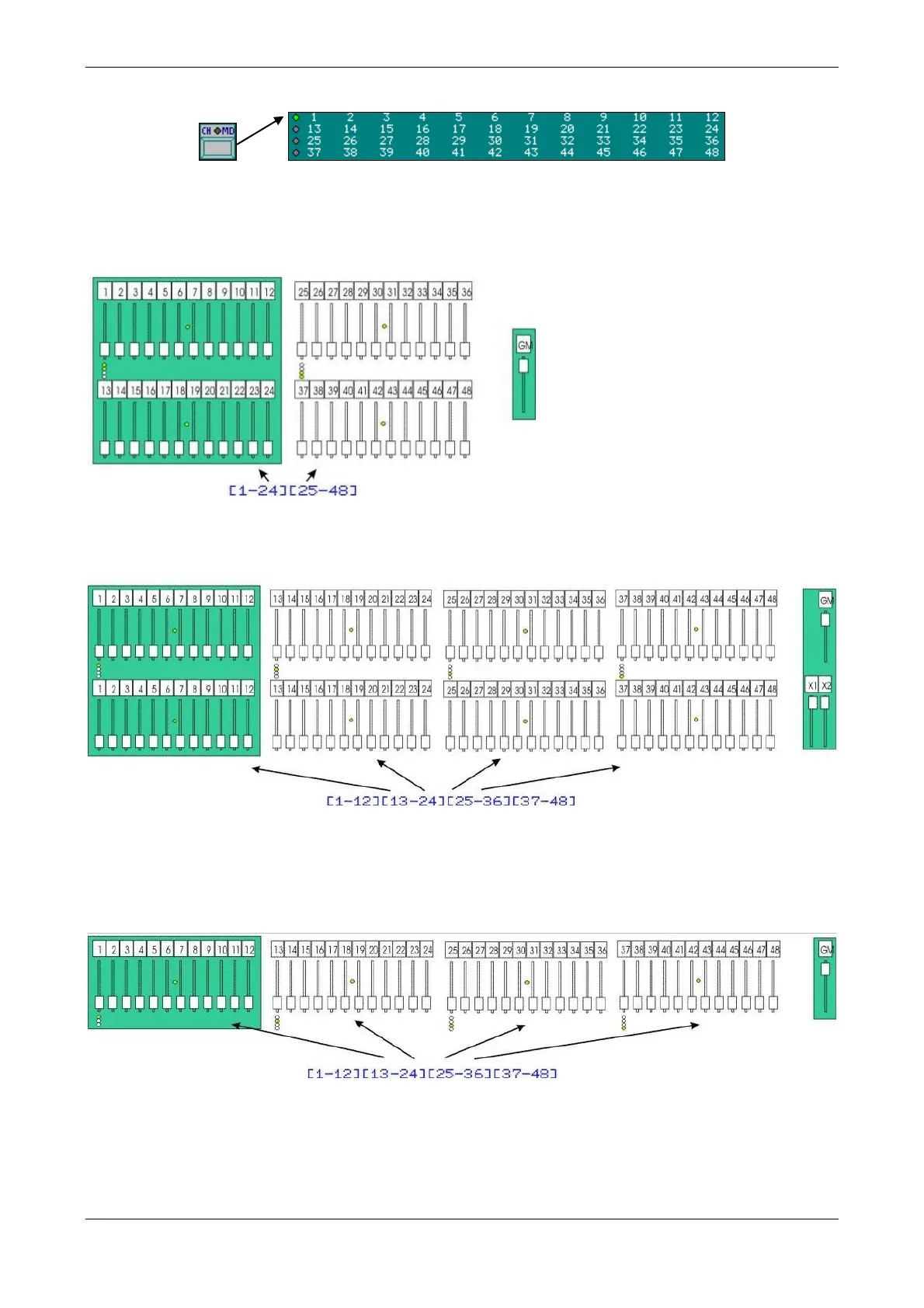

To clarify modes & banks see next drawings (example for PICCOLO 12/48):
Channel control in SINGLE mode:
C LED’s (in the middle of the fader group) are lit in green.
Channel control in DOUBLE mode:
C LED’s (in the middle of the fader group) are lit in green.
Channel control in THEATRE & MANUAL mode:
C LED’s (in the middle of the upper faders) are lit in green. S LEDs are lit in red.
