EIV 0007
EURO 9A

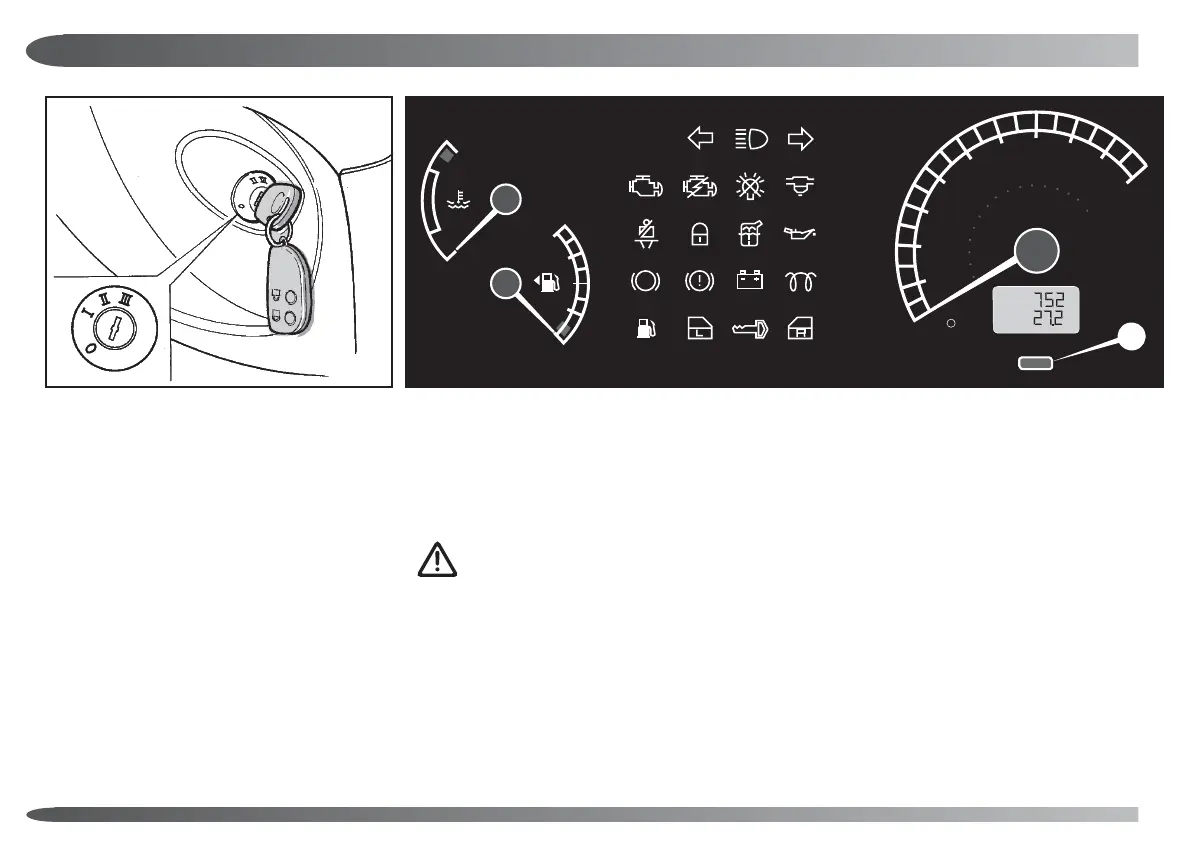

STEERING LOCK, IGNITION AND STARTER
SWITCH
The starter switch has four positions:
O Off - the key may only be inserted or
withdrawn in the 'O' position. Withdrawal of
the key will cause the steering to lock when
it is turned.
I Disengages the steering lock and allows the
following auxiliary equipment to be used:
Radio/CD audio system
Front and rear electric windows
Front wipers and washers
Rear wiper and washer
Front heater blower
Intercom system
II Switches on the complete electrical system
and energises engine glow plugs as
required.
III Engages starter motor (reached through
spring resistance with self return to position
II when released).
WARNING: The steering lock must be
disengaged before releasing the
handbrake and manoeuvring the
vehicle without using the engine. Never
push the vehicle without a qualified driver in
position and with the steering lock
disengaged. Remember that brake servo
assistance is not available unless the engine
is running. Free wheeling is not permitted.
INSTRUMENTS
Speedometer, odometer and trip meter
The speedometer indicates the vehicle speed in
miles or kilometres per hour. The odometer
indicates the total distance the vehicle has
travelled.
The trip meter records the distance of an
individual journey. Before each journey for which
a record is required, push and hold button (A)
until the trip has zeroed.
Should the odometer or trip meter display any
information other than mileage, an instrument
pack fault is indicated. Take your vehicle to an
authorised LTI dealer so that the fault can be
diagnosed.
Fuel Gauge
With the ignition switch on, the gauge indicates
the approximate amount of fuel in the tank. 'E'
indicates empty, 'F' indicates full.
