PASSENGER COMPARTMENT - EQUIPMENT
37
Rear door windows

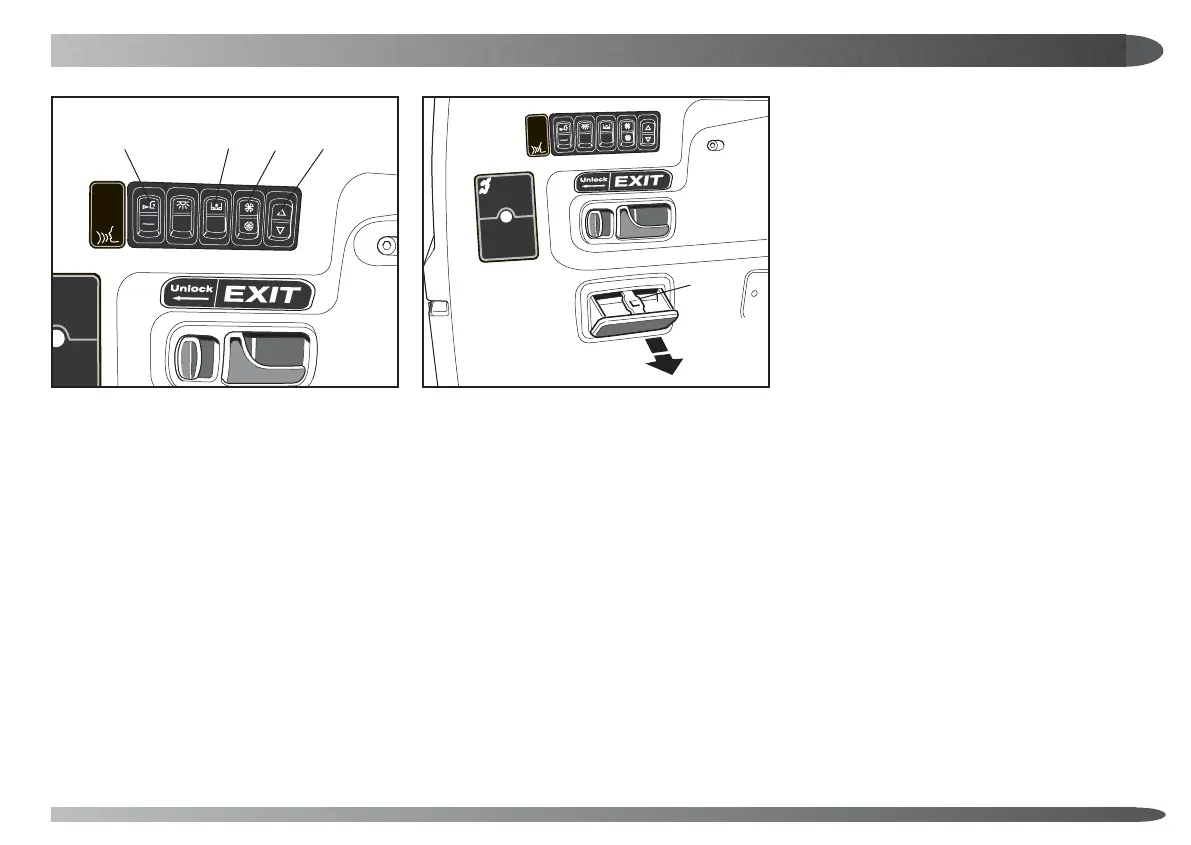

Rear door window lift switches are set into the
door trim (A). These switches operate with the
ignition key in positions I and II. Actuation of the
switch will cause the appropriate window to
open or close until the switch is released. The
rear windows will not operate when the centre
switch in the drivers console is in the off
position. However, as a “Driver Command
Feature” the windows will always remain under
the control of the switches in the drivers
compartment.
Should a window stop moving during operation,
release and retry the switch. If there is a fault or
overload detected the window will move 2cm in
the required direction then stop. Continue to
retry the switch until the window is closed.
Ashtrays
A pull out ashtray is incorporated into one rear
door trim. It may be removed for ash disposal
by pressing down the central stub plate (B)
before pulling the ashtray out from the door trim.
After cleaning, the bottom edge of the ashtray
should be engaged in the door trim before
rotating it upwards into position with the stub
plate depressed.
Heater controls
Rocker switches, set into the left hand door
trim, control the rear heater. Switch (C) turns the
heater blower motor on and off, while switch (D)
controls the heater speed (slow or fast). The
heater temperature is controlled by the driver's
heater control.
PASSENGER COMPARTMENT AIR
CONDITIONING (where fitted)
The rocker switches control cooled air output in
the same way as heated air. The cooled
temperature is controlled by the driver’s use of
the air conditioning and heater controls (see
page 25).
Intercom equipment
The passenger's operation of the intercom is
controlled from a switch (E) in each rear quarter
panel. Pressing the switch will activate the
intercom which will remain 'live' until the switch
is pressed again. An orange light in the switch
and red light on the top of the centre division
indicate when the intercom system is 'live'.
Microphones for the intercom system are
positioned in each rear quarter window trim.
EIV 0024
EIV 0023
A
B
CDE
