DRIVER’S COMPARTMENT -
HEATER AND AIR CONDITIONING
25
Temperature control dial (F)
Turn the control clockwise from its blue into its
red sections to provide increasing air
temperature. This control sets the temperature
level from both front and rear heaters.
The heating function only operates after engine
warm up.
Heater blower control dial (G)
Turn the control clockwise from the off
position to provide increasing air flow
(four speeds).
Heated rear screen and door
mirrors (H)
With the ignition switch on, operation of
this button against spring pressure will turn on
the rear screen and door mirror heating
elements. Further operation of the button will
turn the heating elements off. The button will
illuminate while the heating elements are on.
Note: The heating elements will switch off
automatically after approximately 7 minutes or
when the ignition is switched off or the engine is
stopped and restarted.
DRIVER'S AIR CONDITIONING (where fitted)
Air conditioning switch (J)
Start the engine, move the blower motor
control to the desired position and push
the air conditioning switch
(J) to turn the air conditioning system on; the air
conditioning indicator light in the switch will then
come on.
Push the switch again to turn the air
conditioning system off. The blower motor
speed selected will control the amount of cool
air available.
For maximum cooling the blower should be set
to its maximum speed, the temperature control
turned fully anti-clockwise and the air circulation
button (K) set to recirculate the air in the vehicle.
The temperature of the incoming air may be
raised by rotating the heater temperature
control.
Note: The air conditioning system will not
operate with the heater blower motor control in
the off 'O' position.
COMBINED DRIVER’S AND PASSENGER
COMPARTMENT AIR CONDITIONING
(where fitted)
This is operated by the same switch as the
driver’s air conditioning and no separate
controls are fitted. The rear air conditioning
output is through the passenger compartment
heater vents (see page 36).
Air recirculation button (K)
When this button is pressed interior air is
recirculated within the driver's
compartment and the button will illuminate.
Use this position for rapid warm up from cold (or
for quick cooling when air-conditioning is fitted),
when driving on a dusty road or to avoid
excessive traffic fumes.
Pressing the button again will cause outside air
to be drawn into to the driver’s compartment.
Use this position for normal heating and
ventilation.
The recirculation function will self cancel at next
ignition on.
CAUTION: Do not use the
'recirculated air ' position for extended
periods as this may cause the interior
air to become stale and the windows to mist
up.

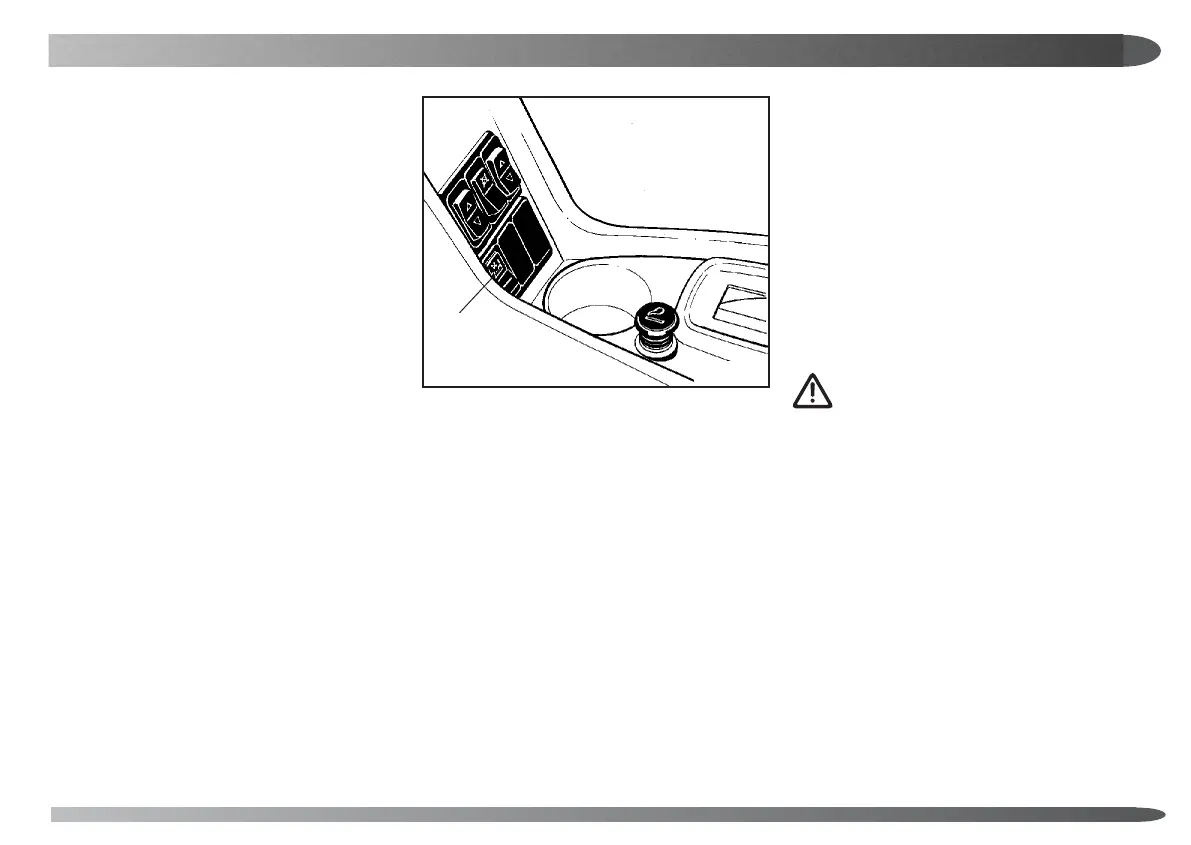

Passenger compartment
Air is directed through a separate rear heater
into the passenger compartment . An override
switch (L) in the centre console and behind the
gear lever allows the driver to switch the
passenger heater blower on or off. The
temperature control dial on the fascia also
controls the temperature of the rear heater
output.
Passenger compartment heater controls are
detailed on page 37.
