MAINTENANCE REQUIREMENTS
63
The washer jets (C) may be adjusted by
inserting a thin needle into the washer orifice so
that the jet may be swivelled into the required
position. The windscreen washer jets should hit
the windscreen at the highest point of the
windscreen wiper blade arc.
Rear wiper arm
The arm may be replaced by following the same
procedure as the front wipers. When parked on
a wet screen, the wiper arm should be
positioned horizontal and parallel with the lower
edge of the rear window.
Windscreen washers
The reservoir for the front and rear washers is
situated inside the right hand front wing.
Remove the cap (D) as required to replenish
the washer fluid. To obtain the best results,
always use screen washer additive mixed with
clean tap water to the concentration
recommended by the additive manufacturer.
CAUTION: Never use antifreeze solution in
the windscreen washer system.
Bottle capacity 3.8l (indicated by ‘max’
line on bottle neck). The low level warning light
will illuminate when a level of 1.4l remains.
WARE 80
C
A
B
EURO 45
M
A
X
D
EURO 45

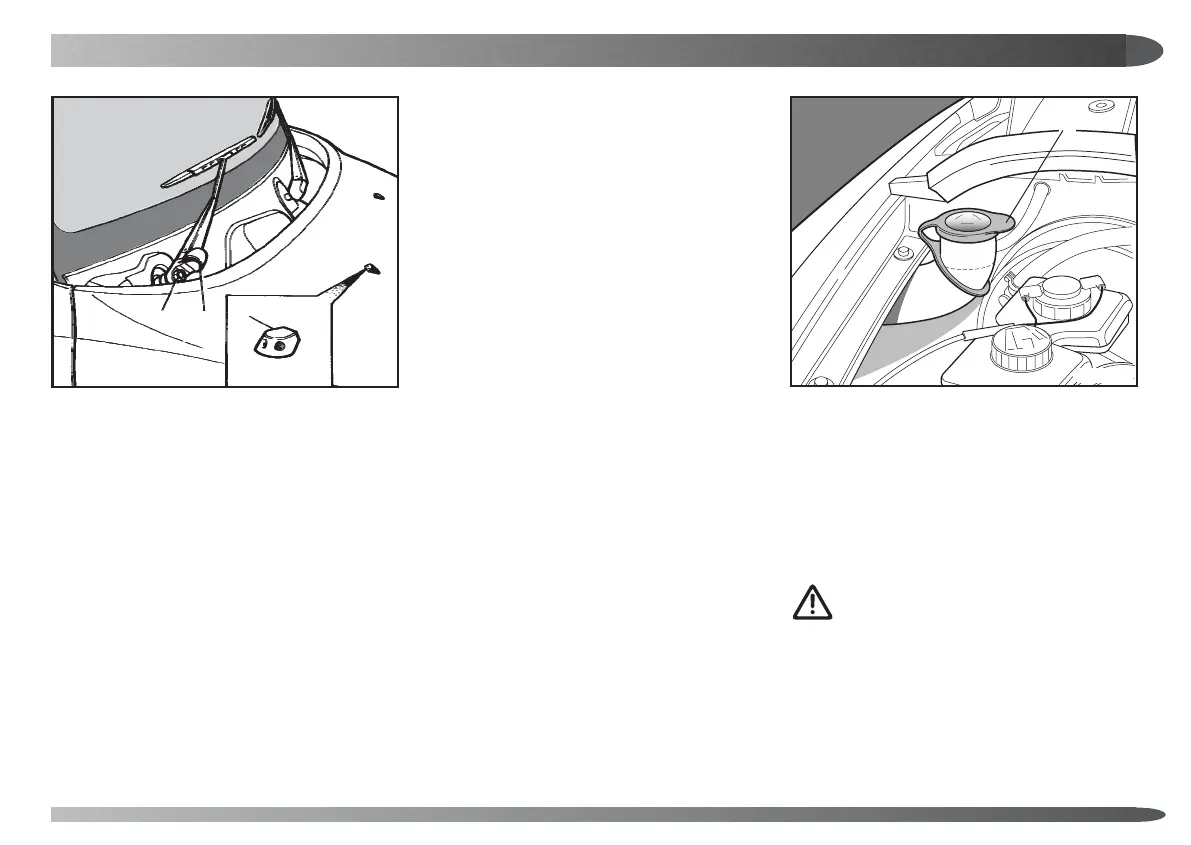

Front wipers arms
The front wiper arms should be positioned so
that in the parked position the blades lie
horizontal and parallel with the lower edge of the
windscreen. If required, the arms may be
repositioned or replaced by pulling back the
spindle covers (A) and undoing the retaining
nuts (B) after which the arms may be eased off
their spindles.
Note: The position of the wiper arms should
only be altered when the wipers have first been
'parked' on a wet screen and the wiper motor
and ignition have been switched off.
When replacing the arms it is essential to
position them on the splined spindles so that
they lie in their correct position on the
windscreen. Do not overtighten the retaining
nuts and replace the spindle covers.
