DRIVER’S COMPARTMENT -
HEATER AND AIR CONDITIONING
24
Temperature controlled or chilled air
(where air conditioning is fitted) is
directed from the footwell outlets,
de-mister nozzles and fascia vents.
Temperature controlled or chilled air
(where air conditioning is fitted) is
directed from the de-mister nozzles.
Maximum defrost is achieved with
the fascia vents closed and the air
recirculation control button (J)
switched on.
Air distribution control (E)
Temperature controlled or chilled air
(where air conditioning is fitted) is
directed from the fascia mounted
vents.
Temperature controlled or chilled air
(where air conditioning is fitted) is
directed from the fascia mounted
and footwell vents.
Temperature controlled or chilled air
(where air conditioning is fitted) is
directed from the footwell outlets
fascia vents and de-mister nozzles.
A
B
E F G
H
J
EIV 0013
EIV 0014

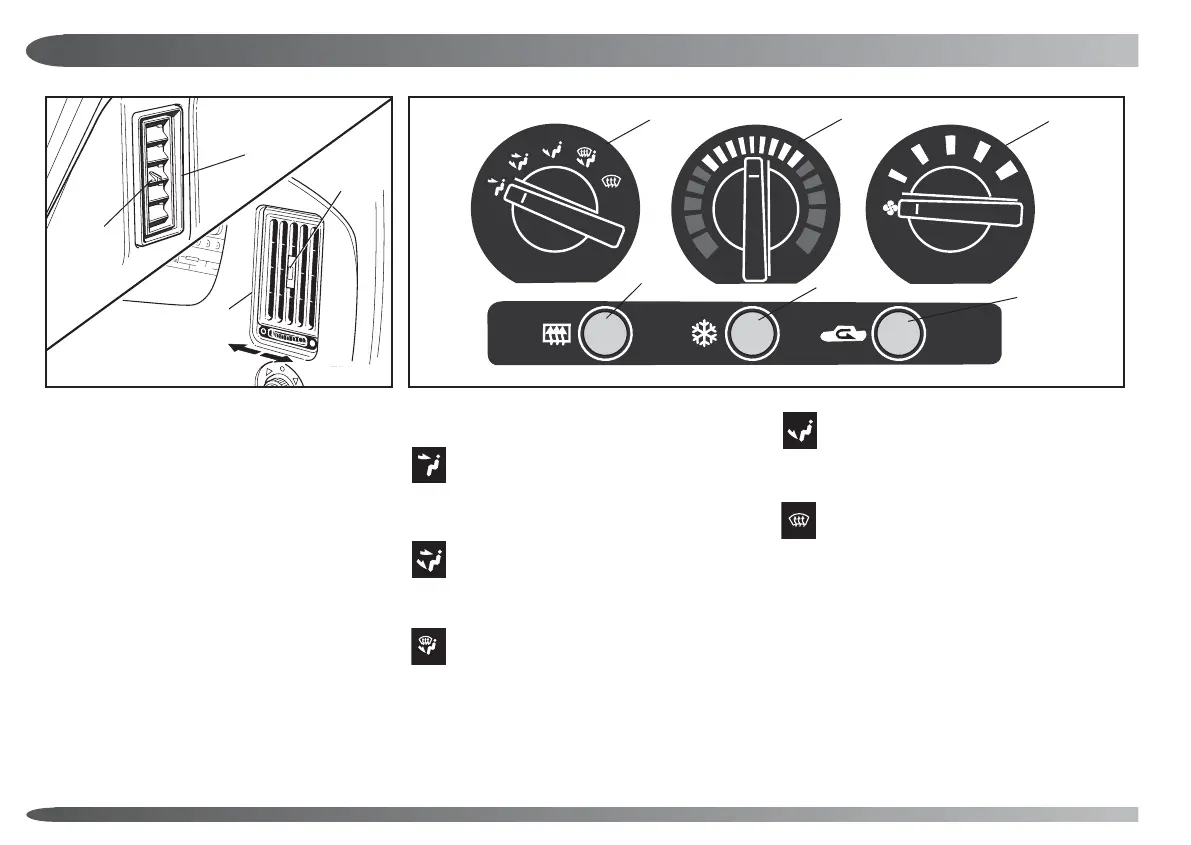

HEATER AND AIR CONDITIONING CONTROLS
Fascia air vents
Air from the heater system flows through
demister nozzles at the base of the windscreen,
outlets in each footwell, and four adjustable
fascia mounted vents (A) and (C). Open the
adjustable vents (A) by moving the knurled
wheel to the 'O' position, close the vent by
moving the knurled wheel to '●'. Direct the air
flow by moving the control (B).
Open the adjustable vent (C) by moving the vent
blades (D) upwards, close the vent by moving
the vent blades downwards. Direct the air flow
by moving the vent blades (D).
Note: To ensure the heater operates effectively,
always clear any accumulated ice and snow
from the windscreen wipers and the air inlet in
front of the windscreen before driving the vehicle.
C
D
K
