REPLACEMENT OF BULBS AND FUSES
66

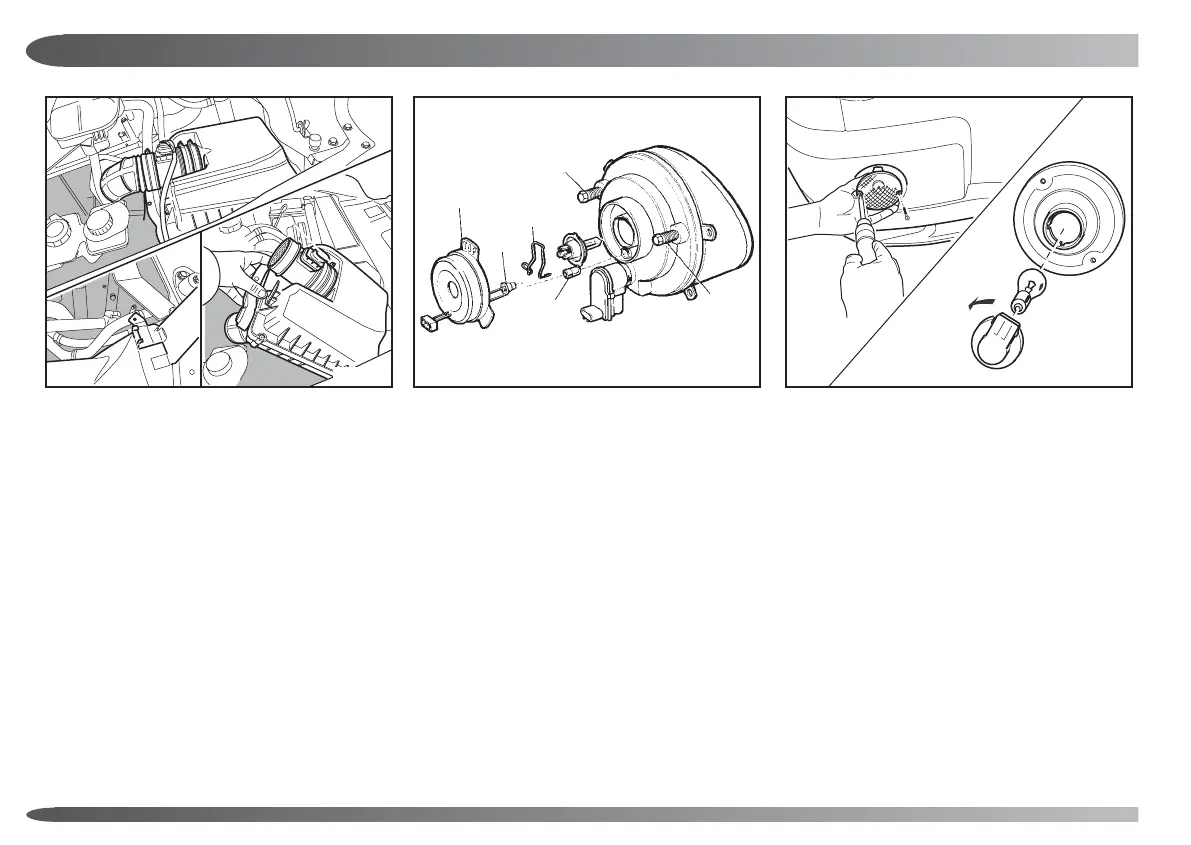

Headlight and side light bulbs
To replace the offside headlight and side light
bulbs it is necessary to first remove the air
cleaner filter housing.
The headlamp bulbs are reached from within the
engine compartment. Pull the headlamp bulb
connector from the back of the headlight unit
and carefully ease back the rubber seal (A) from
the rear of the lamp and along the side lamp
lead. Press in the ‘legs’ of the headlamp bulb
retaining spring (B) to release the bulb.
Do not touch the glass of the new bulb (if
touched it should be cleaned with methylated
spirit before fitting).
Replace the bulb (it will fit only one way round)
and refit the retaining spring, positioning the
‘legs’ of the spring under the lugs of the
headlight bulb recess. Carefully slide the rubber
seal down the side light lead and replace it in
position on the headlight body.
The headlights should normally be aligned and
set 0.75
0
below horizontal by your Dealer with
the headlamp height adjustment switch set at its
highest position. Vertical and horizontal
adjustment is achieved by means of the screws
(C) and (D).
A
WARE 85A
F
B
C
D
E
The side light bulbs (E) are incorporated into the
headlights and may be replaced by initially
following the procedure for headlight bulb
replacement. When the rear seal has been
pulled back, pull the side lamp holder (F) from
its socket in the rear of the light unit. The bulb is
a bayonet fitting in the bulb holder.
Front Indicators
The bulb holder is reached by removing the
lamp from the front bumper by removing the
two securing screws. Turn the bulb holder
anti-clockwise to remove it from the back of the
lamp. The bulb is a bayonet fitting in the holder.
EIV 0041
